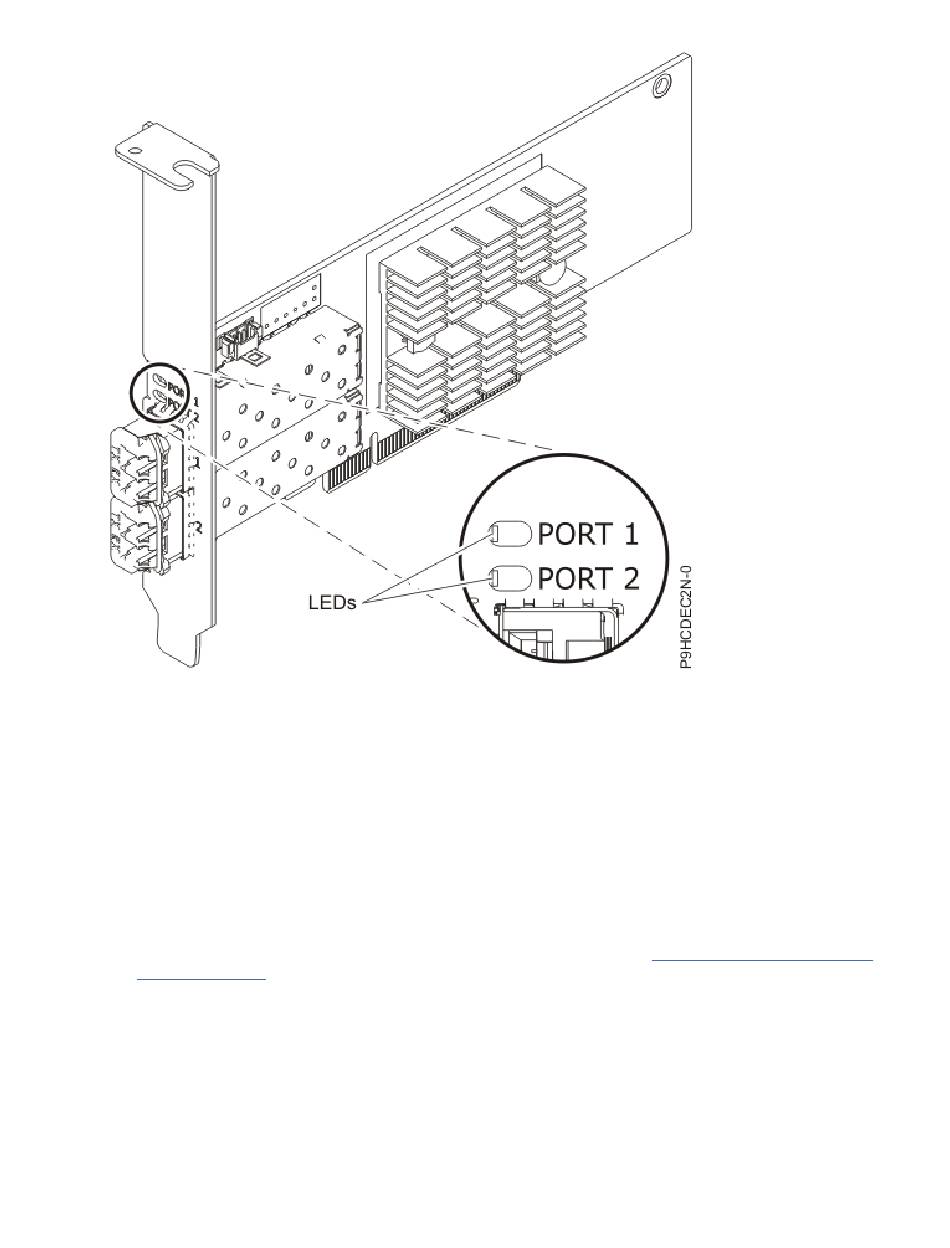

Figure 13. PCIe3 2-Port 10 GbE NIC and RoCE SR adapter (FC EC2N and FC EL54)
Specifications
Item
Description
Adapter FRU number
00RX875 (Designed to comply with RoHS requirement)
Low-profile tailstock: 00RX872
I/O bus architecture
PCIe3 x8
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules
and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/
p9eab_mtm_pciplacement.htm) and select the system you are working on.
Voltage
3.3 V
Form factor
Short
Cables
Supports standard 10-Gb SR optical cabling and up to 300 m (984.25 ft) cable length.
76 Power Systems: Managing PCIe adapters
