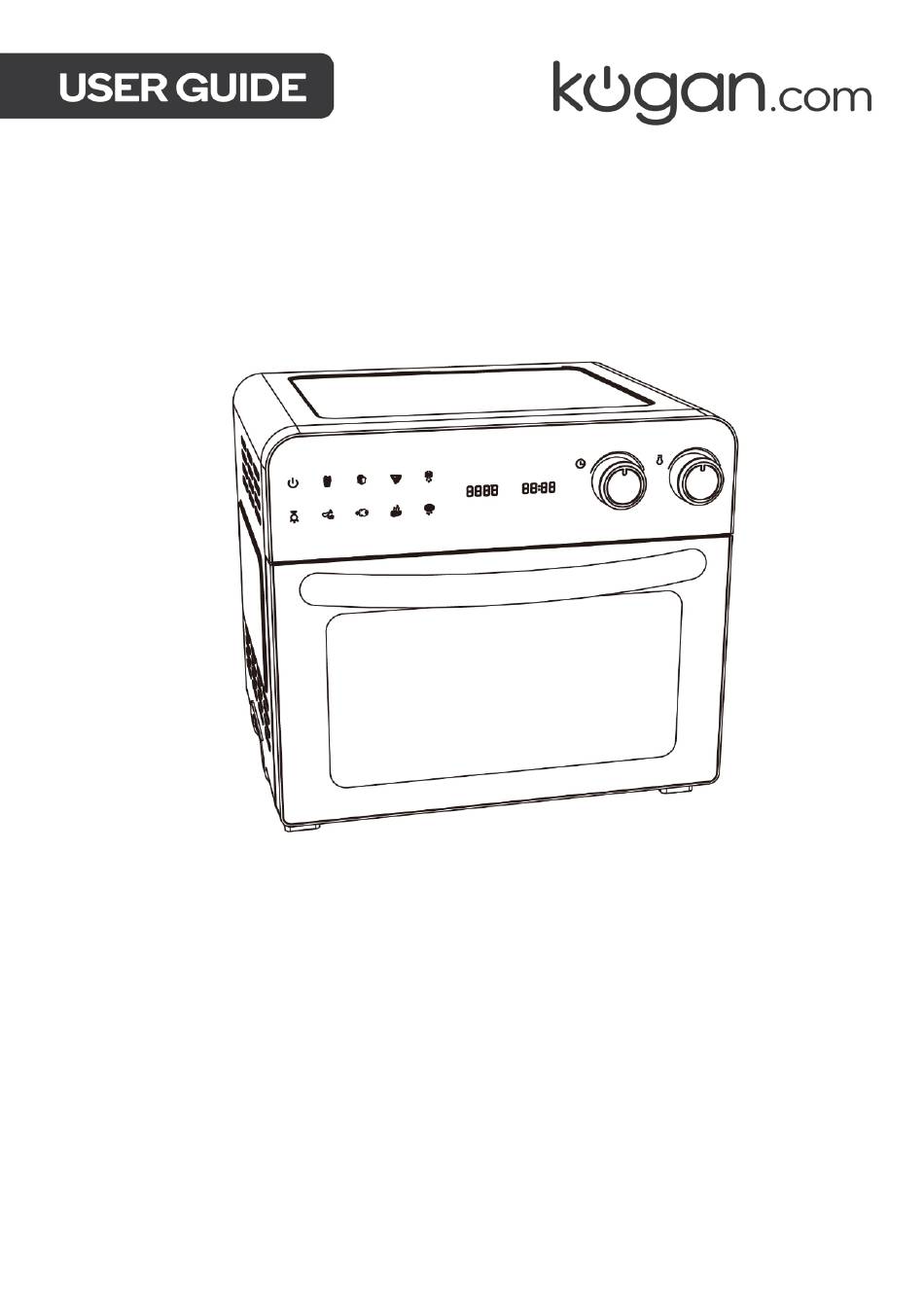

- Page 1 23L DIGITAL AIR FRYER OVEN (1700W, BLACK) KA23LDGFRYA...
-
Page 3: Safety And Warnings
Contact kogan.com for examination, repair, or adjustment. • The use of accessory attachments not recommended by kogan.com may cause injury. • Do not use outdoors. - Page 4 • Do not cover the crumb tray or any part of the oven with metal foil. This will cause overheating of the oven. • Oversize foods, metal foil packages and utensils must not be inserted into the appliance, as they may present a risk of fire or electric shock. •...
- Page 5 OVERVIEW Rotisserie spit assembly Spit removal tool Wire rack Removable crumb tray Baking pan Air fryer oven Air fryer basket Rolling cage...
- Page 6 A: Rotisserie spit assembly (shaft, forks & set screws) Used for roasts and whole chickens. Force the shaft lengthwise through the meat so that it is centred on the shaft. Slide the forks onto the shaft from either end into the meat, and then lock them in place with the set screws, aligning them with the indentations on the shaft.
- Page 7 Functions 1. On/Off Icon Use to start or stop the oven after setting a function. 6. Oven light Press this icon to turn the oven light on or off. 11. Temperature display Digital display for the operating temperature. 12. Time display Digital display for the operating time.
- Page 8 Program overview: Temperature Time Number Function Icon Fan speed (°C) (mins) Fries high Toast Pizza Warm Air roast high Rotisseries Air broil Dehydrate...
-
Page 9: Operation
OPERATION Program instructions Functions Fries This function combines intense heat and maximised airflow to cook foods crispy and brown. Rotisseries Heats food with 4 top elements on and low fan speed, cooking while the rotisserie spit rotates your chicken or roast. Keeps food crispy on the outside, juicy on the inside and evenly cooked. - Page 10 Oven racks Racks have 3 rack positions, top, middle, and bottom position. Top position Middle position Bottom position Before first use • Unpack the appliance and remove all packaging materials. Clean the appliance according to the Cleaning and Care section of this manual. •...
- Page 11 Operating your oven Note: Under each function mode, the time and temperature can be adjusted as required. Turn the time/temperature dials on the top right of the display window to adjust the d i d ti Before using any of the pre-set functions on the unit: •...
- Page 12 Air roast Place the baking pan in the middle position of the oven Connect the appliance to power, then press the air roast icon to select this function. Under this mode, the time, temperature, and fan speed display as below. Function Icon Temperature (°C)
- Page 13 Air broil Place the baking pan in the middle position of the oven. Connect the appliance to power, then press the air broil icon to select this function. Under this mode, the time, temperature, and fan speed display as below. Function Icon Temperature (°C)
- Page 14 Rotisseries Place one rotisserie fork on the end of the rotisserie shaft, with the fork facing the centre, and tighten the rotisserie screw. Slide the solid end of the rotisserie shaft through the centre of the food to be cooked. Place the other fork on the other end of the shaft with the fork facing the food to be cooked.
- Page 15 Trussing Poultry Place the poultry on a cutting board breast up. Place twine under the wings Cross the twine. then pulls the twine evenly between legs and breast. Wrap the twine up and around legs, Run the twine under the end of the legs. brings them together then tie the twine into a knot and bow to secure.
-
Page 16: Cleaning And Care
CLEANING & CARE • Unplug the appliance and allow it to completely cool before cleaning. Do not use abrasive cleaners, as they will damage the finish. Simply wipe the exterior with a clean, damp cloth and dry thoroughly. Apply the cleaning agent to a cloth, not directly onto the surface of the appliance. - Page 17 NOTES...
- Page 18 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
