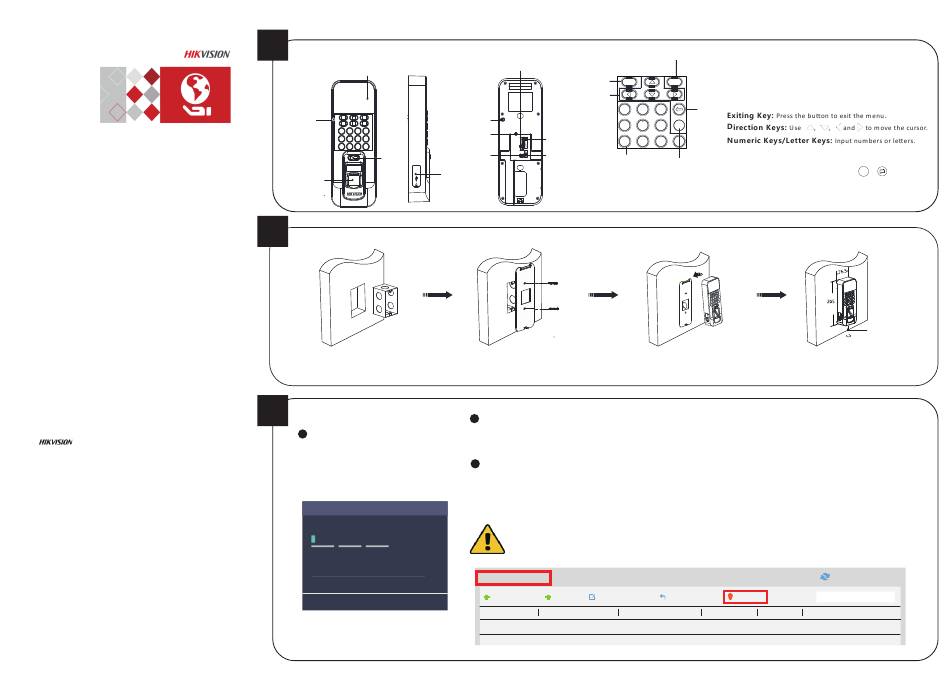

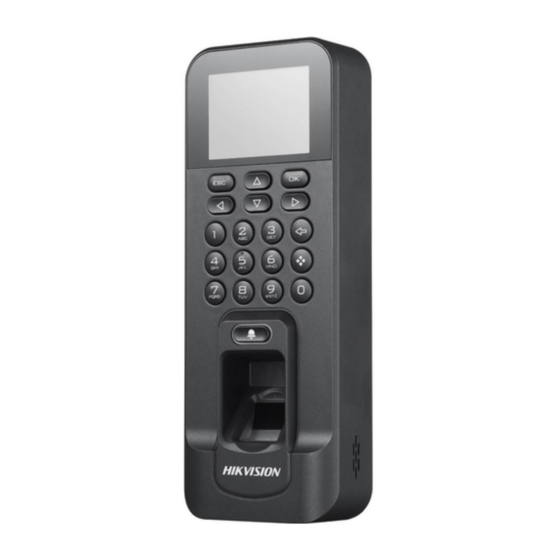

Appearance
2.4-inch LCD Display Screen Indicator
Keypad
Door Bell
Button
USB Interface/
Fingerprint
Reading Module
(Inside of the Cover)
2
Installation
1. Install 120 gang box into the wall.
3
Activation
Activating via Device
Power on and wire the network cable after installation.
You should activate the device before the first login.
After powering on, the interface will be displayed as
follows.
You can create the device password and confirm the
password to activate.
Device Activation
Password (8-16 Digits/Letters)
Confirm Password (8-16 Digits/Letters)
[OK]Activate
The default values of the terminal are as follows:
• The default IP address: 192.0.0.64
• The default port No.: 8000
• The default user name: admin
RS-485/Wiegand Wiring Terminal
Exiting Key
Direction Keys
1
Tamper-proof
Button
4
GHI
Ethernet Port
Door Lock
7
Wiring Terminal
PQRS
12V
Alarm
Power Interface
Wiring Terminal
Numeric Keys/
Letter Keys
Reset Button
Note:
for the device via the App on the phone. Press Key 6 again to exit the mode. (The model with "-1"
does not support One-Touch Wi-Fi Settings mode.)
2. Route the cables through the cable hole of
the mounting plate.
3. Secure the device mounting plate on the gang
box with two screws. (Supplied).
Activating via SADP
1. Download SADP Software: Get the SADP software from the supplied disk or the official website. Install and run the software.
2. Activate Device: Check the inactive device from the device list. Create a password in the right side of the interface and confirm the password.
3. Edit Device IP Address: Check the device and manually edit the device IP address, Port No., Subnet Mask, Gateway, etc.
Activating via Client Software
1. Get the client software from the supplied disk or the official website. Install and run the client software.
2. Click Device Management to enter the Device Management interface.
3. Select an inactive device from the Online Device list. Click Activate to pop up the Activation interface.
4. Create a password and confirm the new password. Click OK to activate the device.
4. Click "Modify Netinfo" to set the device IP address, mask address, gateway address, and port No.
STRONG PASSWORD RECOMMENDED–
We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters,
lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your
password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
Online Devices (2)
Add to Client
Add All
Modify Netinfo
IP
Device Type
Firmware Version
xx.xx.xx.xx
xxxxxxxxxxxxx
xxxxxxxxxxxxx
xx.xx.xx.xx
xxxxxxxxxxxxx
xxxxxxxxxxxxx
Keypad Descriptions
OK Key
OK Key: Press to confirm operations. Press and hold the
key for 3s to login the main interface.
ESC
OK
Deleting Key:
1.Press to delete the letters or numbers one by one;
2.Long-press to clear all contents in the textbox;
2
3
Deleting
ABC
DEF
Key
5
6
EN
JKL
MNO
8
9
0
TUV
WXYZ
Editing Key: Press to enter the editing status. Shift among
numbers/lowercases, numbers/uppercases and symbols.
Editing Key
There are two kinds of editing key icons:
Long press Key 6 for 3s to enter One-Touch Wi-Fi Settings mode. You can set Wi-Fi parameters
4. Connect the corresponding cables.
5. Align the terminal with mounting plate. Push the
4. Tighten the screws to fix the terminal on the
terminal in the mounting plate from bottom up.
mounting plate and complete the installation.
Fasten the terminal with the buckles on the plate.
Activate
Reset Password
Security
Server Port
Inactivate
8000
Activate
8000
or
.
EN
Mounting Screw
Anticlockwise Rotation
Refresh Every 60s
Filter
Device Serial No.
XX-XXXXXX
XX-XXXXXX
Need help?
