  • Page 1 DS-K1F600U-D6E Series Enrollment Station User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K1F600U-D6E Series Enrollment Station User Manual Available Model Product Name Model Description Enrollment Station DS-K1F600U-D6E Supports enroll face and card DS-K1F600U-D6E-F Supports enroll face, fingerprint, and card No. Use only power supplies listed in the user instructions: Model Manufacturer Standard...
  • Page 5 DS-K1F600U-D6E Series Enrollment Station User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1F600U-D6E Series Enrollment Station User Manual EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
  • Page 7 DS-K1F600U-D6E Series Enrollment Station User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K1F600U-D6E Series Enrollment Station User Manual • If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center. • Do not ingest battery, Chemical Burn Hazard.
  • Page 9 DS-K1F600U-D6E Series Enrollment Station User Manual • Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.

  • Page 10: Table Of Contents

    DS-K1F600U-D6E Series Enrollment Station User Manual Contents Chapter 1 Overview ........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Activation ........................4 3.1 Activate via Device ......................... 4 3.2 Activate via SADP ........................5 Chapter 4 Select Language ......................6 Chapter 5 Enroll Administrator's Face ..................
  • Page 11 DS-K1F600U-D6E Series Enrollment Station User Manual 8.5.4 Other Settings ......................28 8.6 Set Biometric Parameters ....................29 8.7 Data Management ....................... 30 8.7.1 Import User ......................... 30 8.7.2 Export Enrolled Data ....................31 8.7.3 Clear Enrolled Data ..................... 32 8.8 System Maintenance ......................32 Appendix A.

  • Page 12: Chapter 1 Overview

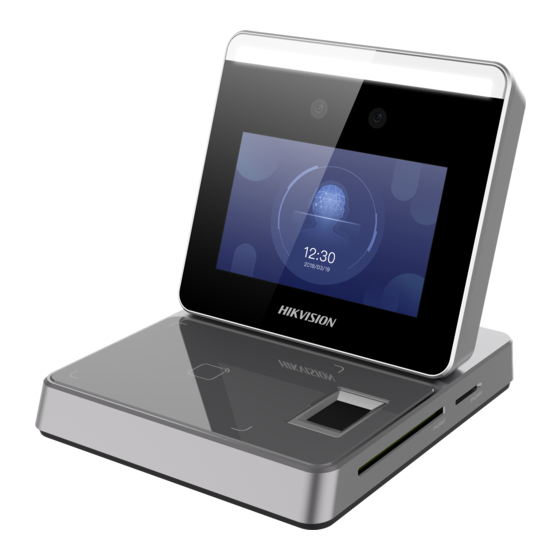

    DS-K1F600U-D6E Series Enrollment Station User Manual Chapter 1 Overview Introduction Figure 1-1 Product Appearance The enrollment station can realize multiple user information's enrollment on one device. It supports enrolling face picture, fingerprint (parts of the device model support), 13.56 MHz IC card No., and 125KHz ID card No.

  • Page 13: Chapter 2 Appearance

    DS-K1F600U-D6E Series Enrollment Station User Manual Chapter 2 Appearance Figure 2-1 Appearance Table 2-1 Appearance Description Description PSAM3 Card Slot (Reserved) PSAM4 Card Slot (Reserved) Screen Camera Supplement Light Camera USB Interface Note For data import and export. Network Interface...
  • Page 14 DS-K1F600U-D6E Series Enrollment Station User Manual Description Note For data communication. PSAM Card Slot (Reserved) Debugging Port Note For debugging use only. PSAM Card Slot (Reserved) Fingerprint Module Note Parts of the device models support. Indicator Card Presenting Area...

  • Page 15: Chapter 3 Activation

    DS-K1F600U-D6E Series Enrollment Station User Manual Chapter 3 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.

  • Page 16: Activate Via Sadp

    • Get the SADP software from the supplied disk or the official website http:// www.hikvision.com/en/ , and install the SADP according to the prompts. • The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 17: Chapter 4 Select Language

    DS-K1F600U-D6E Series Enrollment Station User Manual Chapter 4 Select Language After activation, you should select a language. Steps 1. After activation, tap OK on the pop-up window. You will enter the language page. Figure 4-1 Select Language 2. Select a language according to the actual needs.

  • Page 18: Chapter 5 Enroll Administrator's Face

    DS-K1F600U-D6E Series Enrollment Station User Manual Chapter 5 Enroll Administrator's Face After selecting language, you should enroll an administrator's face for further operation. The administrator can login the device backend to manage and configure data. Steps 1. After selecting the language, tap Next on the pop-up window. You will enter the face enrollment page.

  • Page 19: Chapter 6 Enroll Via Device

    DS-K1F600U-D6E Series Enrollment Station User Manual Chapter 6 Enroll via Device 6.1 Enroll Face via Device Before You Start • Power on and activate the device. For details about the activation, see Activation . • Enable Face Required in Set Enrollment Rule after logging in the device backend.

  • Page 20: Enroll Fingerprint Via Device

    DS-K1F600U-D6E Series Enrollment Station User Manual Note For details about face recognition, see Tips When Collecting/Comparing Face Picture . 5. Optional: Tap to edit the employee ID. 6.2 Enroll Fingerprint via Device Before You Start • Power on and activate the device. For details about the activation, see Activation .

  • Page 21: Enroll Card Via Device

    DS-K1F600U-D6E Series Enrollment Station User Manual 3) Follow the instructions and press a finger on the fingerprint module. If the fingerprint is enrolled, the enrolled fingerprint on Select Finger page will turn to blue. 4) Optional: Tap the enrolled fingerprint (in blue) and tap OK in the dialogue box to clear the enrolled data and enroll a new fingerprint.
  • Page 22 DS-K1F600U-D6E Series Enrollment Station User Manual Note The ID can only be set as the original length. 4. Optional: Tap to edit the employee ID.

  • Page 23: Chapter 7 Enroll Via Client Software

    DS-K1F600U-D6E Series Enrollment Station User Manual Chapter 7 Enroll via Client Software 7.1 Enroll Face via Client Software Before You Start • Download and install the client software on your computer before enrollment. • Power on and activate the device. For details about the activation, see Activation .
  • Page 24 DS-K1F600U-D6E Series Enrollment Station User Manual The added organizations will be displayed in the list on the left of the page. 5. Add person. 1) Select an organization from the list on the left. 2) Click Add on right panel.

  • Page 25: Enroll Fingerprint Via Client Software

    DS-K1F600U-D6E Series Enrollment Station User Manual 1) Enable Verify by Device to check whether the device managed in the client can recognize the face in the photo. 2) Select Enrollment Station from the drop-down list. 3) Click Login and set the enrollment station's IP address, port No., user name and password.
  • Page 26 DS-K1F600U-D6E Series Enrollment Station User Manual 2) Click Add on the upper left of the page. Figure 7-5 Add Organization 3) Create an organization name. Note Up to 10 levels of organizations can be added. The added organizations will be displayed in the list on the left of the page.
  • Page 27 DS-K1F600U-D6E Series Enrollment Station User Manual Figure 7-6 Add Person Note Once the person information is expired, the credentials and access control settings of the person will be invalid and the person will have no authorization to access the doors.

  • Page 28: Enroll Card Via Client Software

    DS-K1F600U-D6E Series Enrollment Station User Manual 1) Select Enrollment Station as the fingerprint recorder from the drop-down list. 2) Click Login and set the enrollment station's user name and password. 3) Click OK. - If the enrollment station is connected with the platform via the network, click Remote 1) Select Enrollment Station as the fingerprint recorder from the drop-down list.
  • Page 29 DS-K1F600U-D6E Series Enrollment Station User Manual Figure 7-9 Add Organization 3) Create an organization name. Note Up to 10 levels of organizations can be added. The added organizations will be displayed in the list on the left of the page.
  • Page 30 DS-K1F600U-D6E Series Enrollment Station User Manual Figure 7-10 Add Person Note Once the person information is expired, the credentials and access control settings of the person will be invalid and the person will have no authorization to access the doors.

  • Page 31: Get Person Information From Enrollment Station

    DS-K1F600U-D6E Series Enrollment Station User Manual The card is used for opening doors for normal usage. Duress Card When the person is under duress, he/she can swipe the duress card to open the door. The door will be unlocked and the client will receive a duress event to notify the security personnel.

  • Page 32: Import Person Information In Batch

    DS-K1F600U-D6E Series Enrollment Station User Manual 3) Set the enrollment station's IP address, port No., user name and password. 3) Click OK. 5. Click Get All or Get Partially. Get All Import all person's information from the device to the platform.

  • Page 33: Chapter 8 Basic Operation

    DS-K1F600U-D6E Series Enrollment Station User Manual Chapter 8 Basic Operation 8.1 Login by Administrator Login the device backend to set the device basic parameters. If an administrator is added to the device, you can login by verifying the administrator's permission.

  • Page 34: Add Administrator

    DS-K1F600U-D6E Series Enrollment Station User Manual 8.2 Add Administrator The administrator can login the device backend and configure the device parameters. Steps 1. Long tap on the initial page for 3 s and login the device home page. 2. Tap Admin to enter the Administrator page.

  • Page 35: Communication Settings

    DS-K1F600U-D6E Series Enrollment Station User Manual Note • By default, the system contains a super administrator (admin). You cannot edit its No., name, and type. and you cannot delete it. • The admin user has higher permission level than other administrators.

  • Page 36: Manage Enrollment

    DS-K1F600U-D6E Series Enrollment Station User Manual After enabling WLAN, you should select a Wi-Fi for connection. Select a Wi-Fi and enable DHCP and enter the Wi-Fi's password to connect. Tap to connect the Wi-Fi. Or disable the DHCP function, and enter the Wi-Fi's password, IP address, subnet mask, and gateway.

  • Page 37: Basic Settings

    DS-K1F600U-D6E Series Enrollment Station User Manual 8.5 Basic Settings 8.5.1 Set Time You can set the device time format and the current time. Long tap on the initial page for 3 s and login the device home page. Tap Basic → Time .

  • Page 38: Set Enrollment Rule

    DS-K1F600U-D6E Series Enrollment Station User Manual Note The available volume range is from 0 to 10. The larger the value, the louder the volume. 0 represents disable the voice prompt function. 8.5.3 Set Enrollment Rule Set the enrollment rules before data enrollment.

  • Page 39: Other Settings

    DS-K1F600U-D6E Series Enrollment Station User Manual Select Finger Set the enrolling fingers when enrolling a person's fingerprint. Card Number per User Set the maximum card number that a person can enroll. 8.5.4 Other Settings You can set the device white light brightness, IR light brightness, and video standard.

  • Page 40: Set Biometric Parameters

    DS-K1F600U-D6E Series Enrollment Station User Manual 30 frames per second. Suitable for the USA, Canada, Japan, Taiwan (China), Korea, the Philippines, etc. 8.6 Set Biometric Parameters You can customize the face parameters to improve the face recognition performance. The configurable parameters includes face anti-spoofing, liveness security level, pitch angle, yaw angle, pupillary distance, and WDR.

  • Page 41: Data Management

    DS-K1F600U-D6E Series Enrollment Station User Manual Parameter Description Pupillary Distance The minimum resolution between two pupils when starting face recognition. The actual resolution should be larger than the configured value. By default, the resolution is 40. It is suggested to enable the WDR function if installing the device outdoors.

  • Page 42: Export Enrolled Data

    DS-K1F600U-D6E Series Enrollment Station User Manual Note Make sure the edited file is saved in the corresponding folder named "DS-K1F600U-D6E", "DS- K1F600U-D6E-F", or "DS-K1F600U-D6E-IF" in the root directory of the USB flash drive. 5. Tap Import User. Note Up to 2000 users can be imported.

  • Page 43: Clear Enrolled Data

    DS-K1F600U-D6E Series Enrollment Station User Manual 8.7.3 Clear Enrolled Data Delete all enrolled data in the device, including all face pictures, fingerprints, card, etc. Long tap on the initial page for 3 s and login the home page. Tap Data.
  • Page 44 DS-K1F600U-D6E Series Enrollment Station User Manual Capacity You can view the number of administrator, user, face picture, card, and event. Note • Parts of the device models support displaying the fingerprint number. Refers to the actual page for details. • The capacity varies according to the configured enrollment rules. For details about setting enrollment rules, see Set Enrollment Rule .

  • Page 45: Appendix A. Tips When Collecting/Comparing Face Picture

    DS-K1F600U-D6E Series Enrollment Station User Manual Appendix A. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Expression • Keep your expression naturally when collecting or comparing face pictures, just like the expression in the picture below.

  • Page 46: Appendix B. Tips For Scanning Fingerprint

    DS-K1F600U-D6E Series Enrollment Station User Manual Appendix B. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 47 DS-K1F600U-D6E Series Enrollment Station User Manual Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods. If you have injuries on the scanned finger, the scanner may not recognize. You can change another...

  • Page 48: Appendix C. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure C-2 Device Command...
  • Page 49 UD21520B-A...
