DS-K1800 Series Card Readers Connect
Title:
to DS-K2800 Series Access Controllers
Product:
Access Control Device
DS-K1800 Series Card Readers Connect to DS-K2800

Preparation

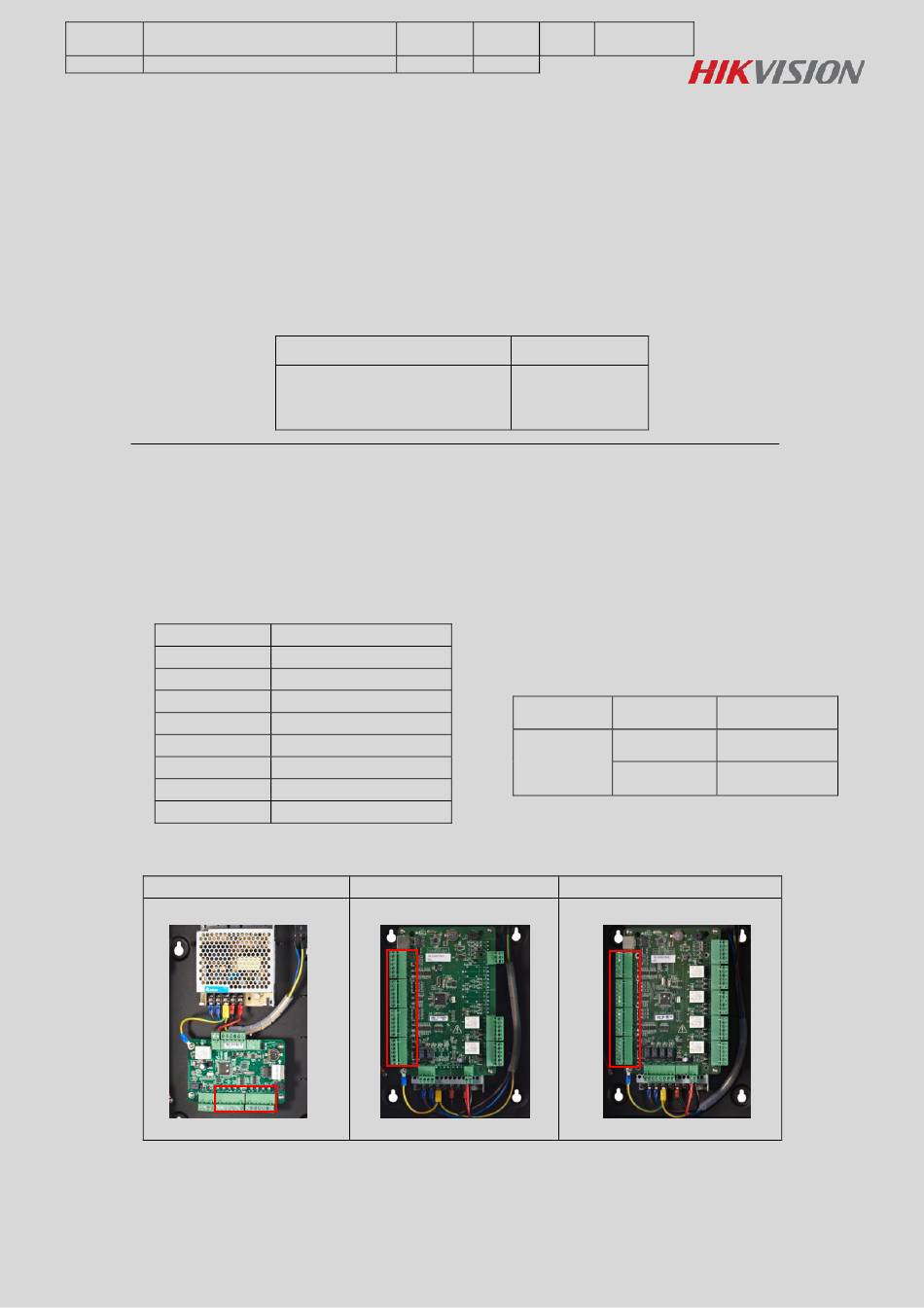

Connecting card reader to access controller is mainly applied to swiping card to open the door for entrring
or exiting. The models of card reader and access controller in this guide are as below:

Notice

1.
Please cut off power supply before wiring;
2.
DS-K1800 Series Card Readers support standard Wiegand 26/34 protocol , the details about
Wiegand interface about of card reader are as below;
Color
Red
Black
Green
White
Blue
Purple
Brown
Orange
3.
Correspondingly, there are wiegand interfaces in DS-K2800 series access controllers;
DS-K2601
Version:
Page:
Series Access Controllers
Card Reader
DS-K1801M/MK, DS-K1802M/MK,
DS-K1801E/EK, DS-K1802E/EK
Description
PWR(+12 VDC)
GND
Wiegand W0
Wiegand W1
Wiegand 26/34
Beep Control
OK
ERR
DS-K2602
v1.0
Date:
7/15/2017
1 of 5
Access Controller
Cable
Wiring mode
Grounded
Blue Wiegand
cable
Not Grounded
DS-K2604
Wiegand Mode
Wiegand 26
Wiegand 34
