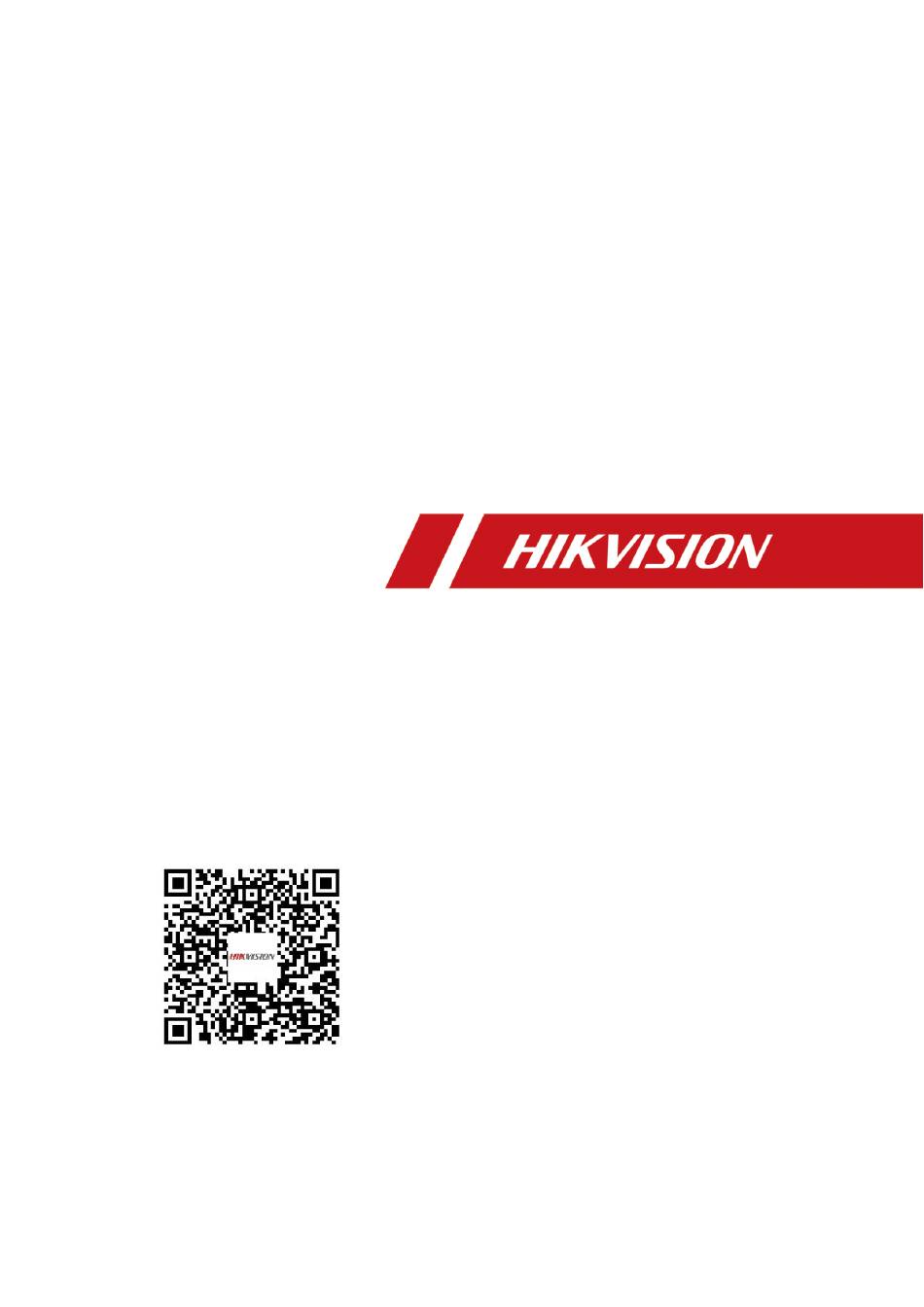

- Page 1 Entrance/Exit Station Quick Start Guide Scan the QR code for User Manual.
- Page 2 © 2019 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved. ALL RIGHTS RESERVED. This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as “Hikvision”), and it cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 Entrance/Exit Station Quick Start Guide INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
- Page 4 Entrance/Exit Station Quick Start Guide Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text.
- Page 5 Entrance/Exit Station Quick Start Guide Make sure the device is connected to the ground firmly. Transportation, Use, and Storage To avoid heat accumulation, good ventilation is required for a proper operating environment. Store the device in dry, well-ventilated, corrosive-gas-free, no direct sunlight, and no heating source environment.
-
Page 6: Table Of Contents
Entrance/Exit Station Quick Start Guide TABLE OF CONTENTS Chapter 1 Product Introduction ................6 1.1 Introduction ..................... 6 1.2 Overview ....................6 Chapter 2 Installation ..................9 2.1 Before You Start ..................9 2.1.1 Installation Environment ..............9 2.1.2 Lay Power Cord ................9 2.2 Install Station ................... -
Page 7: Chapter 1 Product Introduction
Entrance/Exit Station Quick Start Guide Chapter 1 Product Introduction 1.1 Introduction Entrance/Exit Station (hereinafter referred to as station) is used for data collection and management of entrance, exit, and parking lot. Through interaction with the software, the station can control the entrance/exit, manage the parking lot effectively, and charge parking fee. Peripheral devices such as capture camera, barrier gate, remote card reader, alarm device, etc. - Page 8 Entrance/Exit Station Quick Start Guide Figure 1-1 Entrance/Exit Station Appearance Table 1-1 Entrance/Exit Station Appearance Description No. Name Description Displays information such as prompt, parking charge, license plate number, etc. Reserved Reserved Press the button to take ticket when the vehicle enters the parking Taking ticket button lot.
- Page 9 Entrance/Exit Station Quick Start Guide No. Name Description For two-way audio with the management center. QR code scanning Scan the payment QR code on your mobile phone to pay for the area parking fee.
-
Page 10: Chapter 2 Installation
Entrance/Exit Station Quick Start Guide Chapter 2 Installation 2.1 Before You Start 2.1.1 Installation Environment Select the appropriate position for installing the station according to your actual requirement. Pay attention to the following tips. Select the horizontal ground for installation. ... - Page 11 Entrance/Exit Station Quick Start Guide Figure 2-1 Install Expansion Screws Step 3 Unlock the station back cover with key, and lift the cover softly to open it. Figure 2-2 Open Back Cover Step 4 Adjust the horizontal and vertical angles of the station cabinet. Fasten the expansion nuts.
-
Page 12: Wiring
Entrance/Exit Station Quick Start Guide Figure 2-3 Install Station Cabinet 2.3 Wiring 2.3.1 Connect to Perihperal Devices The station can connect to control terminal and barrier gate. The control terminal can manage capture, display, passing, and payment. Here we take example of one type of each peripheral device. The actual device prevails. -
Page 13: Connect To Power Supply
Entrance/Exit Station Quick Start Guide LED Display Switch A UDIO I N Control Terminal Capture Unit 12 VDC Power Adapter Live Zero Line Line Station Inte rnal Veh i c le Detecto r Entrance/Exit Station 220 VA C Liv e Zero Line Line... - Page 14 Entrance/Exit Station Quick Start Guide Figure 2-5 Power Connection Step 2 Reinstall the back cover and lock the cabinet.
-
Page 15: Chapter 3 Activation And Login
Entrance/Exit Station Quick Start Guide Chapter 3 Activation and Login 3.1 Activate Device You need to activate the station and set the password for first-time login. You can activate the station via multiple methods. Here we take example of activation via web browser. For activation via client software, refer to the client software user manual for details. -
Page 16: Log Out
Entrance/Exit Station Quick Start Guide Step 1 Open the web browser. Step 2 Enter the IP address of the station in the address bar, and press the Enter key to enter the login interface. Step 3 Enter User Name and Password. Step 4 Click Login. -
Page 17: Chapter 4 Basic Operation
Entrance/Exit Station Quick Start Guide Chapter 4 Basic Operation 4.1 Manage IP Camera 4.1.1 Add IP Camera Manually Connect capture unit to the station manually if the passwords of them are different. Before you start The capture unit can communicate normally with the station. ... -
Page 18: Edit Ip Camera
Entrance/Exit Station Quick Start Guide Figure 4-2 Quick Add Step 3 Check the IP camera. Step 4 Click OK to add it. 4.1.3 Edit IP Camera You can edit the added IP camera parameters. Step 1 Go to Configuration > System > Camera Management > IP Camera. Step 2 Check the camera to edit. -
Page 19: Delete Ip Camera
Entrance/Exit Station Quick Start Guide 4.1.4 Delete IP Camera You can delete the added IP camera. Step 1 Go to Configuration > System > Camera Management > IP Camera. Step 2 Check the camera to delete. Step 3 Click Delete to delete it. 4.2 Configure Entrance &... -
Page 20: Configure Ticket
Entrance/Exit Station Quick Start Guide Enable Notification for Illegal Card/Ticket: If it is checked, the station will let the vehicle pass only when the card information is legal. If illegal, the station will filter the card information and play the voice prompt of the card exception information. If it is unchecked, the platform will judge whether the card information is legal or not. -
Page 21: Configure Multi-Channel Capture
Entrance/Exit Station Quick Start Guide Step 6 (Optional) Click Print Test to print the configured ticket to view the effect. Step 7 Click Save to save the settings. 4.2.3 Configure Multi-Channel Capture If multiple capture units are installed for one lane, you can enable multi-channel capture. The clearest captured picture will be uploaded to the platform automatically according to the effects of different pictures captured by the capture units. -
Page 22: Appendix A Peripheral Interfaces
Entrance/Exit Station Quick Start Guide Appendix A Peripheral Interfaces Open the cover of the station, and you can see the peripheral interfaces. Reserved RS-485 External LED Display Barrier Gate Alarm Output Stop Fall Rise Figure A-1 Line Bank (Left) Vehicle Detector Output Alarm Input Wiegand GND 12V W1+... - Page 23 Entrance/Exit Station Quick Start Guide Rise Fall Stop Common Barrier gate interfaces to Rising Vehicle detector control barrier gate Limit inductive loops input Falling Limit Vehicle detector output Alarm input interfaces...
- Page 24 Entrance/Exit Station Quick Start Guide UD16423B...
