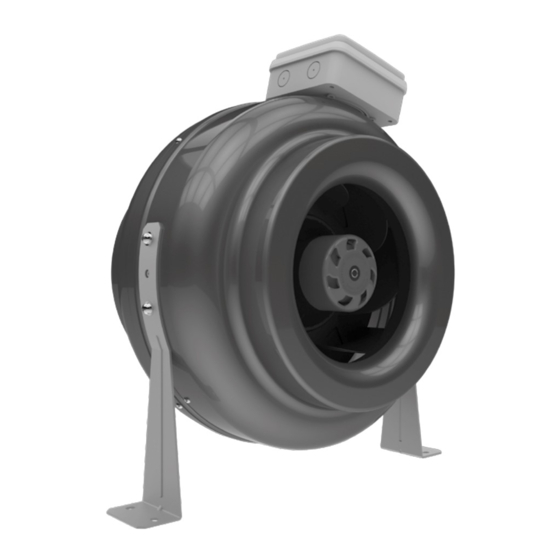

- Page 1 CEntrifugal inlinE fan Centro-M EC USER'S MANUAL...
-
Page 2: Table Of Contents
Centro-M EC www.blaubergventilatoren.de CONTENTS Safety requirements ................................... 2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Installation and set-up ................................6 Connection to power mains ..............................8 Technical maintenance................................10 Storage and transportation requirements ........................11 Manufacturer’s warranty ................................ -
Page 3: Safety Requirements
Centro-M EC www.blaubergventilatoren.de SAFETY REQUIREMENTS All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and repair operations. - Page 4 Centro-M EC www.blaubergventilatoren.de Connection to the mains must be made through a disconnecting device, which is integrated into the fixed wiring system in accordance with the wiring rules for design of electrical units, and has a contact separation in all poles that allows for full disconnection under overvoltage category III conditions.
-
Page 5: Purpose
Centro-M EC www.blaubergventilatoren.de PURPOSE The product described herein is a centrifugal inline fan Centro-M EC for ventilation of small and medium domestic premises. The unit is rated for continuous operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, THE UNIT CAN BE USED IN KITCHEN SPACES ONLY IF THERE IS A GREASE FILTER. -
Page 6: Technical Data
Centro-M EC www.blaubergventilatoren.de TECHNICAL DATA The fan is designed for indoor or sheltered application at ambient temperature from -25 °C up to +40 °C and relative humidity up to 80 %. The unit is rated as a class I electric appliance. Ingress protection rating against access to hazardous parts and water ingress is IPX4. - Page 7 Centro-M EC www.blaubergventilatoren.de Terminal box Casing Impeller øD Fixing bracket øD1 øD2 holes Centro-M EC 100 Centro-M EC 125 Centro-M EC 150 Centro-M EC 160 Centro-M EC 200 Centro-M EC 200 max Centro-M EC 250 Centro-M EC 250 L Centro-M EC 315 Terminal box Casing Impeller...
-
Page 8: Installation And Set-Up
Centro-M EC www.blaubergventilatoren.de INSTALLATION AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. The air motion in the system must be as shown with the pointer of the fan casing. In case of the vertical installation the intake spigot must be protected with a ventilation hood. To attain the best performance of the fan and to minimise turbulence-induced air pressure losses while mounting, connect straight air duct sections to the fan spigots on both sides of the fan. - Page 9 Centro-M EC www.blaubergventilatoren.de INSTALLATION STEPS Disconnect the fan from power supply Install the fixing brackets Lean the fan against the installation place and mark the Drill the holes and insert the expansion anschors |fastening holes Fix the fan Connect air ducts...
-
Page 10: Connection To Power Mains
Centro-M EC www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL. - Page 11 Centro-M EC www.blaubergventilatoren.de Thermostat control knob Speed Speed control knob control knob G1, GT1, GS1 Electronics operation algorithm The G1/GT1/GS1 fan is equipped with an electronic module TSC (speed controller with an electronic thermostat) for automatic speed control (air flow) depending on the air temperature. The terminal compartment incorporates 2 control knobs: •...
-
Page 12: Technical Maintenance
Centro-M EC www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING Technical maintenance means regular cleaning of the unit surfaces of dust. Use a soft brush or compressed air to remove dust. Clean the impeller blades at least every 6 months. - Page 13 Centro-M EC www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚С (+41 ˚F) to +40 ˚С (+104 ˚F) and relative humidity up to 70 %. •...
-
Page 14: Manufacturer's Warranty
Centro-M EC www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 15: Certificate Of Acceptance
Centro-M EC www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal inline fan Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 16 www.blaubergventilatoren.de B88EN-06...
