SKYDANCE RGBW4ZTC Mounting Instructions

RGBW4ZTC

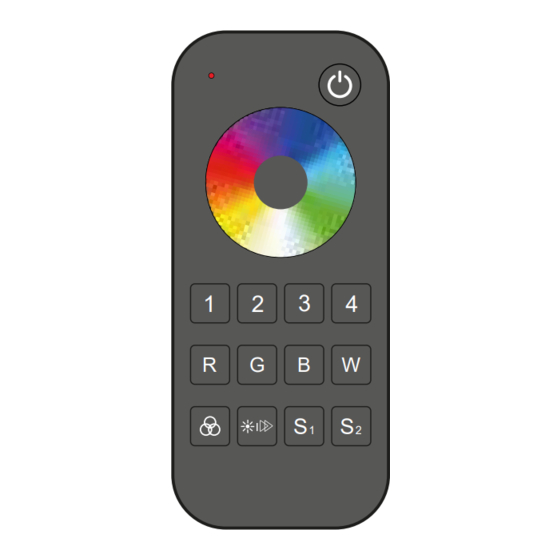

4 zone RGB or RGBW/Touch color wheel/Wireless remote 30m distance/AAAx2 battery/Magnet stuck fix
RGBW4ZTC
4 Z one RG B/ RG BW
Features
● Apply to RG B or RG BW L ED controller.
● Ultra sensitive color adjustment touch wheel.
● Independent dimming function of each R, G , B , W c hannel to achieve millions of colors.
● Each remote can match one or more receiver.
● AAAx2 b attery powered.
● O perate with LED indicator light.
● Magnet on the back which can be stuck on back holder.
Technical Parameters
Input and O utput
O utput signal R F 2 .4 G Hz ( )
Working voltage 3 VDC AAAx2
( )
Working current ＜5 mA
Standby c urrent ＜1 0 μA
Standby time 1 y ear
Remote distance 3 0 m(Barrier-free space)
Environment
Operation temperature Ta: -30 O C ~ + 55 O C
IP rating
IP20
MOUNTING INSTRUNCTIONS
Remote controller for RGB/RGBW lamps
LVD RED
Safety a nd EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
Certification CE,EMC,L VD,RED
W arranty
Wa rranty 5 y ears
W eight
N et weight 0 . 0 4 8 k g
G ross weight
0 . 0 8 8 k g

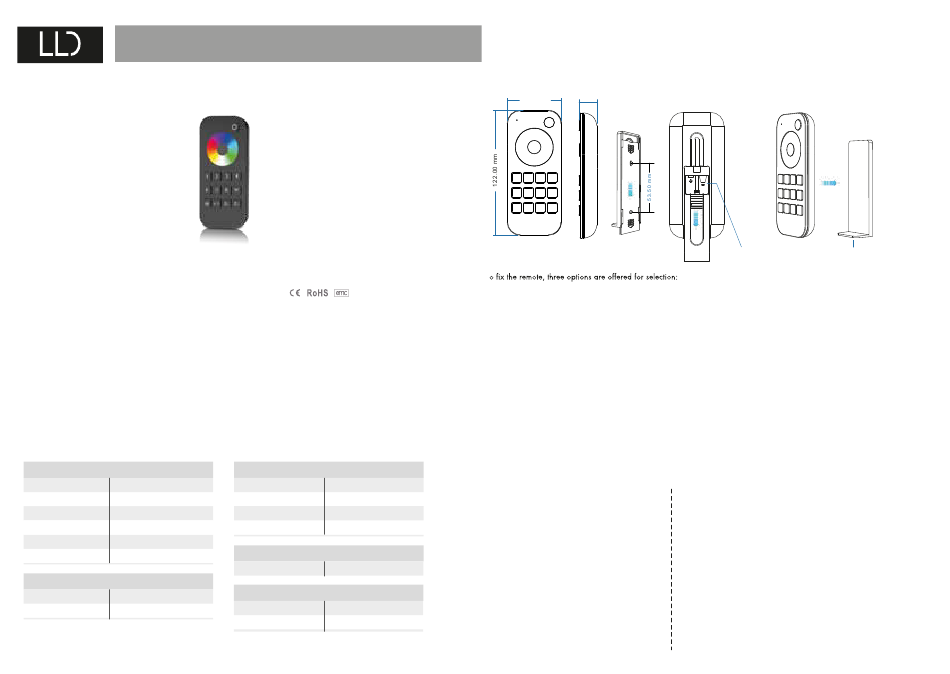

Mechanical Structures and Installations
17.50 mm
53.00 mm
T
Option 1: stuck the remote on any metal surfaces directly
Option 2: fix the remote' back holder on the wall with two screws.
Option 3: adhere the remote' back holder to the wall with paster
O peration
● When turn on light, the indicator display blue. when turn off light, the indicator display red.
● When touch the color wheel , the indicator will display the same color
● When press or touch operation is invalid (If the light is off), the indicator display red.
● To extend batter y life , no touch or press key operation after a few seconds ,
the touch wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.
Match Remote Control (two match ways)
End user can choose the suitable match/ delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press on/off
key (single zone remote) or zone key (multiple
zone remote) of the remote.
The LED indicator fast flash a few times
means match is successful.
Delete :
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times
means all matched remotes were deleted.
RT4 , RT9 T ouch W heel RF Remote C ontroller
3VDC(AAAx2) Batter y Back holder with magnet
.
.
.
Use Power Restart
Match:
Switch of f the power , then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete :
.
Switch off the power, then switch on power again,
immediately shor t press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
