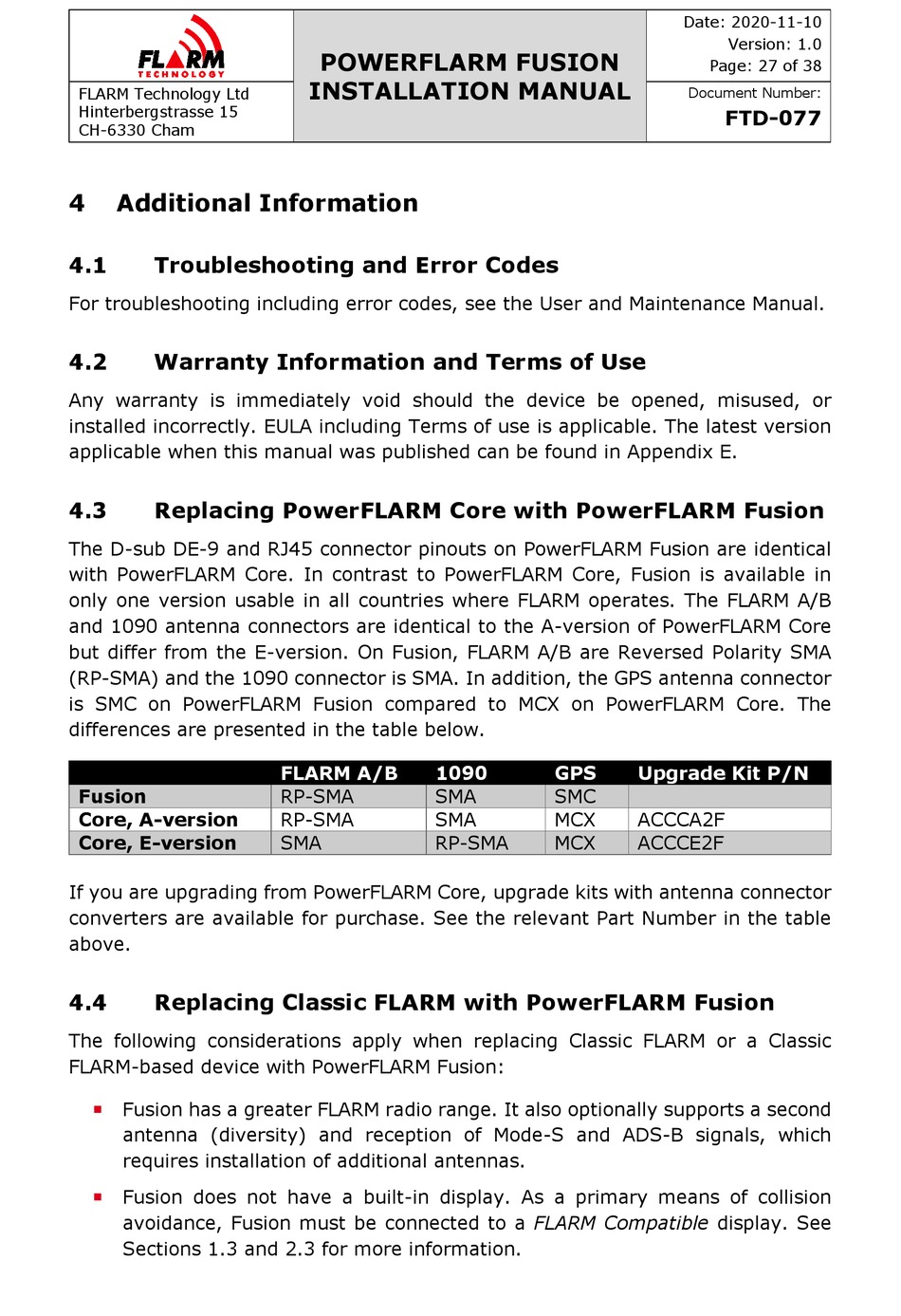

4

Additional Information

4.1

Troubleshooting and Error Codes

For troubleshooting including error codes, see the User and Maintenance Manual.
4.2

Warranty Information and Terms of Use

Any warranty is immediately void should the device be opened, misused, or
installed incorrectly. EULA including Terms of use is applicable. The latest version
applicable when this manual was published can be found in Appendix E.
4.3

Replacing PowerFLARM Core with PowerFLARM Fusion

The D-sub DE-9 and RJ45 connector pinouts on PowerFLARM Fusion are identical
with PowerFLARM Core. In contrast to PowerFLARM Core, Fusion is available in
only one version usable in all countries where FLARM operates. The FLARM A/B
and 1090 antenna connectors are identical to the A-version of PowerFLARM Core
but differ from the E-version. On Fusion, FLARM A/B are Reversed Polarity SMA
(RP-SMA) and the 1090 connector is SMA. In addition, the GPS antenna connector
is SMC on PowerFLARM Fusion compared to MCX on PowerFLARM Core. The
differences are presented in the table below.
Fusion
Core, A-version
Core, E-version
If you are upgrading from PowerFLARM Core, upgrade kits with antenna connector
converters are available for purchase. See the relevant Part Number in the table
above.
4.4

Replacing Classic FLARM with PowerFLARM Fusion

The following considerations apply when replacing Classic FLARM or a Classic
FLARM-based device with PowerFLARM Fusion:
Fusion has a greater FLARM radio range. It also optionally supports a second

antenna (diversity) and reception of Mode-S and ADS-B signals, which
requires installation of additional antennas.
Fusion does not have a built-in display. As a primary means of collision

avoidance, Fusion must be connected to a FLARM Compatible display. See
Sections 1.3 and 2.3 for more information.
POWERFLARM FUSION
INSTALLATION MANUAL
FLARM A/B 1090
RP-SMA SMA
RP-SMA SMA
SMA RP-SMA
Date: 2020-11-10
Page: 27 of 38
Document Number:
GPS Upgrade Kit P/N
SMC
MCX ACCCA2F
MCX ACCCE2F
Version: 1.0
FTD-077
