Appendix B – Acceptable Antennas and Cables
The antennas listed below are acceptable for installation and use.
If using other than supplied or listed antennas, it must be ensured that the
antennas are acceptable for the applicable installation (e.g. environmental
aspects) and radio frequency characteristics. Ensure that FLARM antennas have
complete insulation and protection.
The radio frequency characteristics may be verified by performing a range
analysis.
Note: The range analysis does not verify environmental aspects,
insulation, or installation.

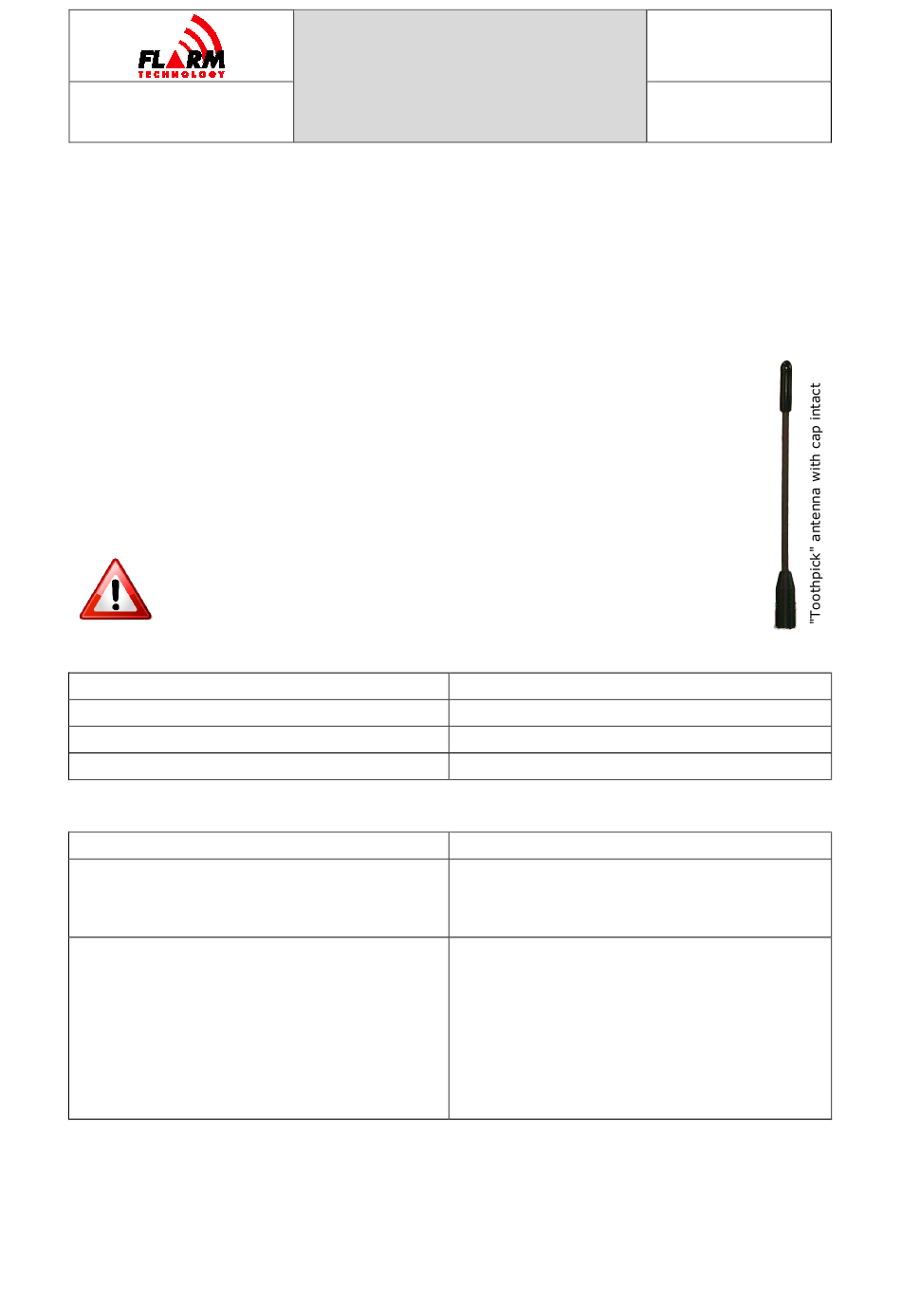

Damaged antennas (e.g. missing cap) or FLARM
antennas with insufficient insulation can damage
devices and may not be used.
Internal antennas
GPS Antenna
FLARM Antenna SRD860
FLARM Antenna ISM
ADS-B Antenna
External antennas
FLARM Antenna, External
SSR/ADS-B Antenna
GPS Antenna
For remotely installed antennas using separate RF cables, low-attenuation RF
cables should be used. The total attenuation should be less than 3 dB.
POWERFLARM FUSION
INSTALLATION MANUAL
FLARM Technology: ANTFIGPS
FLARM Technology: ANTFIFLASRD
FLARM Technology: ANTFIFLAISM
FLARM Technology: ANTFIADSB
RAMI: AV-75/ANTCEFLA
RAMI: AV-74, AV-22
TED: 104-12
Cobham Comant: CI 105, CI 101
Sensor Systems: S67-1575-39, S67-
1575-86, S67-1575-96, S67-1575-
134, S67-1575-135, S67-1575-137,
S67-1575-232
Cobham Comant: CI 401-460, CI
420-420, CI 428-410, CI 429-410
RAMI: AV-GPS
