FLARM Technology Ltd
Hinterbergstrasse 15
CH-6330 Cham
2.4

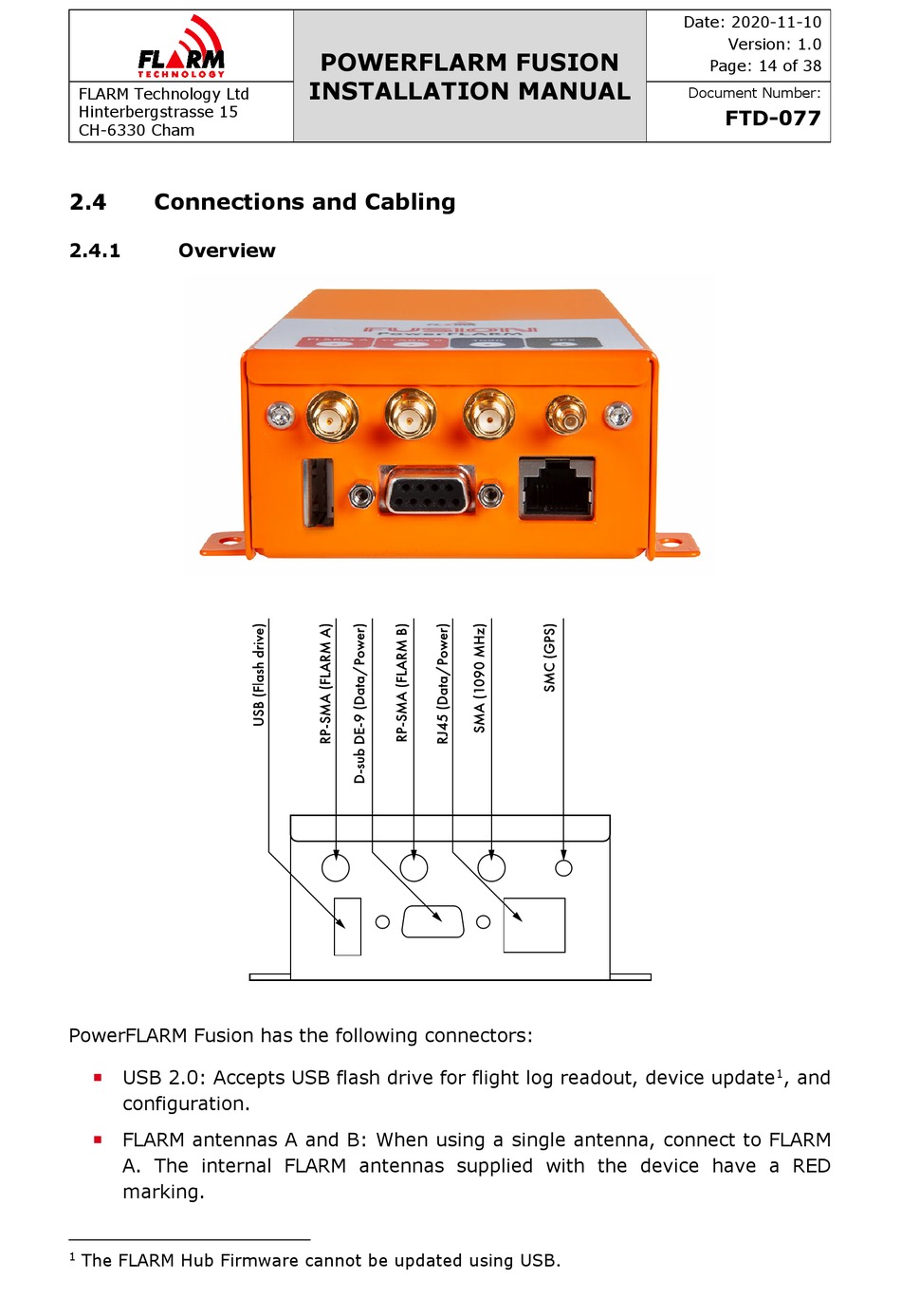

Connections and Cabling
2.4.1
Overview
PowerFLARM Fusion has the following connectors:
USB 2.0: Accepts USB flash drive for flight log readout, device update
configuration.
FLARM antennas A and B: When using a single antenna, connect to FLARM
A. The internal FLARM antennas supplied with the device have a RED
marking.
The FLARM Hub Firmware cannot be updated using USB.
1
POWERFLARM FUSION
INSTALLATION MANUAL
Date: 2020-11-10
Version: 1.0
Page: 14 of 38
Document Number:
FTD-077
1
