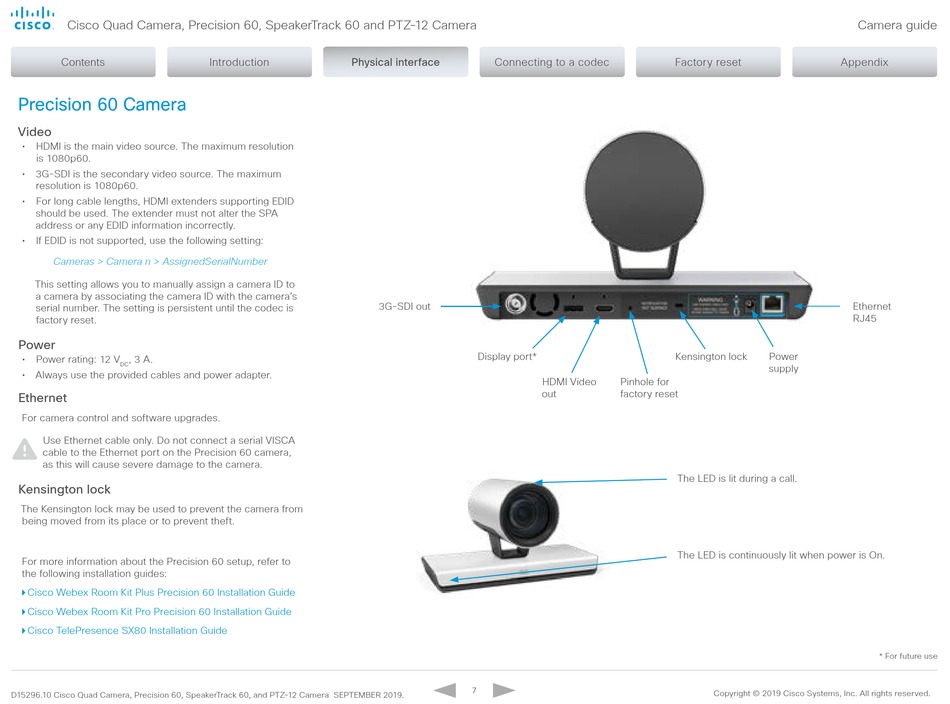

Precision 60 Camera
Video
• HDMI is the main video source. The maximum resolution
is 1080p60.
• 3G-SDI is the secondary video source. The maximum
resolution is 1080p60.
• For long cable lengths, HDMI extenders supporting EDID
should be used. The extender must not alter the SPA
address or any EDID information incorrectly.
• If EDID is not supported, use the following setting:
Cameras > Camera n > AssignedSerialNumber
This setting allows you to manually assign a camera ID to
a camera by associating the camera ID with the camera's
serial number. The setting is persistent until the codec is
factory reset.
Power
• Power rating: 12 V , 3 A.
DC
• Always use the provided cables and power adapter.
Ethernet
For camera control and software upgrades.
Use Ethernet cable only. Do not connect a serial VISCA
cable to the Ethernet port on the Precision 60 camera,
as this will cause severe damage to the camera.
Kensington lock
The Kensington lock may be used to prevent the camera from
being moved from its place or to prevent theft.
For more information about the Precision 60 setup, refer to
the following installation guides:
Cisco Webex Room Kit Plus Precision 60 Installation Guide
Cisco Webex Room Kit Pro Precision 60 Installation Guide
Cisco TelePresence SX80 Installation Guide
D15296.10 Cisco Quad Camera, Precision 60, SpeakerTrack 60, and PTZ-12 Camera SEPTEMBER 2019.
Introduction Physical interface Physical interface
3G-SDI out
Connecting to a codec
Display port*
HDMI Video Pinhole for
out factory reset
7
Factory reset Appendix
Ethernet
RJ45
Kensington lock Power
supply
The LED is lit during a call.
The LED is continuously lit when power is On.
Copyright © 2019 Cisco Systems, Inc. All rights reserved.
Camera guide
* For future use
