9.3 Reheat

Unit is equipped with one of the following reheats:

Electrical heating elements

Hot Gas

Hot Water

Steam

No reheat
Check your unit for the kind of reheat it has. For type hot water and steam piping connections are
required. Make sure shut off valves are provided external to the unit.
The most common type of reheat used in Compu Kool III unit is the electrical heating elements. The
number of the stages and elements depend on heating required for dehumification.
Temperature Limit
Switch capillary tube

9.4 Condensate Pump (optional):

When provided it is shipped separately or factory installed inside the Crac unit. To avoid any
flooding problems provide a separate power source. WIRE THE PUMP TO SHUT THE SYSTEM OFF IN
CASE OF OVERFLOW OR PUMP FAILURE. A SYSTEM CUT OFF TERMINAL IS PROVIDED IN THE UNIT.

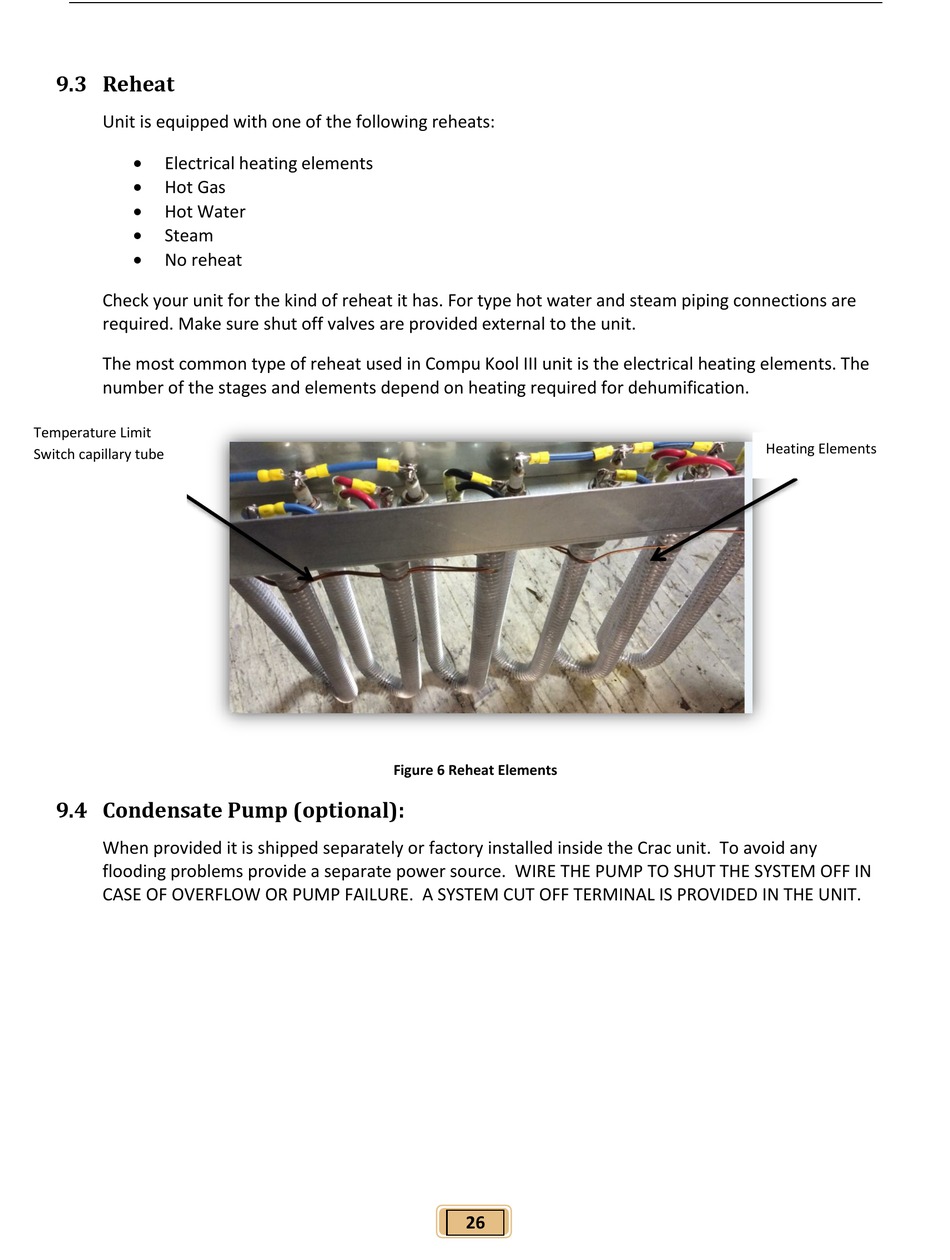

Figure 6 Reheat Elements

26
Heating Elements
