DS-200iQ / DS-600iQ
6.2.1.1
COLLATE POCKET PAPER JAMS
1.
Raise the Insert Head perspex top cover to access the collate clam.
2.
Lift the collate clam (closest to envelope hopper) so it locks into place as
shown in Figure 6.31.

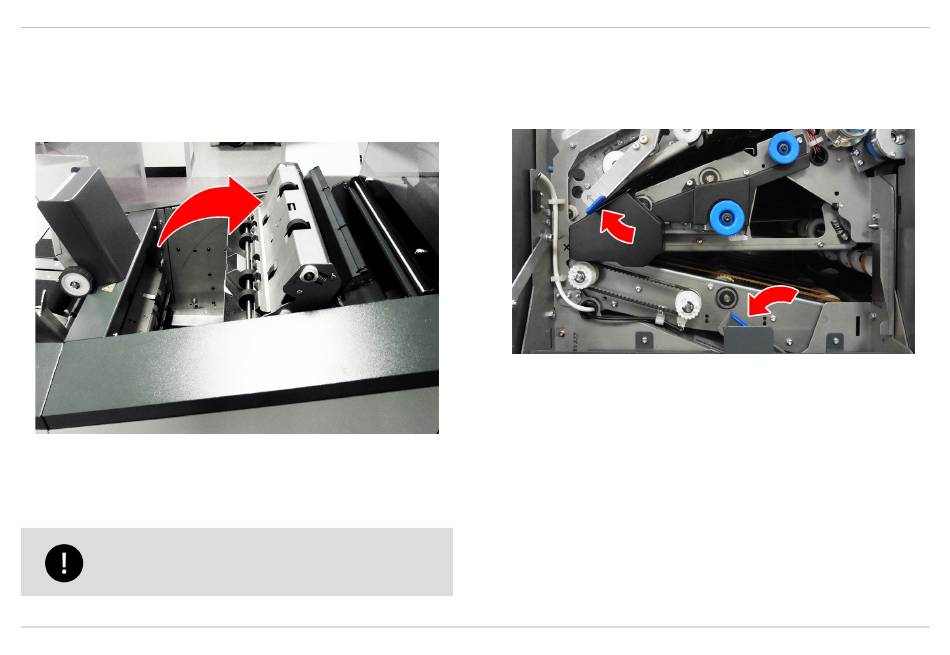

Figure 6.31 – Lifting the collate clam locking it into place
3.
Pull the jammed paper out inside the collate pocket area, and lower the
Collate clamshell and Insert Head perspex top cover back down into it's
original position.
Ensure only the jammed paper inside the collate pocket area is
removed. Removing the subsequent document being processed
will result in an IMOS "document has failed to arrive" error.
USER GUIDE
6.2.2
1.
Open the Versatile Feeder side cover.
2.
Push the levers indicated in Figure 6.32 to access the jammed paper.
3.
If the jammed paper is not fully visible, turn the blue knobs clockwise or anti-
clockwise to wind it into view.
4.
Pull the jammed paper out, and close the Versatile Feeder side cover once
QTL-RND-OPS-00000143-A-00
complete.
VERSATILE FEEDER PAPER JAMS
Figure 6.32 – Pushing the levers to access the jammed paper
OPERATOR MAINTENANCE
6
QTL-RND-OPS-00000171-A-00
98
REV 00
JUN 2020
