mikroElektronika dsPIC Ready3 Manual

Additional board

dsPIC Ready3

™

Manual

All Mikroelektronika's development systems feature a large number of peripheral

modules expanding microcontroller's range of application and making the

process of program testing easier. In addition to these modules, it is also

possible to use numerous additional modules linked to the development system

through the I/O port connectors. Some of these additional modules can operate

as stand-alone devices without being connected to the microcontroller.

MikroElektronika

Table of Contents

Need help?

Do you have a question about the dsPIC Ready3 and is the answer not in the manual?

Page 1 Ready3 ™ Manual All Mikroelektronika’s development systems feature a large number of peripheral modules expanding microcontroller’s range of application and making the process of program testing easier. In addition to these modules, it is also possible to use numerous additional modules linked to the development system through the I/O port connectors.

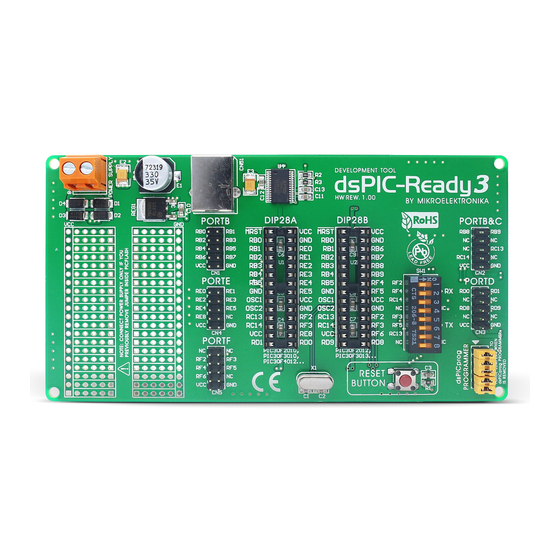

Page 2 How to use the board? In order to use the dsPIC Ready3 additional board, it is first necessary to place a microcontroller in DIP28 package into one of two appropriate socket supplied on the board. The microcontroller is programmed with the dsPICFlash programmer that is plugged via its IDC10 connector into a 2x5 connector CN6 supplied on the board.
Page 3 Figure 2: Programming the on-board microcontroller MikroElektronika...
Page 4 OSC1 9 20 VCC 100nF OSC2 10 19 GND 8MHz RC13 11 18 RF2-PGC OSC2 RC14 12 17 RF3-PGD VCC 13 16 RF6 RD9 14 15 RD8 22pF 22pF 100nF PIC30F2012, 3013 Figure 3: The dsPIC Ready3 board connection schematic MikroElektronika...
Page 5 Figure 4: Dimensions of the dsPIC Ready3 additional board MikroElektronika...
Page 6 MikroElektronika...
