Summary of Contents for mikroElektronika Ready for XMEGA

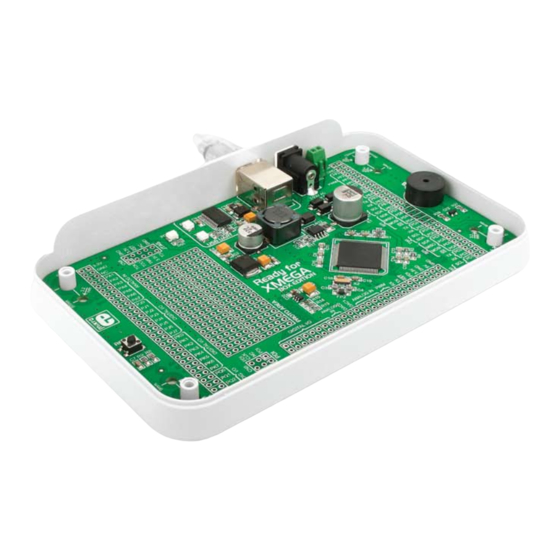

  • Page 1 Ready for XMEGA ® ™ Best solution for fast and simple development of applications using ATxmega128A1 device. With special white plastic casing you can quickly turn your Ready for XMEGA project into a final product.
  • Page 2 TO OUR VALUED CUSTOMERS I want to express my thanks to you for being interested in our products and for having confidence in MikroElektronika. The primary aim of our company is to design and produce high quality electronic products and to constantly improve the performance thereof in order to better suit your needs.
  • Page 3: Table Of Contents

    Table of Contents Introduction step 4 – Selecting .hex file Package Contains step 5 – Uploading .hex file Key Features step 6 – Progress bar 1. Power supply step 7 – Finish upload 2. ATxmega128A1 Microcontroller Programing with JTAG programmer Key microcontroller features Programing with PDI 3.
  • Page 4: Introduction

    Introduction Ready for XMEGA Board is the best solution for fast and simple development of various microcontroller applications. It comes with ATxmega128A1, and contains double-row smart headers for all available microcontroller ports. We have groupped pins according to their functions, so you have everything on the silkscreen.
  • Page 5: Package Contains

    Package Contains 20122011 www.mikroe.com Copyright ©2011 Mikroelektronika. All rights reserved. Mikroelektronika, Mikroelektronika logo and other Mikroelektronika trademarks are the property of Mikroelektronika. All other tradmarks are the property of their respective owners. Unauthorised copying, hiring, renting, public performance and broadcasting of this DVD prohibited.
  • Page 6: Key Features

    Key Features System Specification JTAG connector power supply Power LED indicator Via AC/DC connector 7-23V AC UART communication LEDs (RX, TX) or 9-32V DC Power regulator FTDI chip power consumption USB UART connector 50mA in idle state Power connector (when on-board modules are off) Power screw terminals Reset button board dimensions...
  • Page 7 Page 7...
  • Page 8: Power Supply

    Ready for XMEGA board can be powered in two ways: via USB connection, or using external power sources such as adapters and laboratory power supplies. USB connection can provide up to 500mA of current which is more than enough for every on-board module and for operation of the microcontroller.
  • Page 9 VCC-3.3V AVCC VCC-5V VCC-USB MBRS140T3 VREF-1.8V VCC-3.3V REG1 FERRITE VCC-3.3V VCC-5V Vout FERRITE 120K MC33269DT3.3 100nF 10uF 10uF 2.2uF 100nF 100nF 100nF AP7331-ADJ 10uF 100nF 12K1 USB B 1.8V VOLTAGE REGULATOR 3.3V VOLTAGE REGULATOR VCC-5V VCC-5V DRVC 0.22 220uH 1N4007 1N4007 VCC-EXT POWER...
  • Page 10: Atxmega128A1 Microcontroller

    2. ATxmega128A1 microcontroller Ready XMEGA development system comes with ATxmega128A1 microcontroller. Having lots of MIPS power, flash and RAM, and rich set of inegrated modules, ATxmega128A1 is ideal choice for both beginners and professionals. Key microcontroller features 32 MIPS - Up to Operation;...
  • Page 11: Programming The Microcontroller

    3. Programming the microcontroller Figure 3-1: ATxmega128A1 The microcontroller can be programmed in three ways: Via USB-UART mikroBootloader Using JTAG external programmer Using PDI external programmer Page 11...
  • Page 12: Programming With Mikrobootloader

    Programming with mikroBootloader mikroBootloader software You can program the microcontroller with bootloader which is preprogrammed into the device by default. To transfer .hex file note from a PC to MCU you need bootloader software (mikroBootloader Before starting mikroBootloader software, connect Ready for HID) which can be downloaded from: XMEGA with a PC using USB cable provided with the package http://www.mikroe.com/eng/downloads/get/1271/...
  • Page 13: Identifying Device Com Port

    Ports section to see which COM port is assigned port From the drop down list, select appropriate COM to Ready for XMEGA board (in this case COM34) which is used for communication with a PC Click OK. Page 13...
  • Page 14: Step 2 - Establishing Connection

    Baud rate is set to 115200bps by default. Figure 3-5: Connecting with mikroBootloader Figure 3-6: Browse for HEX Press ”Reset” button on Ready for XMEGA board and Click the ”Browse for HEX” button and from a ”Connect” click button within 5s, otherwise existing pop-up window (Figure 3.7) choose .HEX file...
  • Page 15: Step 4 - Selecting .Hex File

    step 4 - Selecting .HEX file step 5 - Uploading .HEX file Figure 3-7: Locating and Selecting .hex file Figure 3-8: Begin uploading Select .HEX file using open dialog window. To start .HEX file bootloding click the ”Begin uploading” button. Click the ”Open”...
  • Page 16: Step 6 - Progress Bar

    Figure 3-10: Restarting MCU ”OK” You can monitor .HEX file uploading via progress bar. Click button after uploading is finished. ”Reset” Press button on Ready for XMEGA board and wait for 5 seconds. Your program will execute automatically. Page 16...
  • Page 17: Programing With Jtag Programmer

    IDC10 2x5 male header onto the board’s JTAG connector pads. If bootloader program is accidentally erased, you can upload it again via AVR JTAG or PDI programmer. Ready for XMEGA Bootloader Firmware.hex can be found under Firmware folder (see page 12).
  • Page 18: Programing With Pdi

    Programming with PDI programmer Figure 3-13: placing 6 pin header The board is also equipped with PDI connector pads, which allow you to program the microcontroller Figure 3-14: using external serial PDI programmer. Before attaching the Connecting programming connector, you have to solder the provided 2x3 male PDI programmer header...
  • Page 19 VCC-3.3V VCC-3.3V VCC-3.3V VCC-3.3V 100nF 100nF 100nF 100nF AVCC VCC-3.3V VCC-3.3V VCC-3.3V VCC-3.3V VCC-3.3V 100nF 100nF 100nF 100nF Decoupling capacitors AVCC VCC-3.3V PB4/TMS PB5/TDI RESET# PB6/TCK PB7/TDO ATxmega128A1 VCC-3.3V VCC-3.3V PB6/TCK PB7/TDO PB4/TMS RESET# PB5/TDI JTAG 22pF PQ1/TOSC2 R1 27 R2 27 PQ0/TOSC1 22pF Figure 3-15: PDI &...
  • Page 20: Usb-Uart

    4. USB-UART FTDI® chip Fast on-board allows you to communicate with a PC or other UART devices using USB-UART connection. USB-B connector (CN3) is used for connecting the USB cable. RX (receive) and TX (transmit) LEDs will indicate communication status. Before conecting the board with the PC, make sure to have the FTDI drivers appropriate...
  • Page 21: Prototyping Area

    Figure 5-1 Proto area allows you to expand your Ready for XMEGA board with additional functionalities. That can be done by placing your additional components on available prototyping area. Pads are arranged in standard 100mils distance form factor. There are 20 connected lines on...
  • Page 22: Pin Headers

    6. Pin headers VCC-3.3V VCC-3.3V VCC-3.3V VCC-3.3V VCC-3.3V VCC-3.3V VCC-3.3V VCC-3.3V VCC-5V VCC-3.3V 100nF 100nF 100nF 100nF 100nF 100nF 100nF 100nF 2x26 header VCC-3.3V Figure 6-2: Decoupling Decoupling capacitors capacitors VCC-5V Pin headers Each VCC-5V VCC-5V VCC-3.3V VCC-3.3V AVCC VCC-3.3V microcontroller pin is available for futher...
  • Page 23: Reset Button

    Reset button VCC-3.3V connection schematics AVCC VCC-3.3V 100nF RESET 22pF AVCC PQ1/TOSC2 PQ0/TOSC1 Ready for XMEGA board 22pF specialized reset circuit ATXmega128A1 with high-quality reset VCC-3.3V VCC-3.3V VCC-3.3V VCC-3.3V button, which can be used to reset the program execution 100nF...
  • Page 24: Piezo Buzzer

    8. Piezo buzzer On-board piezo buzzer is a very useful module which can be used in debuging your code, or to have audio signalization feature when board is integrated as a final product. Piezo buzzer’s resonant frequency is 3.8kHz. In addition, other frequencies in the range between 20Hz and 20.000Hz can be used, but the best performance is provided by frequencies ranging between 2kHz and 4kHz.
  • Page 25: Integrating With The Casing

    Ready for XMEGA can easily be integrated into the specialized white plastic casing. This feature is very convenient for turning the board into a final product. The white plastic casing contains inner and outter screw holes. Inner are used for attaching the board to the casing and outter are used for connecting the top part of the casing, and enclosing the board.
  • Page 26: Dimensions

    10. Dimensions (510 mils) (1839 mils) 12.59 mm 46.7 mm (1268 mils) (360 mils) 9.14 mm 32.2 mm (100 mils) (220 mils) (975 mils) 2.54 mm 5.59 mm 24.76 mm (4882 mils) 124 mm (5551 mils) 141 mm Page 26...
  • Page 27 No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use, but not for distribution.
  • Page 28 If you are experiencing some problems with any of our products or just need additional information, please place your ticket at www.mikroe.com/esupport If you have any questions, comments or business proposals, Ready for XMEGA Manual ver. 1.00 do not hesitate to contact us at office@mikroe.com...
