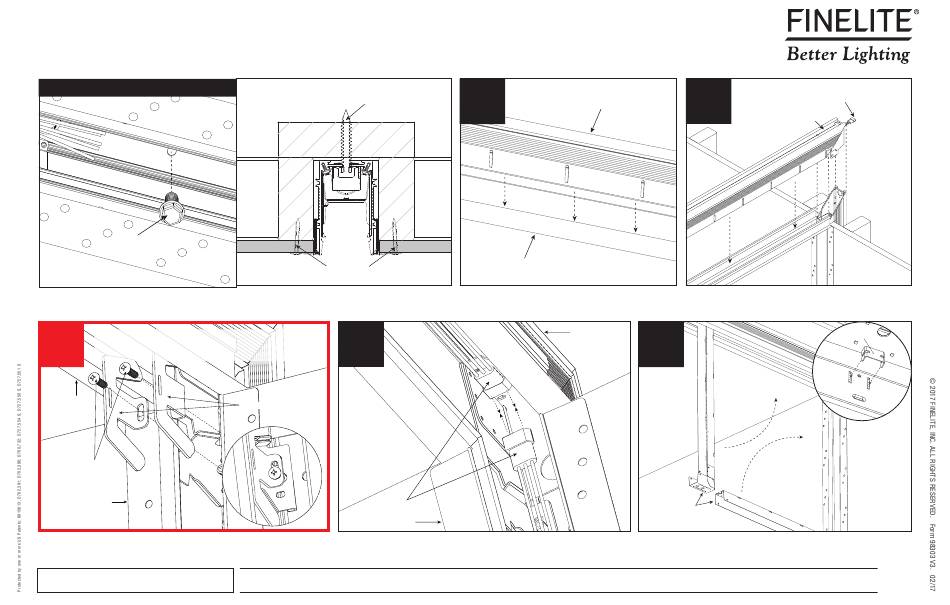

HP-2 Recessed 1" T-Bar to Spackle Flange Installation Instructions
ALTERNATE MOUNTING OPTION
Alternate 1/4" Screw
Mounting Option
B. Alternate mounting option – Install 1/4" screw (by others) through mounting hole into proper structurally supported
blocking (by others).
IMPORTANT STEP
Step 8
Ceiling Joiner
#10-32 x 5/8"
Screws (2)
(provided)
Corner Joiner
IMPORTANT STEP:
Secure joint with two yoke brackets (provided) using #10-32 x 5/8"
screws (provided). CAUTION: When installed correctly these brackets will pull
luminaires together to make a tight joint. Do not over-tighten.
Note: All power connections to be installed to
local/national codes by a Certified Electrician.
1/4" Screws
(by others)
Support Blocking
(by others)
Support
Support
Blocking
Blocking
(by others)
(by others)
Drywall
Drywall
Drywall Screws
(by others)
Step 9
Yoke Brackets x2 (provided)
Ceiling
Plug-Together Wiring
Corner Joiner
Connect plug-together wiring.
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Step 6
Ceiling Joiner
Diffuser
Remove diffuser from ceiling joiner luminaire and set aside to
prevent it from getting dirty or damaged.
Ceiling Joiner
Wall
Replace all back plates by holding them in their original position and pushing the
clips back in. Make sure wire connections are not pinched. (If 1 ft. back plate
assembly is near joint, reconnect feed harness to LED board.
Plug-Together Wiring
Step 7
Ceiling Joiner
Place ceiling joiner luminaire on to T-Bar. Align ceiling joiner and
corner joiner and slide them together.
Step 10
Ceiling Joiner
Ceiling
Corner Joiner
Back Plates
Corner Joiner
Wall
Back Plate Clip
Wall
2
