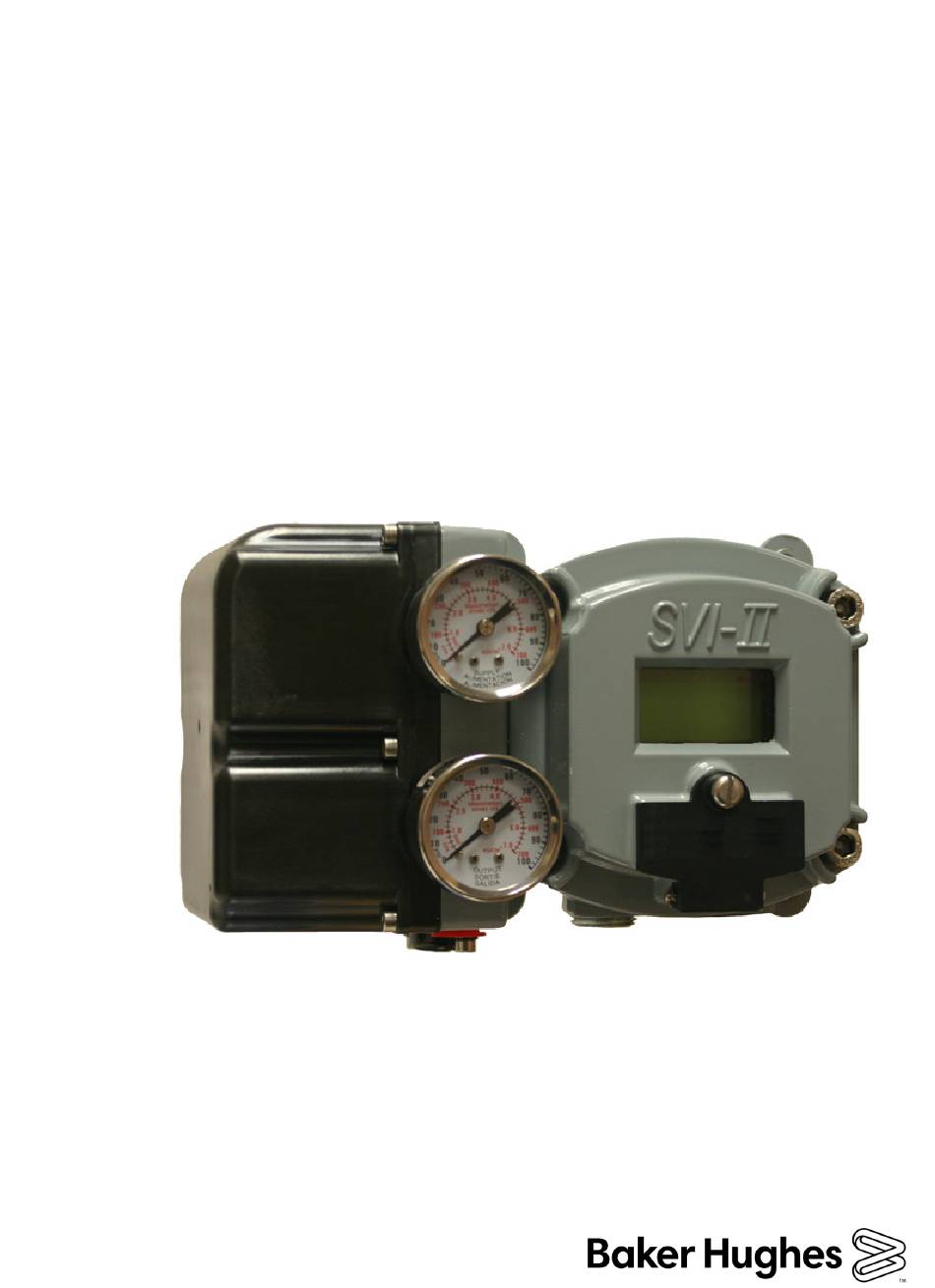

  • Page 1 Masoneilan SVI II AP Advanced Performance Digital Positioner Bench Quick Start Instruction Manual (Rev. F) Baker Hughes Data Classification: Public...
  • Page 2 OPERATOR ARE STRICTLY LIMITED TO THOSE EXPRESSLY PROVIDED IN THE CONTRACT RELATING TO THE SUPPLY OF THE EQUIPMENT. NO ADDITIONAL REPRESENTATIONS OR WARRANTIES BY BAKER HUGHES REGARDING THE EQUIPMENT OR ITS USE ARE GIVEN OR IMPLIED BY THE ISSUE OF THESE INSTRUCTIONS.
  • Page 3 “2. Software Install and Configuration” on page 6 “3. Perform Setup Wizard” on page 11 “4. Save Settings and Device Baseline” on page 12 © 2020 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Bench Quick Start Manual =| 3...
  • Page 4 Connecting the loop calibrator cables to the 4 - 20 mA IN. Maintain polarity + and -, respectively. Serial DB-9 connector ® HART Loop Connector Power Figure 1 Bench Setup Equipment © 2020 Baker Hughes Company. All rights reserved. 4 | Baker Hughes.
  • Page 5 Minimum tubing diameter 1⁄4" (6 mm x 4 mm) √ Any other pneumatic accessories are correctly piped without restricting the SVI II AP output(s) to the actuator. © 2020 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Bench Quick Start Manual =| 5...
  • Page 6 We strongly encourage you to register your license with us as soon as possible. Contact Baker Hughes at software.reg@bakerhughes.com. The evaluation periods for both are independent of each other and commence with first use. © 2020 Baker Hughes Company. All rights reserved. 6 | Baker Hughes.
  • Page 7 DTM Library update. 4. Click Settings > DTM Library and Figure 2 appears. Figure 2 DTM Library Management: Before Update © 2020 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Bench Quick Start Manual =| 7...
  • Page 8 6. Click Add Sel and then click OK to close DTM Library Management dialog. 7. Click Settings > Field Networks, click Add and Figure 4 appears. Select HART Modem and click OK. Figure 4 Add Field Network © 2020 Baker Hughes Company. All rights reserved. 8 | Baker Hughes.
  • Page 9 √ Clicking Add New Device, Figure 6 appears, highlighting SVI II AP HART 5, 6 or 7 and clicking OK. Figure 6 Add New Device © 2020 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Bench Quick Start Manual =| 9...
  • Page 10 Upload means to pull data from the SVI II AP and load data NOTE into DTM onto the PC. Download puts data from the DTM into the SVI II AP. © 2020 Baker Hughes Company. All rights reserved. 10 | Baker Hughes.
  • Page 11 1. Select the Setup Wizard tab and ensure the mode is in Setup. Figure 9 Setup Wizard Tab 2. Click either Air To Open or Air To Close, as appropriate. © 2020 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Bench Quick Start Manual =| 11...
  • Page 12 3. Connect the AP wires to next item on order. Click Import and Add New. Go to step 4 of “2. Software Install and Configuration” on page 6 and repeat. © 2020 Baker Hughes Company. All rights reserved. 12 | Baker Hughes.
  • Page 13 The dialog that appears for download varies by the program NOTE used. 3. Click Save File, click OK and it saves to the Windows Downloads folder. © 2020 Baker Hughes Company. All rights reserved. Masoneilan SVI II AP Bench Quick Start Manual =| 13...
  • Page 14 ® You must download and install this DTM to use Masoneilan’s HART -based DTM. Go to the link: http://www.codewrights.biz/index.php/en/downloads/software and follow instructions to download and install the CW_CommDTM_HART. © 2020 Baker Hughes Company. All rights reserved. 14 | Baker Hughes.
  • Page 15 This page intentionally left blank.
  • Page 16 Baker Hughes reserves the right to make changes in specifications and features shown herein, or discontinue the product described at any time without notice or obligation.
