Mocka Jesse Entertainment Unit Assembly Instructions Manual page 6

Jesse Entertainment Unit
Assembly Instructions
9
Drawers x2
14
E
E
12
A
10
A

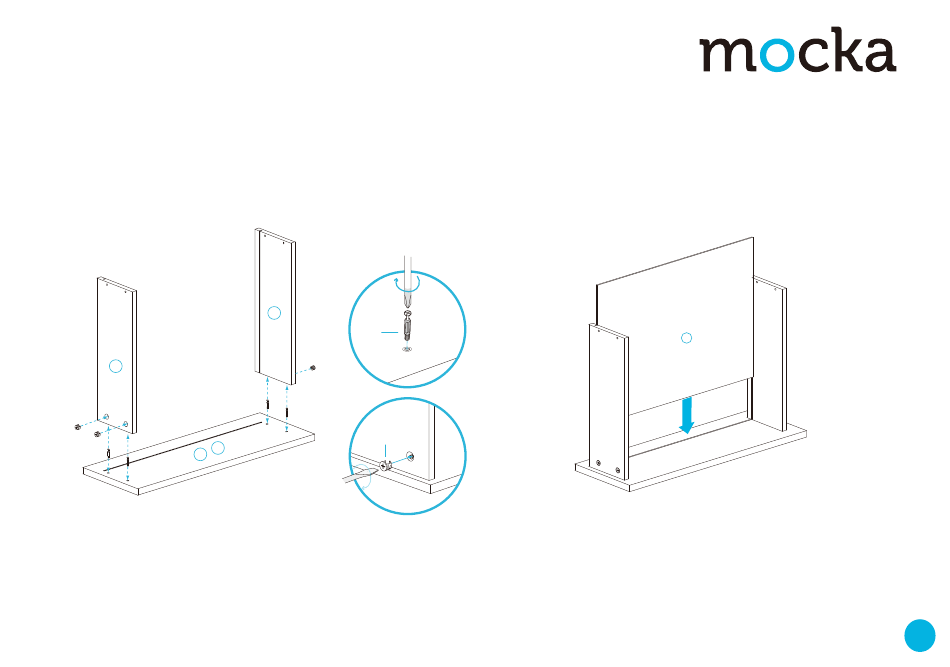

To assemble the drawers screw 4x locking bolts (A) into holes in the
front panel [10] or [12]. Attach side panels [14] and [15] to front panel
by inserting 4x locking nuts (E) into holes in the side panels and tighten
with a flathead screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
15
A
E
A
A
E
10
Drawers x2
x4
x4
Slide the base panel [16] into place in the grooves in side and front
panels as shown.
16
6
