Subject to change without prior notice
R. Stahl Tranberg AS
E
info@stahl-tranberg.com
Main office: Strandsvingen 6
Office Oslo: Luhrtoppen 2

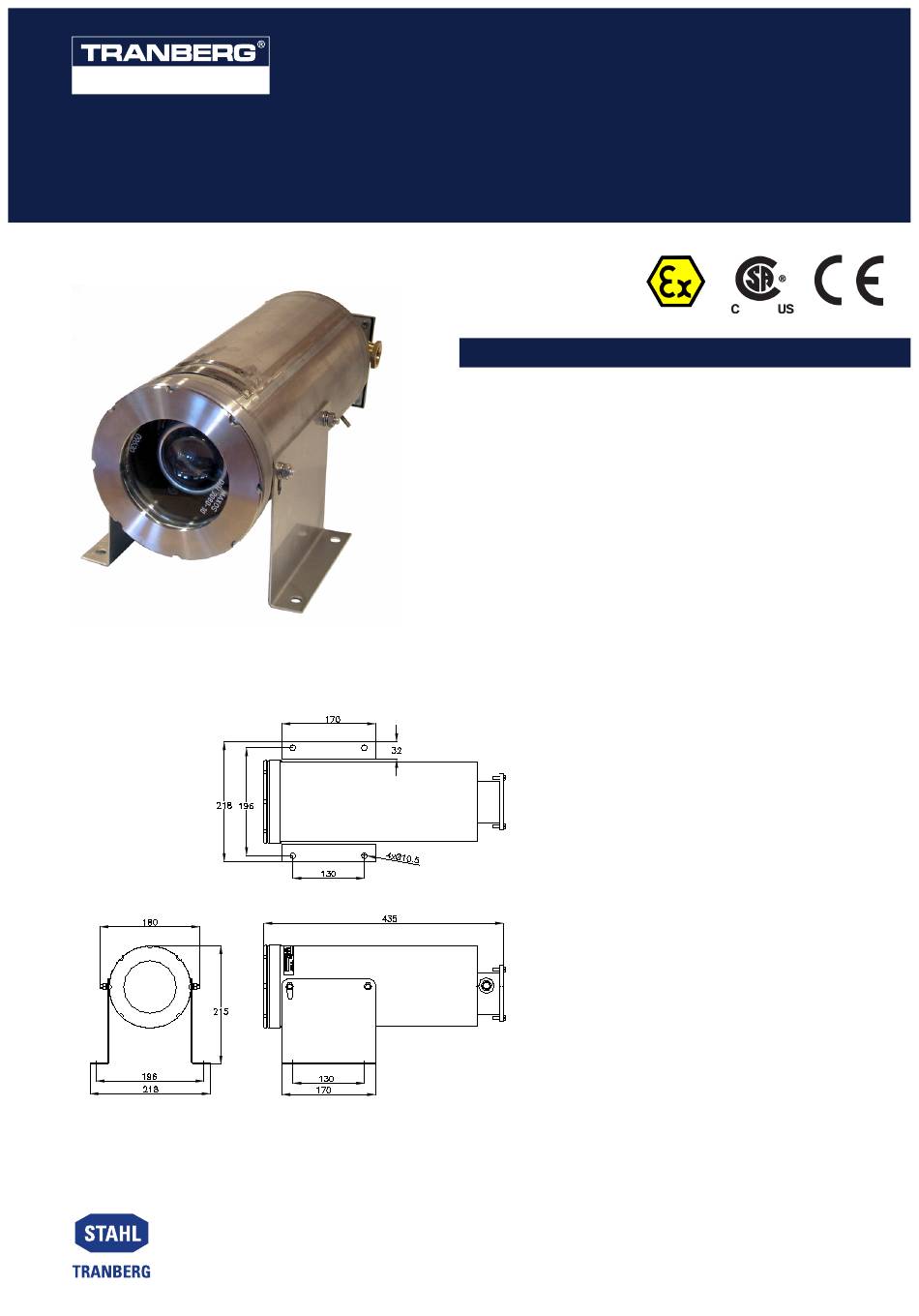

HELIDECK FLOODLIGHT EE
ZONE 1, ZONE 2 & SAFE AREA
TUM1023 REV. D 14.07.2017
|
stahl-tranberg.com
|
N-4032 Stavanger
|
Norway
| T
+47 51 57 89 00
|
N-1470 Lørenskog
|
Norway
| T
+47 24 08 44 10
LIGHTING
TEF 9964 XENON
USER MANUAL
IMPORTANT
Read this instruction carefully before installing the
product
996A105480
| F
+47 51 57 89 50
x de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stahl Tranberg TEF 9964
Summary of Contents for Stahl Tranberg TEF 9964
- Page 1 USER MANUAL Subject to change without prior notice TUM1023 REV. D 14.07.2017 IMPORTANT Read this instruction carefully before installing the product 996A105480 R. Stahl Tranberg AS info@stahl-tranberg.com stahl-tranberg.com Main office: Strandsvingen 6 N-4032 Stavanger Norway +47 51 57 89 00...
- Page 2 TEF 9964 XENON HELIDECK FLOODLIGHT EEx de USER MANUAL INTRODUCTION TOOLS REQUIRED Thank you for purchasing this product! Regular tools required for installation: For installation, maintenance and assurance of a long life • 17 mm wrench –for assembling the floodlight. of this product, please follow this manual.
- Page 3 TEF 9964 XENON HELIDECK FLOODLIGHT EEx de USER MANUAL RUBBER SEAL Cable diameter Size Part No. 11 - 15mm Ø26,8/15,0x10mm 5002 0140 15 - 20mm Ø26,8/20,3x10mm 5002 0139 Be sure to install the cable in a way wich prevents water to penetrate into the enclosure through the cable gland, also make sure to use the correct rubber seal when you install the luminaire INSTALLATION INSTRUCTIONS The floodlight should be installed according to the...
- Page 4 TEF 9964 XENON HELIDECK FLOODLIGHT EEx de USER MANUAL REPLACING XENON LIGHT BULB Warning ! High voltage components inside lamp. Make sure to disconnect power before opening. Note: To be performed by Ex certified personnel only REMOVE FRONT RING Use front ring tool to loosen/screw off front ring, anticlockwise.
- Page 5 TEF 9964 XENON HELIDECK FLOODLIGHT EEx de USER MANUAL 4A. REMOVE LIGHT BULB, NEW VERSION 4B. REMOVE LIGHT BULB, OLD VERSION 4a-1: 4b-1: Disconnect the high voltage plug from the light bulb. Disassemble the reflector unit. 3 x M4 screws Position lamp removal tool over locking ring as shown Disconnect the hight voltage plug.
- Page 6 TEF 9964 XENON HELIDECK FLOODLIGHT EEx de USER MANUAL SPARE PARTS Part No. Xenon Lamp, D2S. 35W, For TEF 9964 9400074 Front Glass 3120 High Voltage Igniter Unit Xenon 9400103 Locknut for Xenon D2S 9400108 Transformer W/ Mounting Bracket for 9964, 230/254 VAC 4386 Transformer W/ Mounting Bracket for 9964, 110 VAC 4387...
