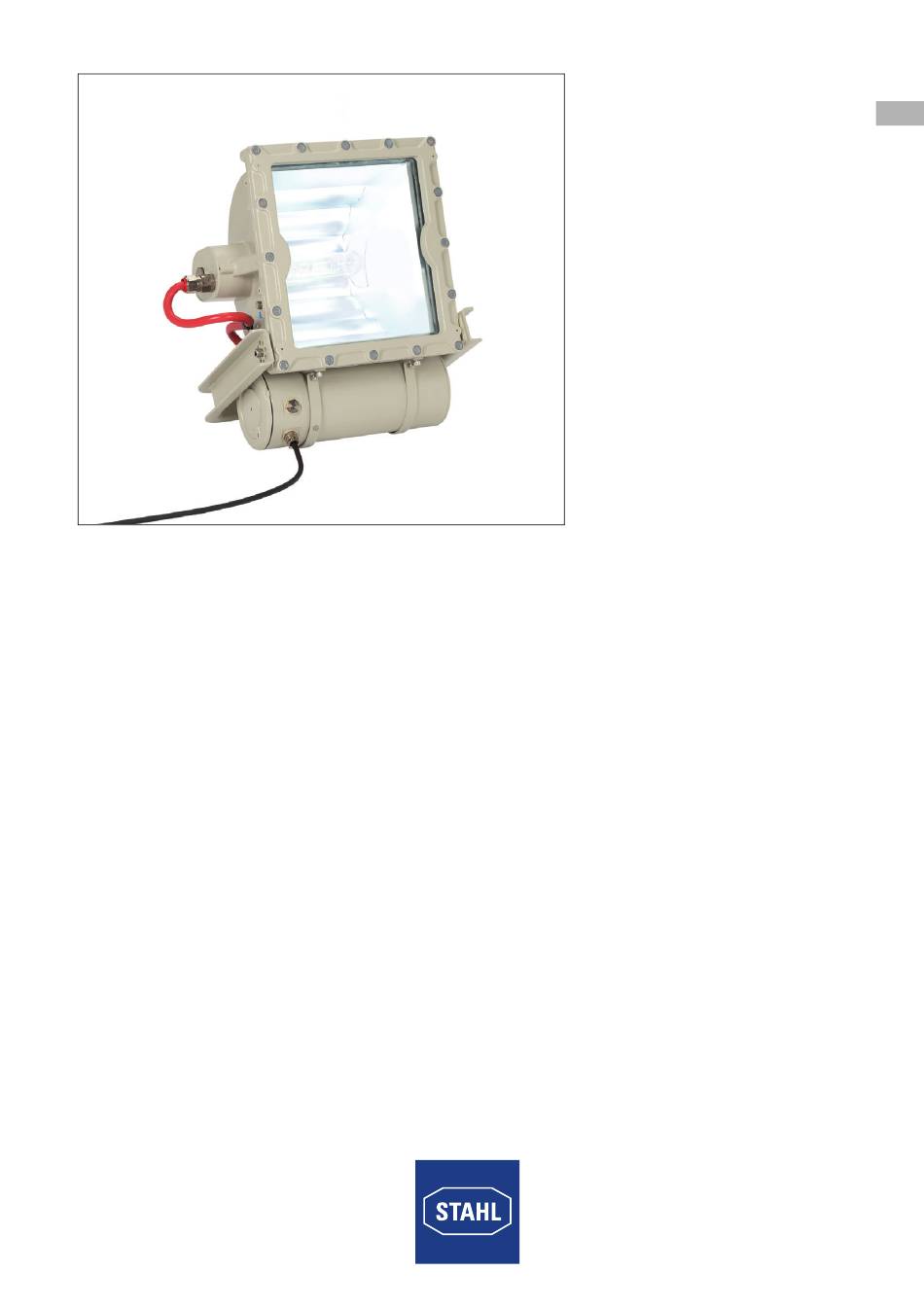

Floodlight
Series 6121
Operating instructions
Additional languages www.r-stahl.com
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6121 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Stahl 6121 Series

Summary of Contents for Stahl 6121 Series

  • Page 1 Operating instructions Additional languages www.r-stahl.com Floodlight Series 6121...

  • Page 2: Table Of Contents

    Contents General Information ....................3 Manufacturer .......................3 Information regarding the operating instructions ..........3 Further documents ....................3 Conformity with standards and regulations ............3 Explanation of the symbols .................4 Symbols in these operating instructions .............4 Warning notes .....................4 Symbols on the device ..................5 Safety notes ......................5 Operating instructions storage ................5 Safe use ......................5...

  • Page 3: General Information

    General Information General Information Manufacturer R. STAHL Schaltgeräte GmbH R. STAHL (P) LTD., Plot No. - 5 Am Bahnhof 30 Malrosapuram Road, Sengundram Indl. Area 74638 Waldenburg Singaperumal Koil, Kancheepuram Dist., Germany Tamil Nadu – 603 204, INDIA Phone: +49 7942 943-0...

  • Page 4: Explanation Of The Symbols

    Explanation of the symbols Explanation of the symbols Symbols in these operating instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Danger due to energised parts Warning notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation.

  • Page 5: Symbols On The Device

    Safety notes Symbols on the device Symbol Meaning CE marking according to the currently applicable directive. 05594E00 According to marking, device approved for hazardous areas. 02198E00 Safety notes Operating instructions storage • Read the operating instructions carefully and store them at the mounting location of the device.

  • Page 6: Function And Device Design

    Function and device design Function and device design DANGER Explosion hazard due to improper use! Non-compliance results in severe or fatal injuries. • Use the device only according to the operating conditions described in these operating instructions. Function DANGER Explosion hazard due to improper use! Non-compliance results in severe or fatal injuries.

  • Page 7: Technical Data

    Technical data Technical data Explosion Protection Global (IECEx) Gas and dust IECEx BVS 14.0071X Ex de IIB + H T* Gb Ex de IIC T* Gb Ex tb IIIC T* °C Db * temperature classes and surface temperatures see technical data Europe (ATEX) Gas and dust BVS 14 ATEX E 110 X...
  • Page 8 Technical data Technical Data Current consumption Lamp 220 ... 230 V AC/DC 0, 50, 60Hz 500 W 2.17 Compensated Uncompensated Lamp 230 V AC, 50 Hz HIT / HST 150 W 0.95 0.79 1.50 0.40 1.80 2.70 HIT / HST 250 W 0.92 1.30 2.00...
  • Page 9 Technical data Technical Data Inrush current max. light fittings per circuit breaker with the maximum network impedance of 1 Ohm: compensated uncompensated HIT/HST HIT/HST 500 W 150 W 250 W 400 W 150 W 250 W 400 W B10A B16A B20A B25A C10A...

  • Page 10: Transport And Storage

    Alternative material: Bracket: • stainless steel SS304 (1.4301 or V2A) without powder-coated For further technical data, see www.r-stahl.com. Transport and storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) and vibration-free.

  • Page 11: Mounting And Installation

    Mounting and installation Mounting and installation DANGER Explosion hazard due to incorrect installation of the device! Non-compliance results in severe or fatal injuries. • Carry out installation strictly according to the instructions and national safety and accident prevention regulations to maintain the explosion protection.

  • Page 12: En 7.2 Mounting / Dismounting, Operating Position

    Mounting and installation Mounting / dismounting, operating position DANGER Explosion hazard due to inadmissible heating! Non-compliance results in severe or fatal injuries. • Avoid external heat sources and/or direct sunlight (risk of change of temperature class or change of maximum permissible surface temperature).
  • Page 13 Mounting and installation Mounting the floodlight with halogen lamp QT • minimum mounting angle 16679E00 16681E00 16677E00 Wall mounting Ceiling mounting Ground mounting • maximum mounting angle 16680E00 16682E00 16678E00 Wall mounting Ceiling mounting Ground mounting 224476 / 6121605300 Floodlight 2018-04-05·BA00·III·en·05 Series 6121...
  • Page 14 Mounting and installation Mounting of floodlight with halogen metal halide lamp HIT und high-pressure sodium lamp HST • minimum mounting angle 16664E00 16666E00 16662E00 Wall mounting Ceiling mounting Ground mounting • maximum mounting angle 16663E00 16665E00 16667E00 Wall mounting Ceiling mounting Ground mounting Floodlight 224476 / 6121605300...

  • Page 15: Installation

    Mounting and installation Mounting of accessories 16597E00 (1) Ring eye for additional prevention of dropping the device (2) Wall bracket for ceiling, wall or floor mounting (3) Anti-glare frame (4) Protective wire grid (5) Lamp Installation 7.3.1 Opening and Closing of the Enclosure DANGER Explosion hazard due to hot built-in components! Accidents or fatal injury are almost certain to happen!
  • Page 16 Mounting and installation Recommendation Opening and closing of the floodlight by using a opener from R. STAHL Schaltgeräte GmbH. 16994E00 16995E00 Lamp enclosure Opening • Loosen the safety screw (1). • Unscrew the cover (2). Proceed in reverse order to close.
  • Page 17 • Place the cover (2). • Tighten the screws (1) (tightening torque 2.5 Nm). 7.3.2 Cable entries Please observe the tightening torque for luminaires with installed cable glands and stopping plugs from R. STAHL Schaltgeräte GmbH. Tightening torque Connection thread Pressure screw Cable gland 8161 M20 x 1.5...
  • Page 18 5 Stopping plugs (possibility to use an additional cable entry) 19928E00 Luminaires with approved cable glands and stopping plugs; not supplied by R. STAHL Schaltgeräte GmbH WARNING Cable glands and stopping plugs which are not approved. Explosion protection is impaired! •...
  • Page 19 Mounting and installation Connection terminals Standard Spring clamp Optional Spring clamp terminals up to 4 mm terminal up to 6 mm 3-pole = phase = neutral conductor 16653E00 = protective conductor 16658E00 Connection terminal only for version 6121/..-..-..-...-88.-. Note: • Multi tapping 230 V / 240 V with 50 Hz / 60 Hz is possible at site. •...

  • Page 20: Commissioning

    Commissioning 7.3.4 Insert lamp Open the lamp enclosure (see chapter "Opening and closing of the enclosure") • Unscrew the screws (1). • Unscrew the cover (2). Insert the lamp • Screw the lamp (4) hand-tight into the lamp holder. Close the lamp enclosure •...

  • Page 21: Operation

    The ballast is defective. Replace the ballast. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number of the device • Purchase information •...
  • Page 22 Maintenance and repair The following tests and measures must be carried out during regular maintenance. Check Measures the permissible ambient temperature If exceeding the permissible ambient temperature or falling below the device must be taken out of operation. the enclosure components for formation of Replace the exchangeable enclosure cracks and damage.
  • Page 23 Maintenance and repair 10.1.1 Replacement of lamps DANGER Explosion hazard due to hot built-in components! Accidents or fatal injury are almost certain to happen! • Only open the enclosure in switched-off state. • The device must be allowed to cool down for at least 15 minutes before opening it.

  • Page 24: 10.2 Repair

    • Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the www.r-stahl.com website.

  • Page 25: Accessories And Spare Parts

    NOTICE Malfunction or damage to the device due to the use of non-original components. Non-compliance can result in material damage. • Use only original accessories and spare parts from R. STAHL Schaltgeräte GmbH. Accessories and Spare Parts Designation Figure Description Art.
