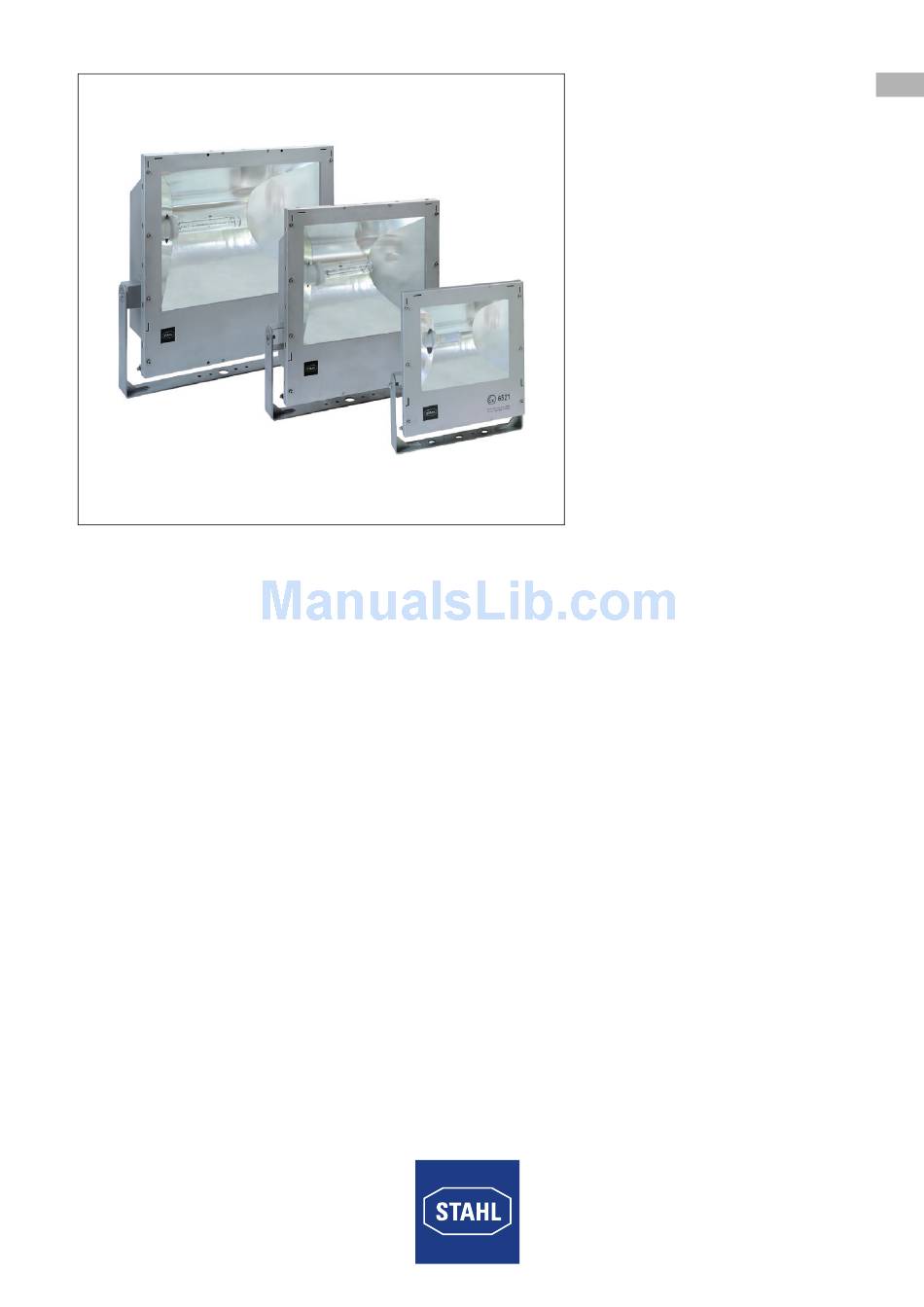

- Page 1 Operating instructions Additional languages www.stahl-ex.com Floodlight Series 6521/4...
-
Page 2: Table Of Contents
10.3 Returning the device ..................20 Disposal ......................21 Accessories and Spare parts ................21 General Information Manufacturer R. Stahl Schaltgeräte GmbH R. STAHL (P) LTD., Plot No. - 5 Am Bahnhof 30 Malrosapuram Road, Sengundram Indl. Area 74638 Waldenburg Singaperumal Koil, Kancheepuram Dist., Germany Tamil Nadu Ð... -
Page 3: En En En
They are legally binding in all legal affairs. Conformity with standards and regulations See certificates and EC Declaration of Conformity: www.stahl-ex.com. The device has IECEx approval. See IECEx homepage: http://iecex.iec.ch/ Further national certificates can be downloaded via the following link: http://www.r-stahl.com/downloads/certificates.html. -
Page 4: En 2.2 Warning Notes
Safety notes Warning notes DANGER Danger to persons Non-compliance with the instruction results in severe or fatal injuries to persons. WARNING Danger to persons Non-compliance with the instruction can result in severe or fatal injuries to persons. CAUTION Danger to persons Non-compliance with the instruction can result in light injuries to persons. -
Page 5: Intended Use
Function and device design Intended Use The luminaire is equipment The floodlight 6521 is equipment • for lighting areas, work spaces and objects • can be used indoors and outdoors • for stationary mounting • for use in Zones 21, 2, 22 and in the safe area •... -
Page 6: En 4.2 Device Design
Function and device design Device design 17215E00 1 - Lamp enclosure 4 - Mounting bracket 2 - Cable gland 5 - Lamp holder 3 - Opening for restricted breathing test 6 - Connection terminal Floodlight 250341 / 6521615300 Series 6521/4 2015-12-04·BA00·III·de·00... -
Page 7: En Technical Data
Technical data Technical data Explosion Protection Global (IECEx) Gas and dust IECEx TUR 10.0014 Ex nRc IIC T Ex tb IIIC T IP66 Europe (ATEX) TÜV 11 ATEX 7008 E II 3 G Ex nRc IIC T Dust TÜV 10 ATEX 7875 E II 2 D Ex tb IIIC T °C IP66 See selection table... - Page 8 Technical data Technical Data Electrical data Rated operational 220 ... 240 V AC / DC ±6%; 0, 50, 60 Hz voltage Power Type 500 W 2.17 A 2.17 A 1000 W 4.35 A 4.35 A 230 V AC ±6%; 50 Hz compensated uncompensated Power...
- Page 9 Technical data Technical Data 208 V AC ±6%; 60 Hz compensated uncompensated Power Type 70 W HST / HIT 0.39 A 0.50 A 0.92 1.00 A 1.30 A 0.37 150 W HST / HIT 0.80 A 1.50 A 0.94 1.80 A 2.70 A 0.42 400 W...
- Page 10 Technical data Technical Data Inrush current maximum number of light fittings per miniature circuit breaker: compensated Type HIT / HST 500 W 1000 W 70 W 100 W 150 W 250 W 400 W 600 W B10A B16A B20A B25A C10A C16A C20A...
-
Page 11: Transport And Storage
Transport and storage Technical Data Mounting / Installation Operating position Horizontal lamp axis Cable entry Standard 1 x M20 x 1.5 cable gland, clamping area d 4 ... 13 mm 1 x M20 x 1.5 stopping plug 1 x M20 x 1.5 cable entry (with blind plugs - as test holes) Special specific costumer order possible Connection option... -
Page 12: Mounting And Installation
Mounting and installation Mounting and installation DANGER Explosion hazard due to incorrect installation of the device! Non-compliance results in severe or fatal injuries. • Carry out installation strictly according to the instructions and national safety and accident prevention regulations to maintain the explosion protection. -
Page 13: Mounting / Dismounting, Operating Position
Mounting and installation Dimensional Drawings (All Dimensions in mm) - Subject to Alterations Ø 250 [ 9,84] Ø Ø Ø 09725E00 09724E00 Mounting base (rotatable) Pole mounting attachment Accessories Mounting / dismounting, operating position The mounting position of the floodlight is optional. The lamp axis must be horizontal. DANGER Explosion hazard due to inadmissible heating! Non-compliance results in severe or fatal injuries. -
Page 14: Installation
Mounting and installation Installation 7.3.1 Electrical connections DANGER Risk of electric shock due to improper opening! Non-compliance results in severe or fatal injuries. • Open luminaires without switch only in de-energized state (see information plate on the lock)! • Loosen the M6 cover screws •... -
Page 15: Commissioning
Use of cable glands and stopping plugs supplied by R. STAHL Schaltgeräte GmbH. • see data sheet on our homepage www.stahl-ex.com. Please observe the following, if cable glands and stopping plugs are used, but not provided by R. STAHL Schaltgeräte GmbH: •... -
Page 16: Operation
The ballast is defective. Replace the ballast. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number of the device • Purchase information •... -
Page 17: 10.1 Maintenance
Maintenance and repair Maintenance and repair WARNING Risk of electric shock or malfunctioning of the device due to unauthorized work! Non-compliance can result in severe injuries and material damage. • Work performed on the device must only be carried out by appropriately authorized and qualified electricians. - Page 18 Maintenance and repair The following tests and measures must be carried out during regular maintenance. Check Measures the permissible ambient temperature If exceeding the permissible ambient temperature or falling below the device must be taken out of operation. the enclosure components for formation of Replace the exchangeable enclosure cracks and damage.
- Page 19 Recommendation Check the luminaire by using the handheld testing instrument for restricted breathing from R. Stahl Schaltgeräte GmbH (see data sheet). The test should only be carried out at constant temperature conditions. In order to test restricted breathing (pressure test), the luminaire is equipped with a cable entry with red stopping plugs.
-
Page 20: 10.2 Repair
"www.stahl-ex.com" under "Downloads > Customer service": • Download the service form. • Fill out the service form. • Send the device along with the service form in the original packaging to R. STAHL Schaltgeräte GmbH. Floodlight 250341 / 6521615300 Series 6521/4 2015-12-04·BA00·III·de·00... -
Page 21: Disposal
Malfunction or damage to the device due to the use of non-original components. Non-compliance can result in material damage. • Use only original accessories and spare parts from R. STAHL Schaltgeräte GmbH. For accessories and spare parts, see data sheet on our homepage www.stahl-ex.com.
