Summary of Contents for Stahl 6525/2224-3501-6015-242

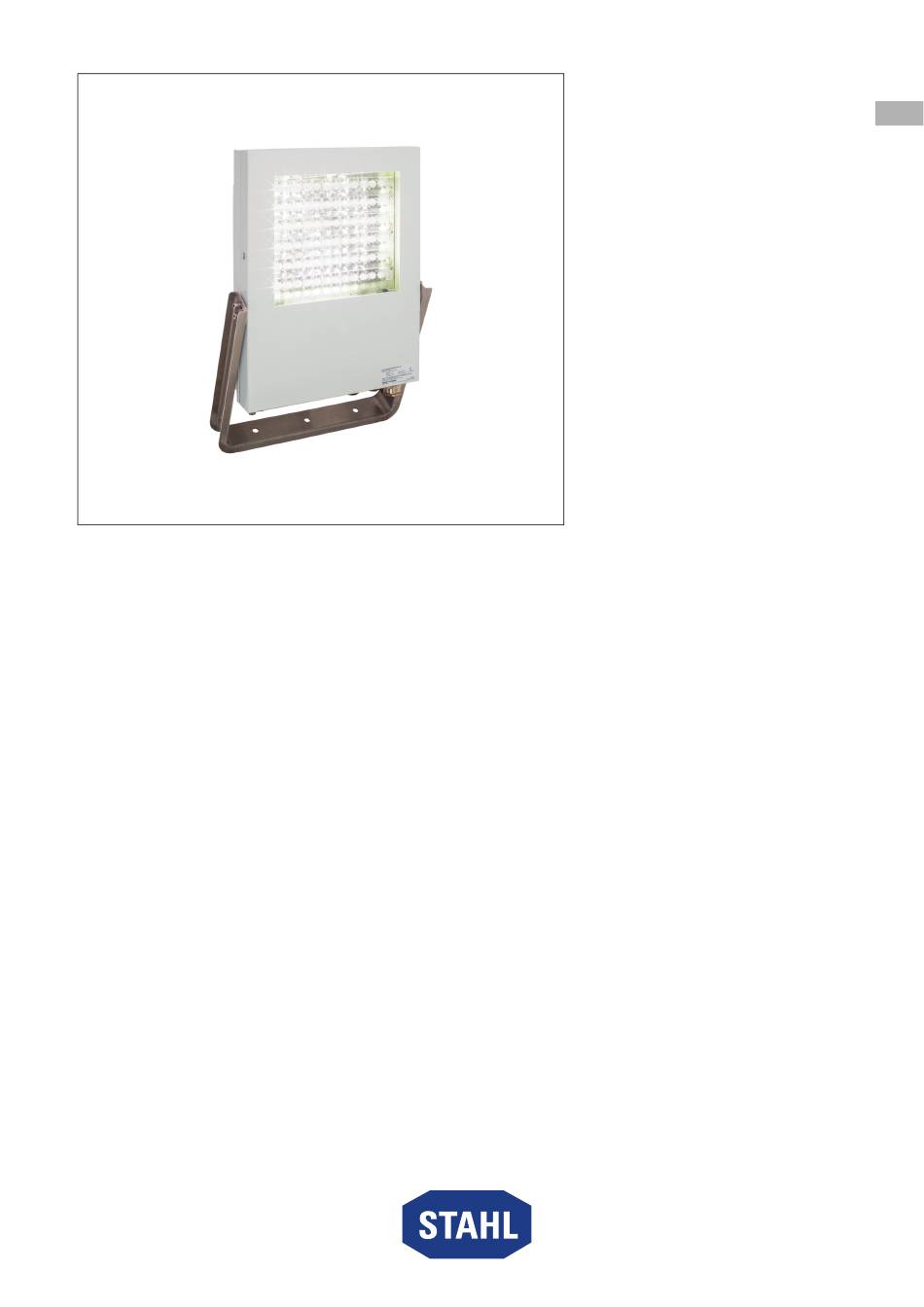

- Page 1 Operating instructions Additional languages r-stahl.com Floodlight LED Series 6525/2...
-
Page 2: Table Of Contents
Contents General Information ....................3 Manufacturer .......................3 Information regarding the operating instructions ..........3 Further documents ....................3 Conformity with standards and regulations ............3 Explanation of the symbols .................4 Symbols in these operating instructions .............4 Warning notes .....................4 Symbols on the device ..................5 Safety notes ......................5 Operating instructions storage ................5 Safe use ......................5... -
Page 3: General Information
General Information General Information Manufacturer R. STAHL Schaltgeräte GmbH R. STAHL (P) LTD., Plot No. - 5 Am Bahnhof 30 Malrosapuram Road, Sengundram Indl. Area 74638 Waldenburg Singaperumal Koil, Kancheepuram Dist., Germany Tamil Nadu – 603 204, INDIA Phone: +49 7942 943-0... -
Page 4: Explanation Of The Symbols
Explanation of the symbols Explanation of the symbols Symbols in these operating instructions Symbol Meaning Tips and recommendations on the use of the device Danger due to explosive atmosphere Danger due to live components Risk of damage to the eyes caused by optical radiation Warning notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation. -
Page 5: Symbols On The Device
• Use the device in accordance with its intended and approved purpose only. • Always consult R. STAHL Schaltgeräte GmbH if using the device under operating conditions which are not covered by the technical data. • We cannot be held liable for damage to the device caused by incorrect or unauthorised use or non-compliance with these operating instructions. -
Page 6: 3.3 Intended Use
Function and device design Intended Use The luminaire is equipment • for lighting areas, work spaces and objects • can be used indoors and outdoors • for stationary mounting • for use in Zones 21, 2, 22 and in the safe area Modifications and alterations DANGER Explosion hazard due to modifications and alterations to the device! -
Page 7: Device Design
Function and device design Device design 22206E00 External PE connection Mounting bracket Stopping plug Connection terminal Cable entry Cover connection enclosure Enclosure Seal connection enclosure Control gear Luminaire glass cover Heat sink 282892 / 652560300080 Floodlight LED 2023-06-14·BA00·III·en·07 Series 6525/2... -
Page 8: Technical Data
Technical data Technical data Explosion Protection Global (IECEx) Gas and dust IECEx EPS 15.0032 Ex nR IIC T6 ... T4 Gc (Type 6525/21..) Ex db ec IIC T4 Gc (Type 6525/22..) Ex tb op is IIIC T80 °C ... T100 °C Db Europe (ATEX, UKEX) Gas and dust EPS 15 ATEX 1 991, CML 21UKEX1562... - Page 9 Technical data Technical Data Electrical data Control gear Rated voltage 6525/21..: AC: 110 to 277 V ±10%; 50 to 60 Hz DC: 140 to 225 V ±10% 6525/22..: without DALI AC: 110 to 277 V ±10%; 50 to 60 Hz DC: 196 to 250 V ±10% with DALI AC: 100 to 277 V ±10%;...
- Page 10 Technical data Technical Data Power factor > 0.95 ( 13% Surge Protection 6525/21.. (nR version): N - PE: 10 kV L - PE: 10 kV L - N: 6 kV 6525/22.. (ec version): N - PE: 4 kV L - PE: 4 kV L - N: 2 kV Protection class I ...
- Page 11 Technical data Technical Data Light colour: Neutral white Colour temperature [K]: 5,000 K Colour rendering R : )80 Application example: lighting of desktops 6525/2...-1...- 6525/2...-3...- 6525/2...-5...- …5-… …5-... …5-... Variant 100 W 160 W 225 W Power consumption [W] Wide-beam Luminous flux [lm] 10,824 15,550...
- Page 12 Technical data Technical Data Light colour: Cool white Colour temperature [K]: 5,700 K Colour rendering R : )70 Application example: Lighting outside areas 6525/2...-1...- 6525/2...-3...- 6525/2...-5...- ...1-… ...1-..1-... Variant 100 W 160 W 225 W Power consumption [W] Wide-beam Luminous flux [lm] 12,315 17,640...
- Page 13 Technical data Technical Data Luminous flux • during DC operation to 50% (only type 6525/22..) decline 6525/21..- 120 % 100 % 80 % 100 W 160 W 60 % 225 W 40 % 20 % 30 °C 35 °C 40 °C 45 °C 50 °C 55 °C...
- Page 14 Technical data Technical Data Ambient conditions Functional ambient 4,000 K, 5,000 K, 5,700 K: temperature range Variant 100 W: -50* to +60 °C Variant 160 W: -60* to +60 °C Variant 225 W: -60* to +60 °C 2,700 K: Variant 100 W: -50* to +55 °C Variant 160 W: -60* to +55 °C Variant 225 W: -60* to +55 °C * Note: Possible to operate the luminaire below -40 °C, provided the luminaire...
-
Page 15: Transport And Storage
2 V. This corresponds with a maximum conductor length of 300 m, with a conductor cross-section of 1.5 mm For further technical data, see r-stahl.com. Transport and storage • Transport and store the device only in the original packaging. -
Page 16: Mounting And Installation
Mounting and installation Mounting and installation DANGER Explosion hazard due to electrostatic discharge! Non-complicance results in severe or fatal injuries. Do not use the device in strong charge generating environments! The following processes/activities should be avoided: • accidental friction • particle currents DANGER Explosion hazard due to incorrect installation of the device! Non-compliance results in severe or fatal injuries. -
Page 17: Dimensions / Fastening Dimensions
Mounting and installation Dimensions / fastening dimensions Dimensional drawings (all dimensions in mm [inches]) – Subject to modification 84 [3,31] 70 [2,76] 400 [15,75] 42 [1,65] 400 [15,75] 42 [1,65] 22203E00 22204E00 Floodlights Floodlights Heat sink with fins Heat sink without fins (6525/21..: Variant 225 W (6525/21..: Variant 100 W, 6525/22..: Variant 160 W,... -
Page 18: 7.2 Mounting / Dismounting, Operating Position
Mounting and installation Dimensional drawings (all dimensions in mm [inches]) – Subject to modification 330 [12,99] 330 [12,99] 4 x M6 4 x M6 555,50 [21,87] 555,50 [21,87] 22209E00 22208E00 Floodlights with ring eyes Floodlights with ring eyes Heat sink with fins Heat sink without fins (6525/21..: Variant 225 W (6525/21..: Variant 100 W,... - Page 19 Mounting and installation Mounting alignment 22244E00 Pole mounting 22243E00 Mounting with fall protection The floodlight can be further protected in unexpected situations by mounting 2 ring eyes (1). 22242E00 282892 / 652560300080 Floodlight LED 2023-06-14·BA00·III·en·07 Series 6525/2...
-
Page 20: Installation
Mounting and installation Installation 7.3.1 Opening and Closing of the Enclosure DANGER Risk of electric shock due to improper opening! Non-compliance results in severe or fatal injuries. • Only open luminaires in a de-energised state. NOTICE Danger due to electrostatic discharge. Electronic components can be destroyed if touched. - Page 21 Mounting and installation 7.3.2 Electrical connections Electrical connection Observe the maximum clamping possibility of the connection terminals (see chapter "Technical data"). Observe the following when connecting to the electrical connection: • Clamping must be carried out precisely. • Do not clamp any part of the conductor insulation. •...
- Page 22 Mounting and installation Loop in/loop out wiring of the mains connection DANGER Explosion hazard due to wrong electrical lines and/or cable entries and cable glands! Non-compliance results in severe or fatal injuries. • Only use electrical lines, cable entries and cable glands which meet the special requirements for the service temperature.
- Page 23 Mounting and installation Version ≤ 10 A 10 A ≤ I ≤ 16 A (2,700 K) Variant at ambient Electrical lines Cable temperature entry, cable gland 6525/21..-17..-..-... 100 W +50 to +55 °C ≥ +75 °C ≥ +90 °C ≥ +80 °C 6525/21..-15..-..-...
- Page 24 Mounting and installation 7.3.3 Cable entries Luminaires with cable entries, cable glands and stopping plugs which are not supplied by R. STAHL Schaltgeräte GmbH DANGER Explosion hazard due to impermissible cable entries, cable glands and stopping plugs! Non-compliance results in severe or fatal injuries.
-
Page 25: Commissioning
Commissioning Commissioning DANGER Explosion hazard due to incorrect installation! Non-compliance results in severe or fatal injuries. • Check the device for proper installation before commissioning. • Comply with national regulations. DANGER Explosion hazard due to incorrect installation! Non-compliance results in severe or fatal injuries. •... -
Page 26: Maintenance, Overhaul, Repair
Maintenance, Overhaul, Repair Maintenance, Overhaul, Repair DANGER Explosion hazard due to hot built-in components! Non-compliance results in severe or fatal injuries. • Only open the enclosure in switched-off state. CAUTION Risk of electric shock or malfunction of the device due to unauthorized work! Non-compliance can result in light injuries! •... - Page 27 Recommendation Check the luminaire by using the handheld testing instrument for restricted breathing from R. STAHL Schaltgeräte GmbH (see data sheet). The test should only be carried out at constant temperature conditions. If the luminaire is only marked with the type of protection for dust (IIIC), the cable entries and stopping plugs do not need to meet the requirements for restricted breathing (nR).
-
Page 28: Repair
0.27 kPa (2.7 mbar) Repair DANGER Explosion hazard due to improper repair! Non-compliance results in severe or fatal injuries. • Repair work on the devices must be performed only by R. STAHL Schaltgeräte GmbH. Floodlight LED 282892 / 652560300080 Series 6525/2 2023-06-14·BA00·III·en·07... -
Page 29: Returning The Device
• Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the r-stahl.com website. -
Page 30: 11 Disposal
Malfunction or damage to the device due to the use of non-original components. Non-compliance can result in material damage. • Use only original accessories and spare parts from R. STAHL Schaltgeräte GmbH. For accessories and spare parts, see data sheet on our homepage r-stahl.com.
