BS13 connected socket outlet - 1 gang and 2 gang
5 742 56/57/58/59/66/67/68/69
Requires prior installation of a connected starter pack "... with Netatmo".
Control Modul
Contents:

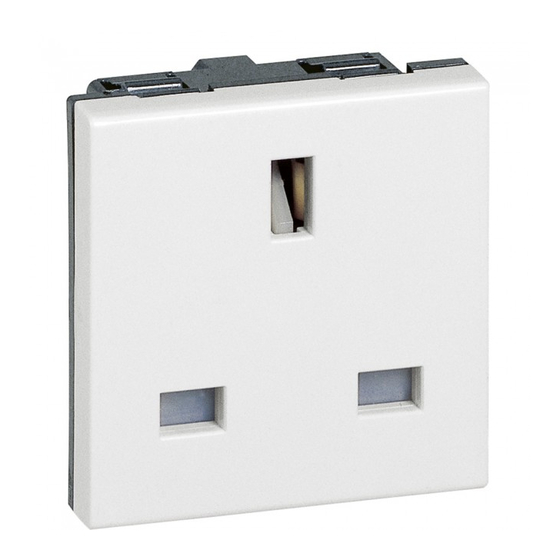

BS13 connected socket outlet
1-gang
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW
Safety instructions
This product should be installed in compliance with installation rules, preferably by a qualified electrician.
Incorrect installation and/or incorrect use can lead to risk of electric shock or fire.
Before carrying out the installation, read the instructions and take account of the product's specific
mounting location.
Do not open up, dismantle, alter or modify the device except where specifically required to do so by the
instructions. All Legrand products must be opened and repaired exclusively by personnel trained and
approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights
to replacement and guarantees. Use only Legrand brand accessories.
Gateway
OR
OR
Leave home/back home
general control
BS13 connected socket outlet
2-gang
Advertisement
Table of Contents
Related Manuals for LEGRAND BS13
Summary of Contents for LEGRAND BS13
- Page 1 Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.
- Page 2 BS13 connected socket Wireless switches 1-gang or 2-gang outlet 1-gang or 2-gang (peripherals) for all control points (not included in this pack) Do not use: a connected switch (with dimmer option) to control a connected socket outlet or a traditional socket outlet.
- Page 3 Necessary safety precautions Make sure that the power Switch OFF the power is OFF before continuing at the main circuit with the installation. breaker Install the connected socket outlet Wire the connected socket outlet 2.5 mm2 rigid wire N (neutral) = blue recommended L (live) = any except blue and green/yellow (earth) = green/yellow...
- Page 4 To add a connected product to your connected installation, you should follow the instructions: - in the Legrand Home + Control application (Settings/Add a new product section) - or consult the user manual on legrand.fr www.legrand.fr/reference/574257 LEGRAND - Pro and Consumer Service - BP 30076 87002 LIMOGES CEDEX FRANCE •...
- Page 5 Legrand املن ت َ ج خاص ا ً به. ال تفتح أو تفك أو تع د ّ ل أو تح و ِّ ر املن ت َ ج ما مل ي ُ رش َ إىل ذلك بشكلٍ محدد يف النرشة. فكل منتجات...
- Page 6 أو مجموعة أو مجموعة مفاتيح السلكية - مجموعة واحدة أو مجموعتان - BS13 مخرج مقبس متصل ()طرفية( لجميع نقاط التحكم )غير مضمنة في هذه الحزمة مجموعة واحدة أو مجموعتان .ال تستخدم: مفتا ح ً ا متص ال ً (مع خيار آلية ضبط شدة اإلضاءة) للتحكم يف مخرج مقبس متصل أو مخرج مقبس تقليدي...
- Page 7 احتياطات السالمة الضرورية قم بإيقاف تشغيل الطاقة عند قاطع تأكد من إيقاف تشغيل الطاقة قبل الدائرة الرئييس .متابعة التركيب إيقاف التشغيل قم بتركيب مخرج المقبس المتصل قم بتوصيل أسالك مخرج المقبس المتصل )محايد( = أزرقN يوصى باستخدام سلك قوي بسمك 5.2 مم...
- Page 8 :إلضافة منتج متصل إىل الرتكيب املتصل لديك، يجب اتباع اإلرشادات ( الرئيسية + تطبيق التحكم )قسم اإلعدادات/إضافة منتج جديدLegrand - في صفحة legrand.fr - أو م ر اجعة دليل المستخدم في www.legrand.fr/reference/574257 خدمة املتخصصني والعمالء BP 30076 - - LEGRAND 87002 LIMOGES CEDEX FRANCE •...
