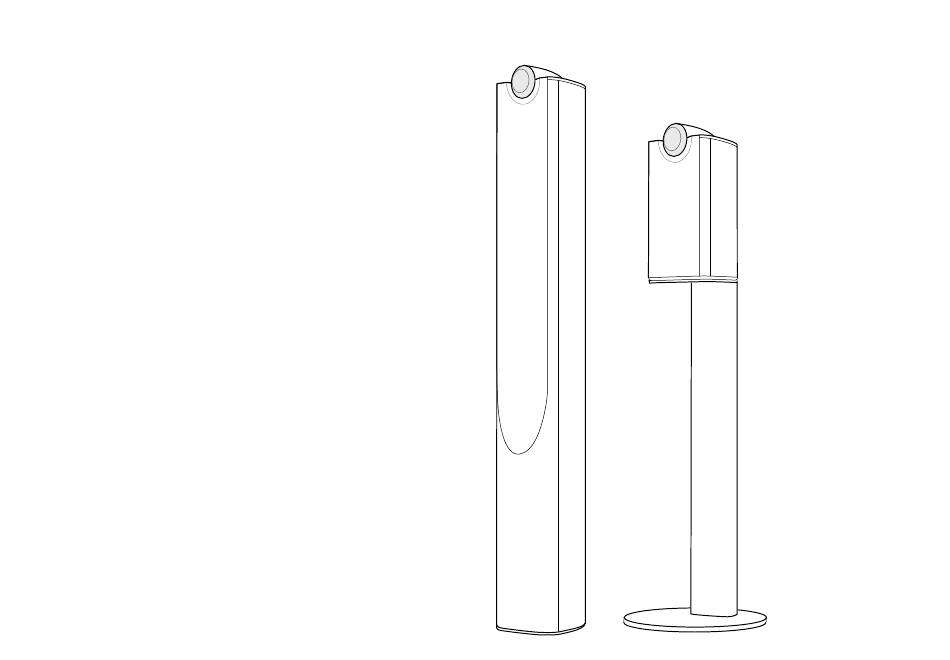

- Page 1 XT Series Service Manual...
- Page 2 Table of Contents Introduction Spare Part Numbers Exploded Diagrams Removing the Tweeter Replacing the Tweeter Removing a Midrange/Bass Unit Replacing a Midrange/Bass Drive Unit...
- Page 3 Introduction This manual is intended to demonstrate our recommended procedures for servicing the XT2 and XT4 loudspeakers. These procedures should be carried out by B&W approved suppliers Figure 1a and engineers only. Any attempt at dismantling the speakers by non-approved personnel ����������������...
- Page 4 Exploded Diagrams Figure 1b - XT2 Exploded Diagram Figure 1b - XT4 Exploded Diagram � � � � � � � � � � � � � � � � � � � � � � � � � � �...
- Page 5 Removing/Replacing the Tweeter Removal Figure 2 Figure 3 1. Carefully remove the cloth grille. (Figure 2) 2. Use two small pins to carefully pull the tweeter grille away from the tweeter assembly. It is important to use the pins at opposite sides of the grille because the magnet may pull the frame onto the tweeter dome causing damage.
- Page 6 Removing/Replacing the Tweeter Replacement Figure 6 Figure 7 1. With the location pip towards you, connect the replacement tweeter, ensuring that the red wire is connected to the terminal marked red, and that the tapering tube is laying in between the two wires. (Figure 6a & 6b) 2.
- Page 7 Removing/Replacing a Midrange/Bass Drive Unit Removal Figure 10 Figure 11 1. First remove the tweeter. 2. Remove the grommets from the baffle into which the cloth grille attaches. (Figure 10) 3. Remove the screws from underneath the grommets and the baffle should come loose. (Figure 11) 4.
- Page 8 Removing/Replacing a Midrange/Bass Drive Unit Replacement Figure 14 1. Connect the wires to the replacement driver observing the polarity, and locate it into the appropriate opening. The terminals are deliberately made different sizes so that it is difficult to get the polarity wrong. (Figure 14) 2.
- Page 9 B&W Group Ltd UK Group (UK Sales) Copyright © B&W Group Ltd. E & OE Dale Road T +44 1903 221 500 Worthing West Sussex E uksales@bwgroup.com Kevlar is a registered trademark of DuPont BN11 2BH England B&W Group North America Printed in England.
