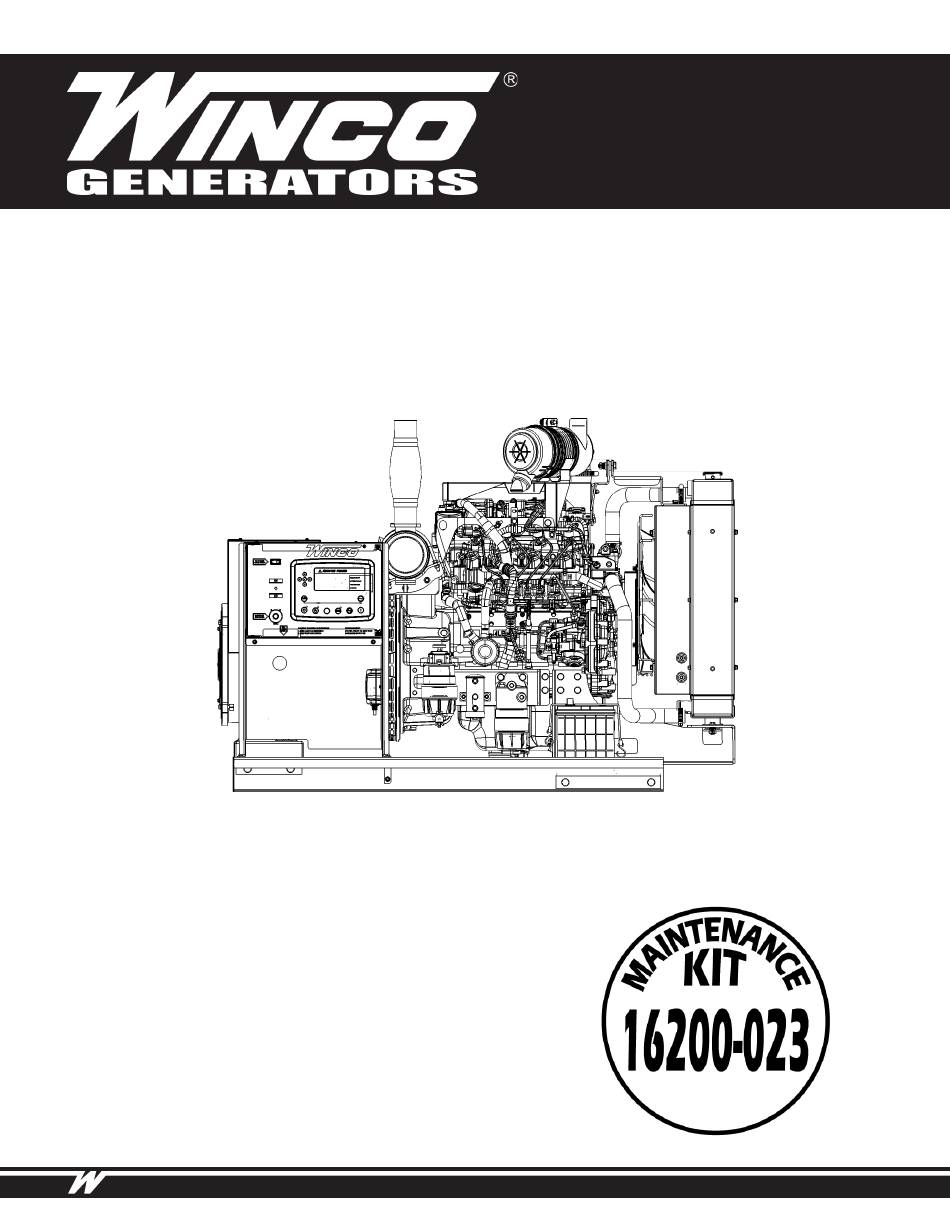

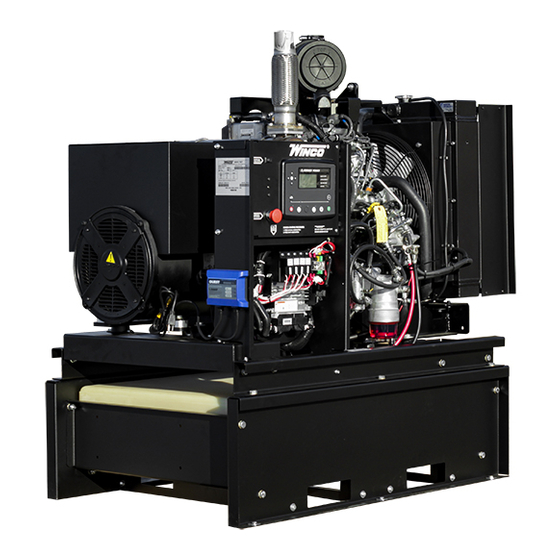

DE23I4-XX/1
GENERATOR
INSTALLATION AND
OPERATORS MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as yours.
If you should ever need to contact us on this unit, it will help us to
respond to your needs faster.
MODEL __________________________________________________
SERIAL NUMBER _________________________________________
PURCHASE DATE _________________________________________
DEALER NAME ___________________________________________
DEALER PHONE # ________________________________________
www.wincogen.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winco DE23I4 1 Series
Summary of Contents for Winco DE23I4 1 Series
- Page 1 OPERATORS MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us on this unit, it will help us to respond to your needs faster.
-
Page 2: Table Of Contents
Should you experience a problem please follow the “Troubleshooting Tables” near the end of this manual. The warranty listed in the manual describes what you can expect from WINCO should you need service assistance in the future. OPM-147/B... -
Page 3: Safety Information
SAFETY INFORMATION F. Follow local codes for closeness to combustible material. SAVE THESE INSTRUCTIONS 3. DEADLY EXHAUST GAS - This engine generator set has been designed and Exhaust fumes from any gasoline engine contain carbon manufactured to allow safe, reliable performance. Poor monoxide, an invisible, odorless and deadly gas that must maintenance, improper or careless use can result in be mixed with fresh air. -
Page 4: Specifications
SPECIFICATIONS DE23I4 Standby Prime MODEL DE23I4-03 DE23I4-04 DE23I4-17 DE23I4-18 DE23I4-03 DE23I4-04 DE23I4-17 DE23I4-18 GENERATOR Watts 22,000 23,000 23,000 23,000 19,800 20,700 20,700 20,700 Volts 120/240 120/208 120/240 277/480 120/240 120/208 120/240 277/480 Phase Single Three Three Three Single Three Three Three Amps Hertz... -
Page 5: Introduction
Go to the WINCO website for a list of engine dealers (www. wincogen.com) or contact the WINCO Service Department. The rated power of each engine-generator is limited by the temperature, altitude, and all other ambient conditions specified by the engine manufacturer. -
Page 6: Preparing The Unit
A Start-Up Completion & Warranty Validation Form was sent along with this manual. This must be completed and returned to WINCO Inc. within 180 days of the factory This generator set is equipped with integrated fork pockets invoice date. If this form is not returned, the Warranty may on the fuel tank to allow the generator to be lifted from any be voided. -
Page 7: Installation
0.75 in. to the edge of the structure or other solid surfaces. The radiator is mounted on rubber vibration The WINCO installation manual OPM-112 contains isolators that allow it to move. Placing the duct flange too additional information on indoor installations and... -
Page 8: Exhaust Installation
EXHAUST INSTALLATION INSTALLING THE FUEL LINE WARNING: PERSONAL INJURY Engine-generator sets are properly adjusted before they Improper exhaust installation will allow dangerous gases to leave the factory. Connecting a fuel supply with adequate seep into enclosed spaces causing a hazard to your health supply volume is critical to reliable operation. -
Page 9: Grounding
The NFPA 70 250:34-35 are good technical references. VEHICLE-MOUNTED GENERATOR Your WINCO generator ships with a bonded neutral. When mounted to a vehicle to safely distribute power it is necessary that the generator frame is bonded to the vehicle frame. -
Page 10: Dc Wiring
In order to finalize communication the program will need S1 and S23. to be adjusted using the free DSE configuration software to enable the commutation. Contact Winco service for a list of Note: Any relay closure can be used to start and stop this register values. -
Page 11: Servicing Batteries
WARNING: EQUIPMENT DAMAGE: DANGER: EXPLOSIVE FIRE RISK: This unit is12 Volt and is negative ground. Permanent 1. Never smoke when near batteries. damage will occur if they are connected to a 24 Volt system 2. Do not cause a flame or spark in the battery area. or a positive ground system. -
Page 12: Starting Procedure
We have partnered with a national lubrication oil manufacturer to give you access to Winco private branded premium oil available at comparable prices to conventional oils. See your dealer for additional information. -
Page 13: Coolant
START - Pressing this button from STOP/RESET There is a Pre-Start & Warranty Form that must be filled out will start the engine and run the load. by an Authorized WINCO Service Center. After completing the checklist, the engine-generator set is ready for initial start-up. -
Page 14: Manual Mode
MANUAL MODE button will stop the unit but only after the cool down timers have timed out and there is no remote start signal being sent to the unit. 1. Press and release the MANUAL MODE button. The small LED light next to it should come on. WARNING: EQUIPMENT DAMAGE Always make sure the generator runs under no load for Note: There is no start delay in this mode of operation. -
Page 15: Operating Conditions
OPERATING CONDITIONS Inspect the CV filters and hoses regularly during cold operation looking for signs of freezing. If the line freezes it will cause pressure to build in the crankcase and may cause NORMAL OPERATION an engine seal failure. An optional CV hose heater kit is available to install and is recommended for units operating in temperatures below 14°F. -
Page 16: Maintenance
1. Place a drip pan or suitable container for catching the oil below the drain plug. WINCO has supplied a valve 5. Manually tighten the new oil filter on the mount to hook a customer supplied 5/8” hose to conveniently until it is fit up against the gasket. -
Page 17: Refilling Coolant
REFILLING COOLANT 4. Fully hand-tighten the plug. 5. Dispose of liquid in accordance to local codes. DO NOT 1. Remove radiator cap. Slowly add coolant to the filler dispose or allow liquid to seep into the ground or opening. sewer systems, doing so will cause environmental damage. -
Page 18: Storage
STORAGE MAINTENANCE SCHEDULE PREPARING THE ENGINE FOR A LONG PERIOD Checks In Period of Use Frequency OF INACTIVITY Check for water in the fuel filter Daily In the case of a planned period of inactivity that lasts longer Check Air-Restriction Indicator on Filter Daily than two months, to prevent the interior parts of the Engine Oil Level Daily/Prior to Use... -
Page 19: Trouble Shooting Tables
TROUBLE SHOOTING TABLES Problem Possible Causes Unit will not crank when Digital genset not in AUTO power fails Transfer control switch not in AUTOMATIC position Incorrect wiring between ATS and genset Defective control relay in ATS Fuse(s) blown in the DSE 7310 Defective DSE 7310 Loose or dirty battery terminals Defective starter... -
Page 20: Wiring Size Table
WIRING SIZE TABLE The table below is based on Table 310.15 (B) (16) in the National Electric Code 2014 edition. Allowable ampacitier of insulated conductors rated 0 through 2000V, 75°C through 90°C. Not more than three current-carrying conductors in Raceway, Cable, or Earth (direct buried). Adjust for 40°C (104°F) ambient temperature. -
Page 21: Ecm Diagram
ECM DIAGRAM OPM-147/B... -
Page 22: Dse7310 Wiring Diagram
DSE7310 WIRING DIAGRAM OPM-147/B... -
Page 23: Wiring Diagrams
WIRING DIAGRAMS THREE PHASE AC WIRE HIGH AND LOW WYE THREE PHASE AC WIRING- DELTA SINGLE PHASE 311 WINDING OPM-147/B... - Page 24 Warranty service may be performed by an authorized WINCO Inc. service center only. Service work performed by unauthorized persons will void all warranties. WINCO Inc. shall not be liable for any claim in an amount greater than the purchase price of the product. In no event shall WINCO Inc. be held liable for any special, indirect, consequential or liquidated damages.
