Appendix H Footprint Dimensions

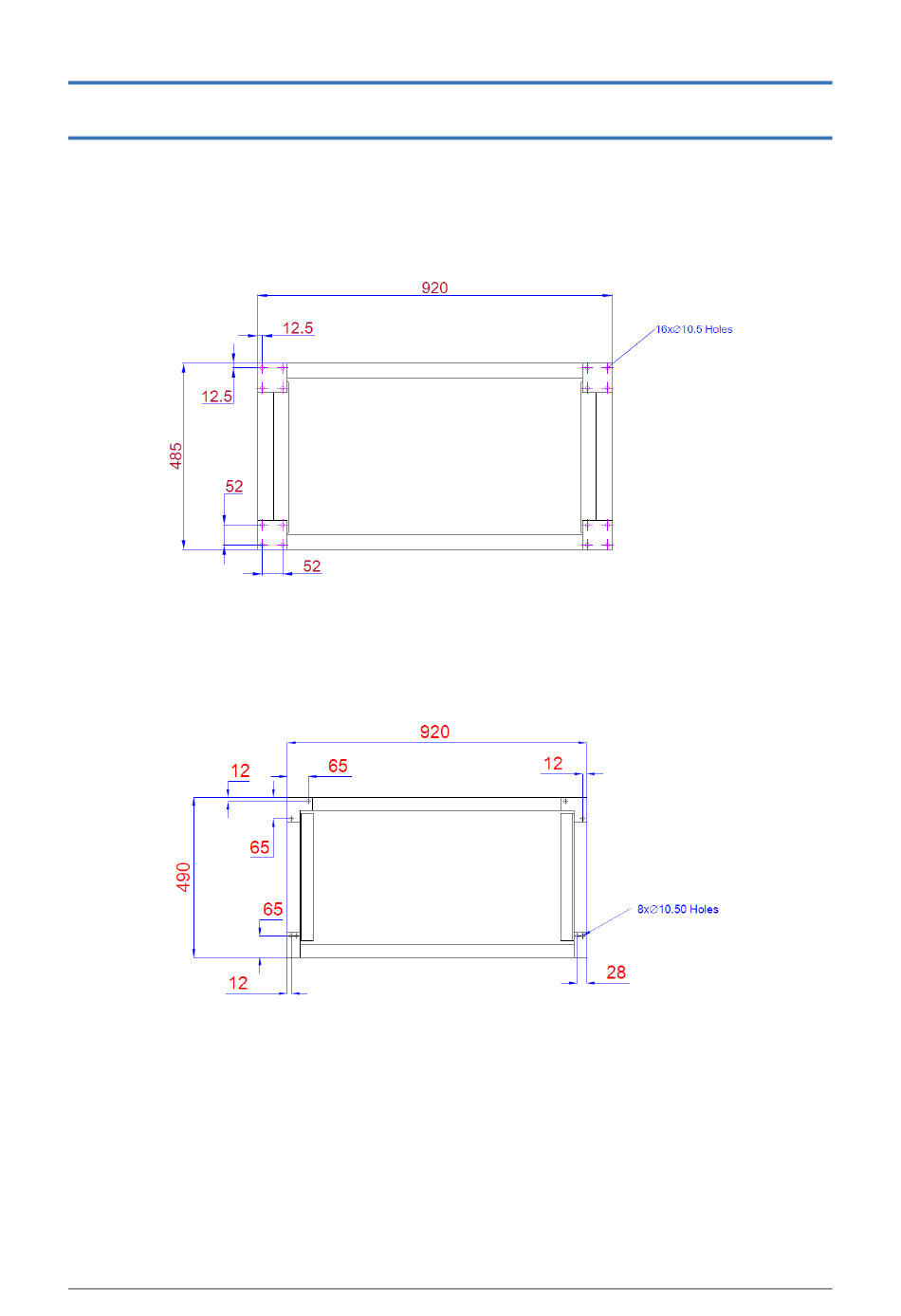

Figure H—1 shows the TRANSFIX 1.6 and MULTITRANS footprint dimensions. All
dimensions are in millimetres (mm). Tolerance is ± 5 mm.
Figure H—1: TRANSFIX 1.6 & MULTITRANS footprint dimensions
Figure H—2 shows the TAPTRANS footprint dimensions. All dimensions are in millimetres
(mm). Tolerance is ± 5 mm.
Figure H—2: TAPTRANS footprint dimensions
MA-001 – TRANSFIX-family Installation Manual – Rev 3.0 18-Jan-16 Page 50 of 55
