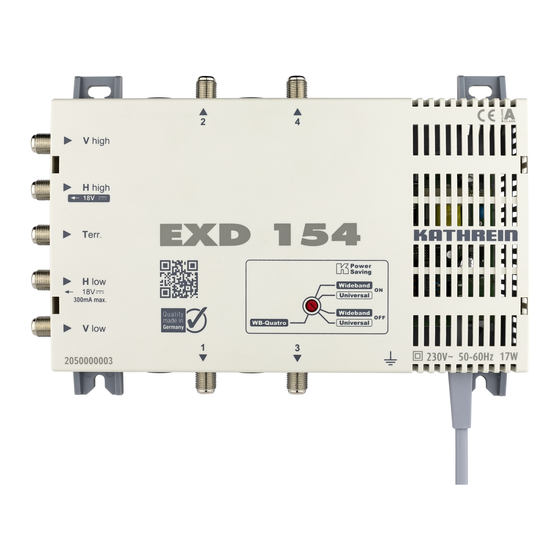

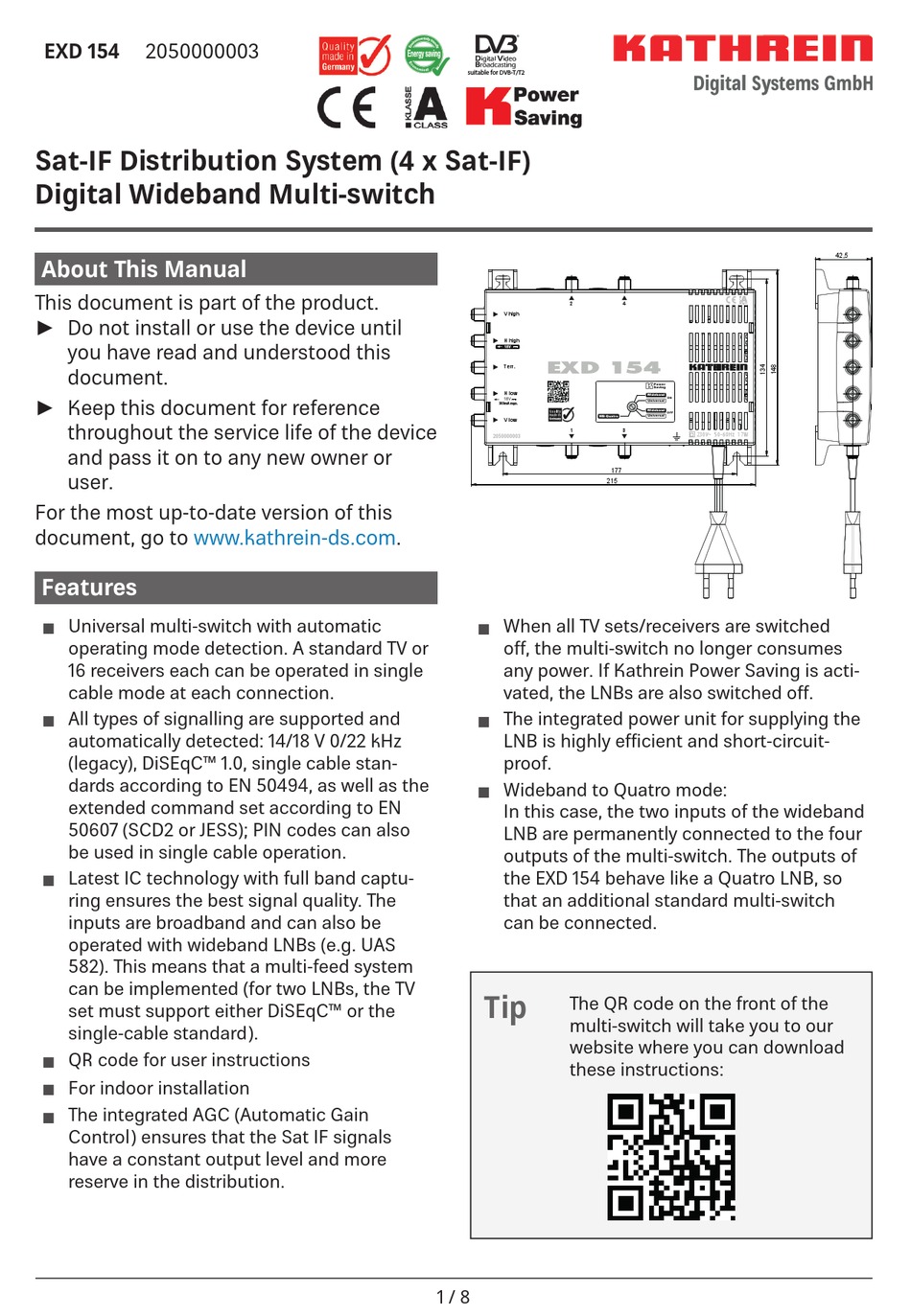

EXD 154
2050000003
Sat-IF Distribution System (4 x Sat-IF)
Digital Wideband Multi-switch
About This Manual
This document is part of the product.
► Do not install or use the device until
you have read and understood this
document.
► Keep this document for reference
throughout the service life of the device
and pass it on to any new owner or
user.
For the most up-to-date version of this
document, go to www.kathrein-ds.com.
Features
Universal multi-switch with automatic
operating mode detection. A standard TV or
16 receivers each can be operated in single
cable mode at each connection.
All types of signalling are supported and
automatically detected: 14/18 V 0/22 kHz
(legacy), DiSEqC™ 1.0, single cable stan-
dards according to EN 50494, as well as the
extended command set according to EN
50607 (SCD2 or JESS); PIN codes can also
be used in single cable operation.
Latest IC technology with full band captu-
ring ensures the best signal quality. The
inputs are broadband and can also be
operated with wideband LNBs (e.g. UAS
582). This means that a multi-feed system
can be implemented (for two LNBs, the TV
set must support either DiSEqC™ or the
single-cable standard).
QR code for user instructions
For indoor installation
The integrated AGC (Automatic Gain
Control) ensures that the Sat IF signals
have a constant output level and more
reserve in the distribution.
suitable for DVB-T/T2
2
V high
H high
EXD 154
Terr.
H low
18V
300mA max.
WB-Quatro
V low
1
2050000003
215
When all TV sets/receivers are switched
o , the multi-switch no longer consumes
any power. If Kathrein Power Saving is acti-
vated, the LNBs are also switched o .
The integrated power unit for supplying the
LNB is highly e cient and short-circuit-
proof.
Wideband to Quatro mode:
In this case, the two inputs of the wideband
LNB are permanently connected to the four
outputs of the multi-switch. The outputs of
the EXD 154 behave like a Quatro LNB, so
that an additional standard multi-switch
can be connected.
Tip
The QR code on the front of the
multi-switch will take you to our
website where you can download
these instructions:
1 / 8
4
Power
Saving
Wideband
ON
Universal
Wideband
OFF
Universal
3
230V~ 50-60Hz 17W
177
