Quickstart Guide
WyreStorm 4x4 HDBaseT Matrix Switcher Kit
with 4 x PoH Receivers (70m/230ft)
MX-0404-POH-KIT

Before Installation

Do Not Hotplug! - Please insert and extract cables carefully with
the power SWITCHED OFF. Connecting and disconnecting while
the unit is powered can result in damage to circuitry.
We strongly recommend using the supplied mounting brackets to
secure the matrix and the accompanying PoH display receivers.
Any sudden movement of these devices could lead to loss of
picture and sound if connections become loose or strained,
resulting in unnecessary service call backs
Remember, always switch off the matrix before unplugging any
inputs or outputs – follow last on, first off protocol.

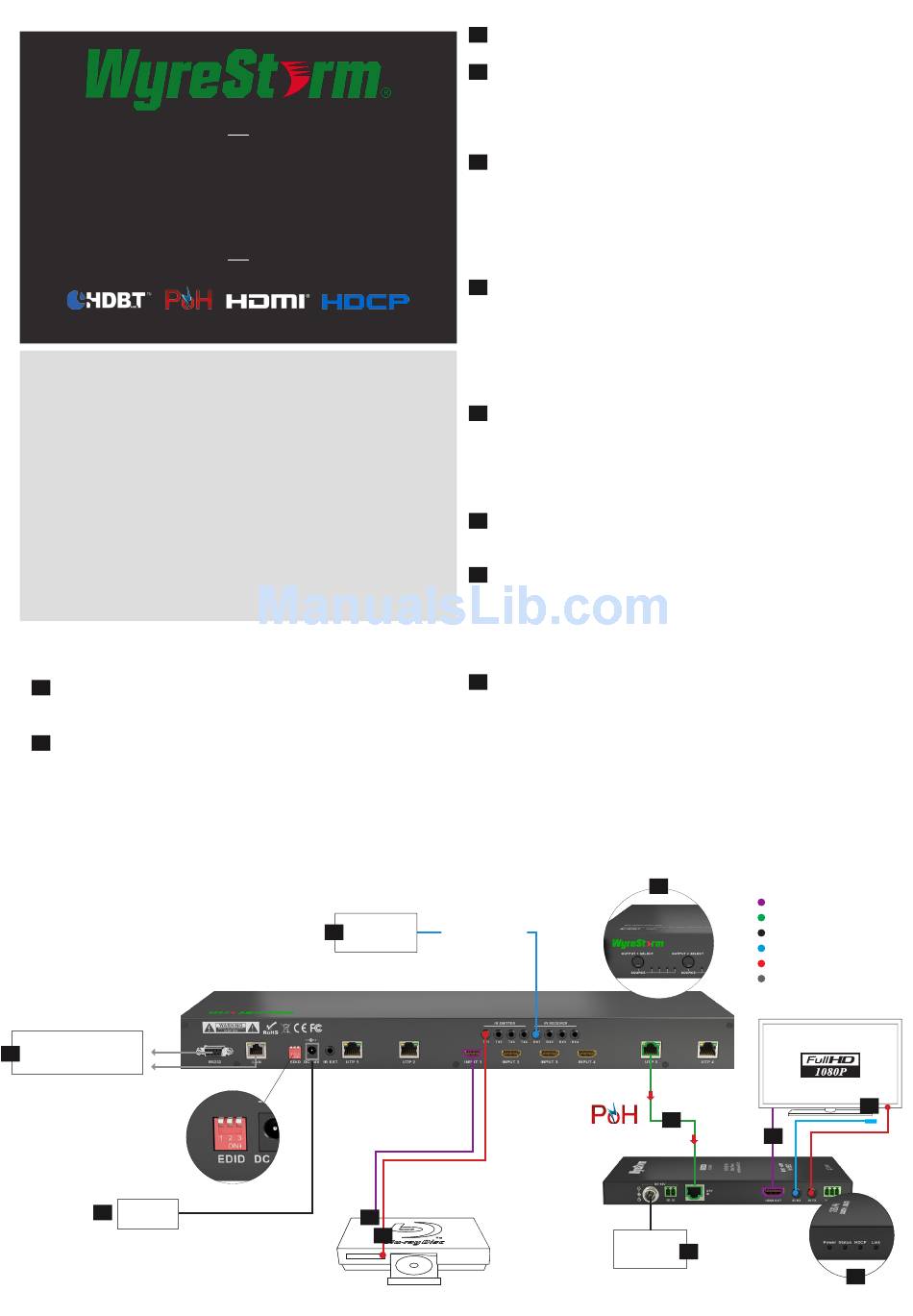

Basic Connection and Operation
1
Connect HDMI sources to HDMI Inputs 1-8 of the matrix using HDMI
cable from quality brand such as WyreStorm Express.
2
Connect a good quality, well-terminated Cat6 cable of no more than
70m/230ft from matrix HDBT output ports 1-4 to UTP IN ports of
connected display receivers.
NOTE: Although WyreStorm products are tested with Cat5e,
we recommend Cat6 as standard due to increased bandwidth
and improved capacity for handling large transmissions along
a single cable.
LAN / Serial based
9
Control System
See full manual
for details
on EDID
Management
and DIP settings.
4
Power
3
Connect HDMI display devices to the HDMI OUT ports of receivers.
4
Connect the matrix to a mains power supply using the power cable
included and switch on the Power on the front of the unit.
Check the front panel LED display is lit to indicate the matrix is ready
for use.
5
Receivers are powered remotely via PoH from the matrix so no
mains power is required at display locations.
In instances where cable quality, length or placement impacts on
successful PoH delivery, receivers can also be powered locally via
threaded or phoenix 12v DC power supplies.
6
Check POWER, STATUS & LINK lights are illuminated on the receiver
to indicate successful connection, with a lit HDCP illustrating the
presence of encryption within the signal.
NOTE: STATUS and HDCP LEDs should blink, POWER and
LINK are static LEDs.
7
Basic I/O switching is achieved via the matrix front panel by pressing
the SOURCE button to scroll numerically through connected inputs
1-4 for each OUTPUT, with input selections indicated by LED.
Basic Signal IR/RS232 Control
8
Connect IR emitters from the matrix IR TX ports to the IR receiving
areas of sources, firmly attaching emitter eyes onto sources.
9
For use with a control system, IR Link cables (sold separately) should
be connected from the matrix IR RX ports to the controller used.
For an RS232-based control system, RS232 cables should be used
from matrix to control system and between receivers and display
device.
10
At display locations, connect IR emitters from receiver IR TX ports
to the IR receiving areas of the display device and IR receivers from
IR RX ports on/near the device with clear line of sight to the handset
used to control.
NOTE: Emitter eye position on device IR receiving areas may
need to be adjusted later to achieve best IR performance.
See full instruction manual for detailed instructions on connection,
operation and control.
ir rx
Control
9
ir link cable
System
1
8
Source Device
7 KEY
HDMI
HDBaseT Cat6
Power
IR RX
IR TX
LAN / RS232
2
3
Optional
5
Power
10
6
