4-Input 4K USB-C & HDMI Presentation Matrix with
2 HDMI Outputs, MST and USB 3.2 KVM
MX-0402-MST
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While these products support CEC for the HDMI outputs, WyreStorm
cannot guarantee compatibility with all forms of CEC communication.
• Visit the product pages to download the latest firmware, document version,
additional documentation, and configuration tools.
Basic Wiring Diagram
CAM-210-PTZ
Copyright © 2024 WyreStorm ProAV Corporation |
Copyright © 2024 WyreStorm ProAV Corporation |
MX-0402-MST Quickstart Guide | 240603
MX-0402-MST Quickstart Guide | 240603
section for important wiring

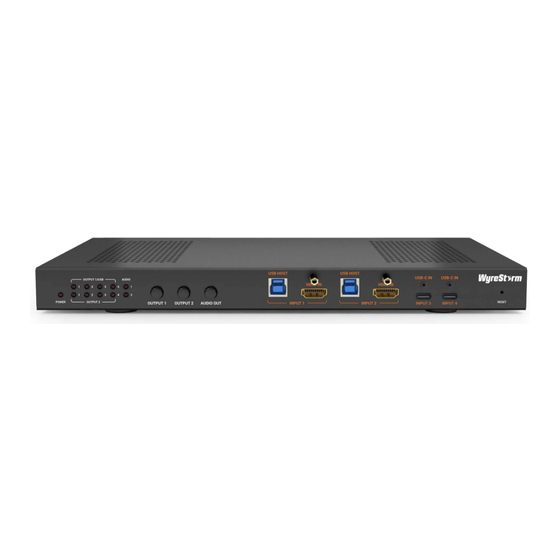

MX-0402-MST Front
MX-0402-MST Rear
Keyboard & Mouse
Speakerphone
Display Device
wyrestorm.com
wyrestorm.com
In the Box
1x MX-0402-MST
1x Power Adapter 20V/10A DC
2x USB-C 2m cables
2x USB 3.0 A to B 1.8m cables
4x Mounting Brackets
4x Bracket Screws
1x 5-pin Phoenix Connector
1x 3-pin Phoenix Connector
1x 8-pin Phoenix Connector
1x Quickstart Guide (This Document)
Room PC
Laptop
Ceiling
Ceiling
Speaker
Speaker
AMP-260-DNT
Display Device
1 of 4
Quickstart Guide
Laptop
KEY
HDMI
USB
USB-C
Ethernet
Network Switch
INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973)
support@wyrestorm.com
Advertisement
Related Manuals for Wyrestorm MX-0402-MST
Summary of Contents for Wyrestorm MX-0402-MST
- Page 1 4-Input 4K USB-C & HDMI Presentation Matrix with 2 HDMI Outputs, MST and USB 3.2 KVM MX-0402-MST Quickstart Guide WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x MX-0402-MST •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating any wires to ensure proper operation and to avoid damaging the equipment.
- Page 3 USB-C MST The MX-0402-MST features two USB-C ports, labeled USB-C IN 3 and USB-C IN 4, for connecting laptop devices. By default, both ports operate in SST mode (Single Screen). However, the USB-C IN 4 port can also support MST mode (Multi-Stream Transport), enabling dual-screen output. When USB-C IN 4 is in MST mode, the USB-C IN 3 port will be disabled.
- Page 4 Safety and Emission CE | FCC | RoHS | RCM | EAC | UKCA Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies ProAV Corporation warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
