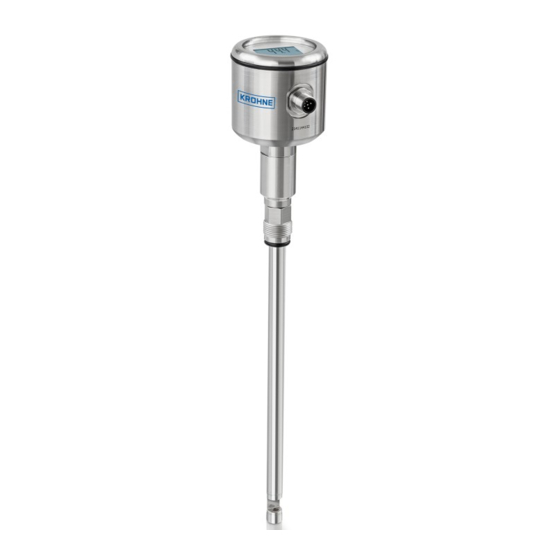

KROHNE OPTISYS TSS 050 Series Handbook

Hygienic absorption measurement system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPTISYS TSS X050 SERIES
OPTISYS TSS X050 SERIES
OPTISYS TSS X050 SERIES
OPTISYS TSS X050 SERIES
Hygienic absorption measurement system
TSS 1050, TSS 2050, TSS 3050, TSS 4050
© KROHNE 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en
Handbook
Handbook
Handbook
Handbook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTISYS TSS 050 Series and is the answer not in the manual?

Questions and answers

Related Manuals for KROHNE OPTISYS TSS 050 Series

Summary of Contents for KROHNE OPTISYS TSS 050 Series

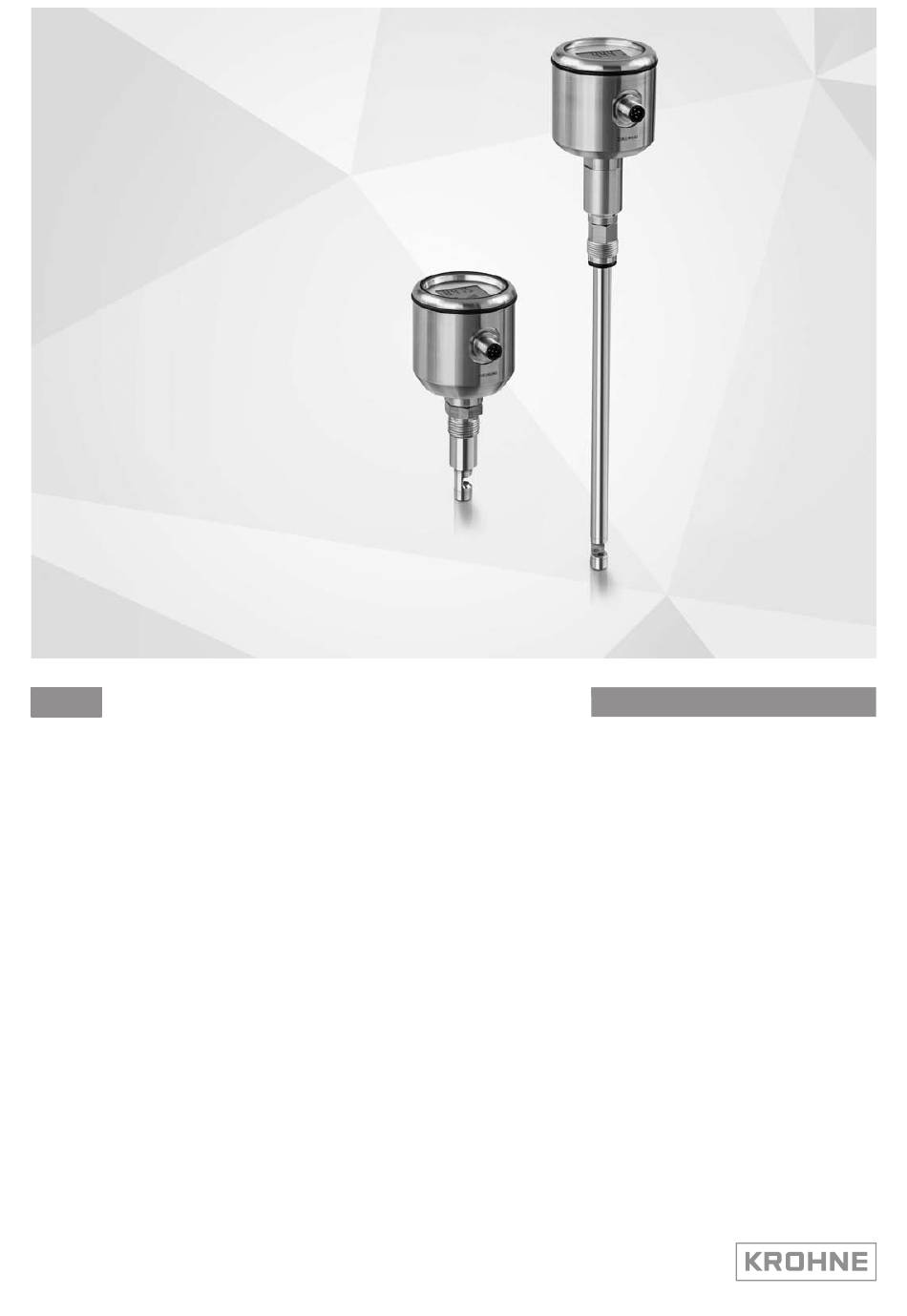

  • Page 1 OPTISYS TSS X050 SERIES OPTISYS TSS X050 SERIES OPTISYS TSS X050 SERIES OPTISYS TSS X050 SERIES Handbook Handbook Handbook Handbook Hygienic absorption measurement system TSS 1050, TSS 2050, TSS 3050, TSS 4050 © KROHNE 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...
  • Page 2 All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without the prior written authorisation of KROHNE Messtechnik GmbH. Subject to change without notice. Copyright 2018 by KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany) www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...

  • Page 3: Table Of Contents

    4.4 Troubleshooting......................20 5 Service 5.1 Maintenance ........................22 5.1.1 General instructions ......................22 5.1.2 Cleaning the measuring windows ..................22 5.2 Spare parts availability....................23 5.3 Availability of services ....................23 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...
  • Page 4 5.4.2 Form (for copying) to accompany a returned device............24 5.5 Disposal .......................... 24 6 Technical data 6.1 Measuring principle......................25 6.2 Technical data......................... 26 6.3 Dimensions and weight ....................28 www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...

  • Page 5: Safety Instructions

    A logarithmic amplifier guarantees a very wide measuring range (0…6 OD, 0...3 AU, 0…3250 EBC, 0…13000 FAU, 0…13000 TEF or 0…26.65 g/l). 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 6: Certifications

    For full information of the EU directives and standards and the approved certifications, please refer to the EU declaration on the KROHNE website. The manufacturer certifies successful testing of the product by applying the CE marking. 1.3 Safety instructions from the manufacturer 1.3.1 Copyright and data protection...

  • Page 7: Disclaimer

    This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device. Special considerations and precautions are also described in the document, which appear in the form of icons as shown below. 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 8: Warnings And Symbols Used

    In general, devices from the manufacturer may only be installed, commissioned, operated and maintained by properly trained and authorized personnel. This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device. www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...

  • Page 9: Device Description

    2 Display and control display (optionally removable) 3 M12 connector for electrical connection 4 G 1/2 or PG13.5 screw connection 5 O-Ring (2050/4050) or metal seeling (1050/3050) 6 Measuring windows 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 10: Nameplate

    Order Code: VGA6 X xxxxxxxxxx Part no. xxxxxxxxxx S/N xxxxxxxxxx 07.201X Max P:10 bar Max. temp. 90°C / 194°F made in Germany www.krohne.com Figure 2-2: Example for a nameplate 1 Manufacturer 2 Observe the installation and operating instructions 3 CE marking...

  • Page 11: Installation

    At stress with change of temperatures, e.g. a cold water jet on the hot device could lead to leakages into the device. At applications with dew point, temperature shock or thermal shock stresses it is • recommended to put the desiccant pouch into the housing. 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 12: Mechanical Connection

    4...20 mA analogue output Green/yellow or grey Teach input (+12...30 VDC) (only for TSS 1050/2050) • Connect the cable to the plug of the device. • Tighten the retainer nut hand-tight. www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...

  • Page 13: Operation

    Defines the decimal places of the user (TSS 3050/ the user unit unit (cdu). 4050 only) User unit 0...19999 Defines the value range of the user unit (TSS 3050/ (cdu). 4050 only) 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...
  • Page 14 Resetting the user parameters to the default settings (0 = no; 1 = yes); the calibration values are maintained. Start/end of menu Menu input and output (saving the entered parameters) www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...

  • Page 15: Configuration Of Output Current

    (NO) contact; if the value is 1, the switching output will work as normally closed (NC) contact. "ddly" delays the reaction of the switching output by up to 200.0 seconds. This value holds true for switching on and switching off. 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 16: Keylock

    Defines the target values of the calibration points. target values and/or 0.000...19.999 cal1...cal6 Calibration points: 0...19999 Defines the actual values of the calibration points. The display actual values and/or alternates with the target values. 0.000...19.999 www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...

  • Page 17: Calibration Using Reference Solutions

    Example table for reference solutions Reference Known target value of Determined actual solutions the reference solution value of the reference solution e.g. 250 EBC e.g. 234 EBC 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 18: Calibration Using Set Of Optical Reference Filters

    • Confirm the entries by selecting "SAVE = Yes". Example table for optical reference filter Optical Known target value of Determined actual reference the reference filter value of the reference filter filter 0,35AU/290EBC 0,34AU/276EBC 2,0AU/2200 EBC 1,9AU/2100EBC www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...

  • Page 19: Calibration Using A Reference Instrument With Process Samples

    250 EBC e.g. 234 EBC INFORMATION! Make sure that the used process samples cover the required measuring range as far as possible. 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 20: Reset To Factory Calibration

    Check and, if required, change the parameterisation of the switching output incorrectly (for details refer to Switching points on page 15). Electrical connection Electrical connection incorrect Check electrical connection (for details refer to page 12). www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...
  • Page 21 Contact the manufacturer. Temperature measurement failed Err3 Err3 Check the parameters "MRB" and "MRE". Maximum expansion 4:1 Err3 Err3 Measuring range expansion faulty Err4 Err4 Err4 Err4 Contact the manufacturer. ADC error 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 22: Service

    Cleaning procedure • Remove the device from the process connection. • Clean the measuring windows from coatings using appropriate cleaning and rinsing solutions in combination with a soft tissue. www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...

  • Page 23: Spare Parts Availability

    • such dangerous substances, to enclose a certificate with the device confirming that it is safe to handle and stating the • product used. 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 24: Form (For Copying) To Accompany A Returned Device

    The user must dispose of the WEEE to a designated collection point for the recycling of WEEE or send them back to our local organisation or authorised representative. www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...

  • Page 25: Technical Data

    (indication) as well as process control and similar applications. The advantage of the using NIR as light source is that this sensor is not affected by colour of the medium measured. 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 26: Technical Data

    TSS 3050/4050 0...3 AU (Absorption Units) 0…6 OD (Optical Density) 0…13000 FAU (Formazine Absorption Unit) 0…13000 FTU (Formazine Turbidity Unit) 0...3250 EBC (European Brewery Convention) 0…26.65 g/l (grams per litre) www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...
  • Page 27 Cable connection 5-pin M12 connector Cable length Standard: 5 m / 16.4 ft Option: 10 m / 32.8 ft, 20 m / 65.6 ft or 30 m / 98 ft 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...

  • Page 28: Dimensions And Weight

    CE marking. For full information of the EU directives and standards and the approved certifications, please refer to the EU declaration on the KROHNE website Hygienic Regulation (EC) No 1935:2004...
  • Page 29 1 Optical path length 5 mm / 0.2" or 10 mm / 0.4" Dimensions in mm Dimensions in mm Dimensions in mm Dimensions in mm Ø12 Ø68 Dimensions in inch Dimensions in inch Dimensions in inch Dimensions in inch Ø0.5 14.3 Ø2.7 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...
  • Page 30 Dimensions in mm Dimensions in mm Dimensions in mm Dimensions in mm Ø68 Ø12 Ø18 Dimensions in inch Dimensions in inch Dimensions in inch Dimensions in inch Ø2.7 Ø0.5 Ø0.7 www.krohne.com 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en...
  • Page 31 1 Optical path length 5 mm / 0.2" Dimensions in mm Dimensions in mm Dimensions in mm Dimensions in mm Ø12 Ø68 Dimensions in inch Dimensions in inch Dimensions in inch Dimensions in inch Ø0.5 14.3 Ø2.7 07/2018 - 4004781502 - MA OPTISYS TSSx050 R02 en www.krohne.com...
  • Page 32 • Process Analysis • Services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
