4. SETTING THE BATTERY DISPLAY
It is essential to set the correct battery type to ensure that the LED battery indi-
cators work correctly. The first step is to switch the PowerBox on, then hold the
button pressed in again.
After about five seconds the LEDs will go out, and a sequence of different colours
begins. Each colour corresponds to a particular battery type. Simply release the
button when the colour matching your battery type is displayed. The battery type
is now stored.

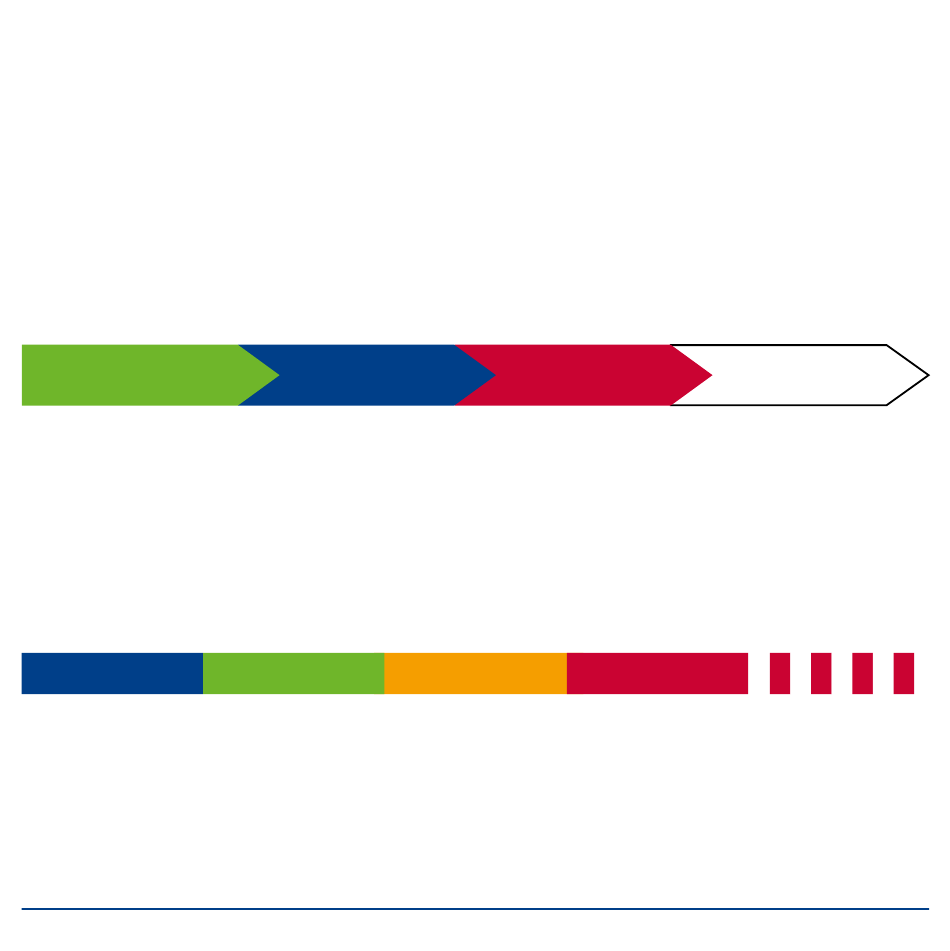

LiPo LiIon LiFe NiMh
Note regarding the LED display: the battery indicators do not follow battery voltage
in a linear fashion. We have tested and measured various currently available bat-
tery types, and produced an average discharge curve from this information; this
discharge curve is used as the basis for a percentage indication of battery state.
The LED indicators correspond to the battery status as follows:
80 – 100 % 60 – 80 % 40 – 60 % 20 – 40 % 0 – 20 %
