  • Page 1 Instruction Manual Digiswitch SmArtswitch...

  • Page 2: Product Description

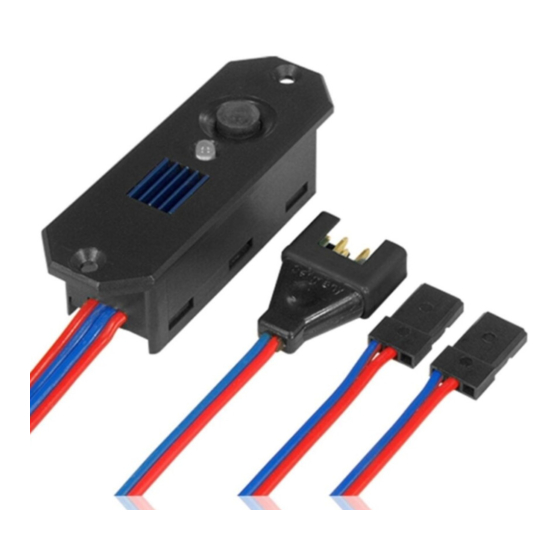

    The DigiSwitch reduces the input voltage to 5.9 V (optionally 5.3 V), and therefore supplies the correct voltage for standard 6 V servos.
  • Page 3 - Petrol engine ignition systems which are approved for a maximum input voltage of 8.4 V In the following sections we do not differentiate between the DigiSwitch and SmartSwitch, since the method of operating the two units is identical. www.powerbox-systems.com...

  • Page 4: Switching On And Off

    2. FIRST USE, OPERATING THE SWITCH 2.1. CONNECTIONS Connect a battery of your choice to the battery input, taking care to maintain cor- rect polarity. This can be a 4S (SmartSwitch only) or 5S NiCd / NiMH battery, a 2S (7.4 V) LiPo / Li-Ion or a 2S (6.6 V) LiFePo pack.

  • Page 5: Setting The Battery Type

    This is the procedure for setting up the unit to suit the different battery types: DigiSwitch: - Connect the battery, and switch on the DigiSwitch - Now hold the button pressed in, and watch the LED - The LED will glow red, then go out again after a while - Pause, hold the button pressed in again - The LED flashes green once.
  • Page 6 - The LED flashes green twice. If you release the button now, you have selected the 5s NiCd/ NiMH battery type - Pause, hold the button pressed in again - The LED flashes green three times. If you release the button now, you have selec- ted the 2s LiFePo battery type SmartSwitch: - Connect the battery, and switch on the SmartSwitch...

  • Page 7: Voltage Monitor

    2.4. VOLTAGE MONITOR The Digi- or SmartSwitch not only regulates the operating voltage of your RC sys- tem, it also monitors the battery connected to it. The tri-colour LED, which you have already used to confirm the unit’s power-on status, also informs you of the voltage of your battery by changing colour. The four stages are reflected by the colours green, orange, red and flashing red.

  • Page 8: Operating Notes

    SmartSwitch handle? Here is a comprehensive explanation: DigiSwitch: The capacity of the PowerBox DigiSwitch (1 - 3 A) is limited by the performance of the regulator when cooled efficiently, rather than by the switching capacity of the DigiSwitch. To obtain good cooling and ensure high performance, one of the he- at-sinks of the DigiSwitch is attached to the outside of the unit.
  • Page 9 You can usually improve the situation by installing the DigiSwitch in a position where the cooling airflow is better, and also by reducing any stiffness in the control surfaces or mechanical linkages.
  • Page 10 4. DIMENSIONS PowerBox-Systems − World Leaders in RC Power Supply Systems...

  • Page 11: Set Contents

    5. SET CONTENTS - DigiSwitch/SmartSwitch - Retaining screws - Installation template - Operating instructions Order No. 6410: Digiswitch 5,9V JR/JR Connector Order No. 6420: Digiswitch 5,9V MPX/2xJR Connector Order No. 6510: SmartSwitch JR/JR Connector Order No. 6520: SmartSwitch MPX/2xJR Connector 6.

  • Page 12: Guarantee Conditions

    7. GUARANTEE CONDITIONS At PowerBox-Systems we insist on the highest possible quality standards in the development and manufacture of our products. They are guaranteed “Made in Germany”! That is why we are able to grant a 36 month guarantee on our PowerBox Digi- Switch and SmartSwitch from the initial date of purchase.

  • Page 13: Liability Exclusion

    For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the PowerBox DigiSwitch or SmartSwitch, or which are connected with such use in any way. Regardless of the legal arguments employed, our obligation to pay compensation is limited to the invoice total of our products which were involved in the event, insofar as this is deemed legally permissible.
  • Page 14 07/2019 PowerBox-Systems GmbH certified according to DIN EN ISO 9001 Ludwig-Auer-Straße 5 D-86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
