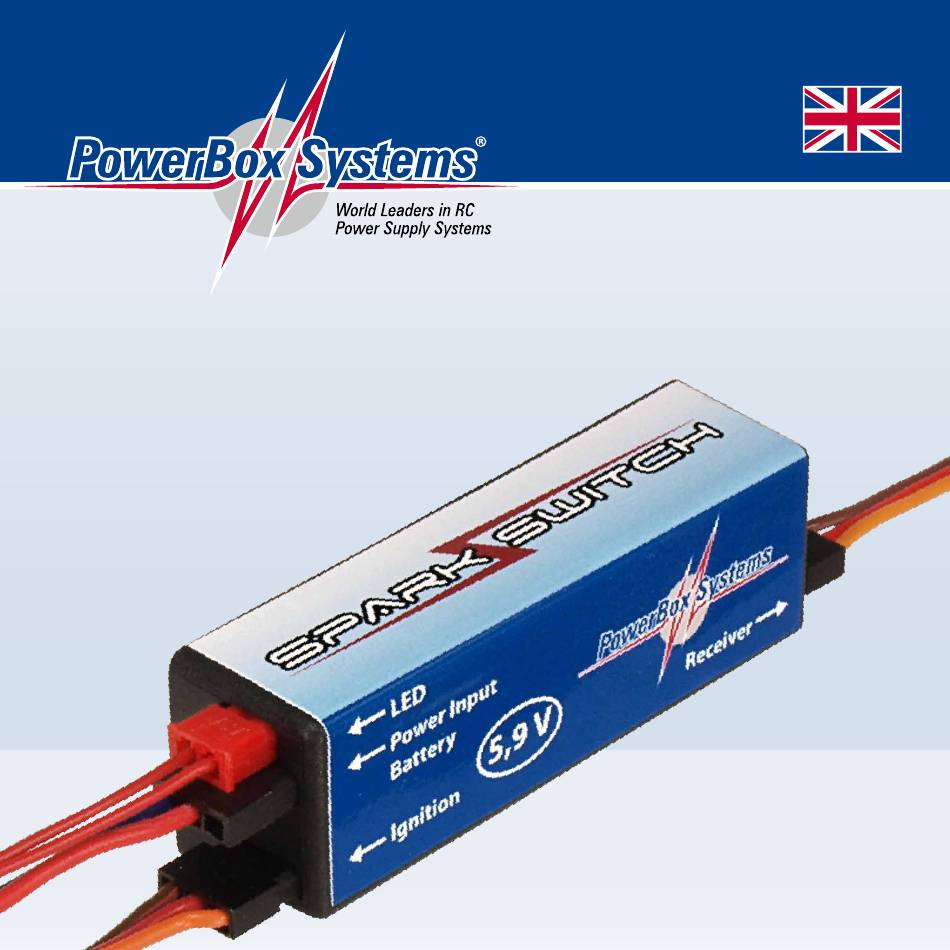

- Page 1 Instruction Manual SpArk switch www.modellmarkt24.ch www.model...
- Page 2 Dear customer, We are delighted that you have decided to purchase the SparkSwitch from Power- Box-Systems. The SparkSwitch is a reliable high-performance ignition switch. The entire design of the SparkSwitch has deliberately been kept simple, whilst retaining all the im- portant functions.
- Page 3 - Weight including patch-lead: 22 g - EMV approval: EN 550141-1:2006 - CE approval: 2004/108/EG - WEEE Reg. No.: DE 639 766 11 2. EXTERNAL CONTROLS The illustrations below show the essential external elements: Output to extern LED Power input battery Ignition Connection to receiver...
- Page 4 3. FIRST STEPS BEFORE USING THE UNIT 3.1. CONNECTIONS Connect all the leads as shown in the wiring diagram above. The inal step is to connect the battery. For safety reasons it is absolutely essential to connect the external LED. The exter- nal LED must be installed in a position where the pilot can clearly see it at all times when starting the engine.
- Page 5 end-points. If you are using a Futaba transmitter the preixes must be reversed, i.e. + equates to -. Normal mode: Switch position A is programmed to 0% at the trans- mitter, and is always the “OFF” position. Switch position B is programmed to +100% at the transmitter, and always switches the SparkSwitch “ON”.
- Page 6 This means: if you accidentally operate the switch on the transmitter during a light, this does not switch off the SparkSwitch. Non-latching transmitter switches are ideal for this mode: pull the switch and release it in order to switch the ignition on; repeat the procedure to switch the ignition off again.
- Page 7 6. GUARANTEE CONDITIONS We take the maintenance of the highest quality standards very seriously. As a result of this quality management, which applies to development and produc- tion, we are able to grant a guarantee of 24 months on our products, commencing on the initial date of purchase.
- Page 8 12/2020 PowerBox-Systems GmbH Ludwig-Auer-Straße 5 D-86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.modellmarkt24.ch www.modellmarkt24.ch www.powerbox-systems.com...
