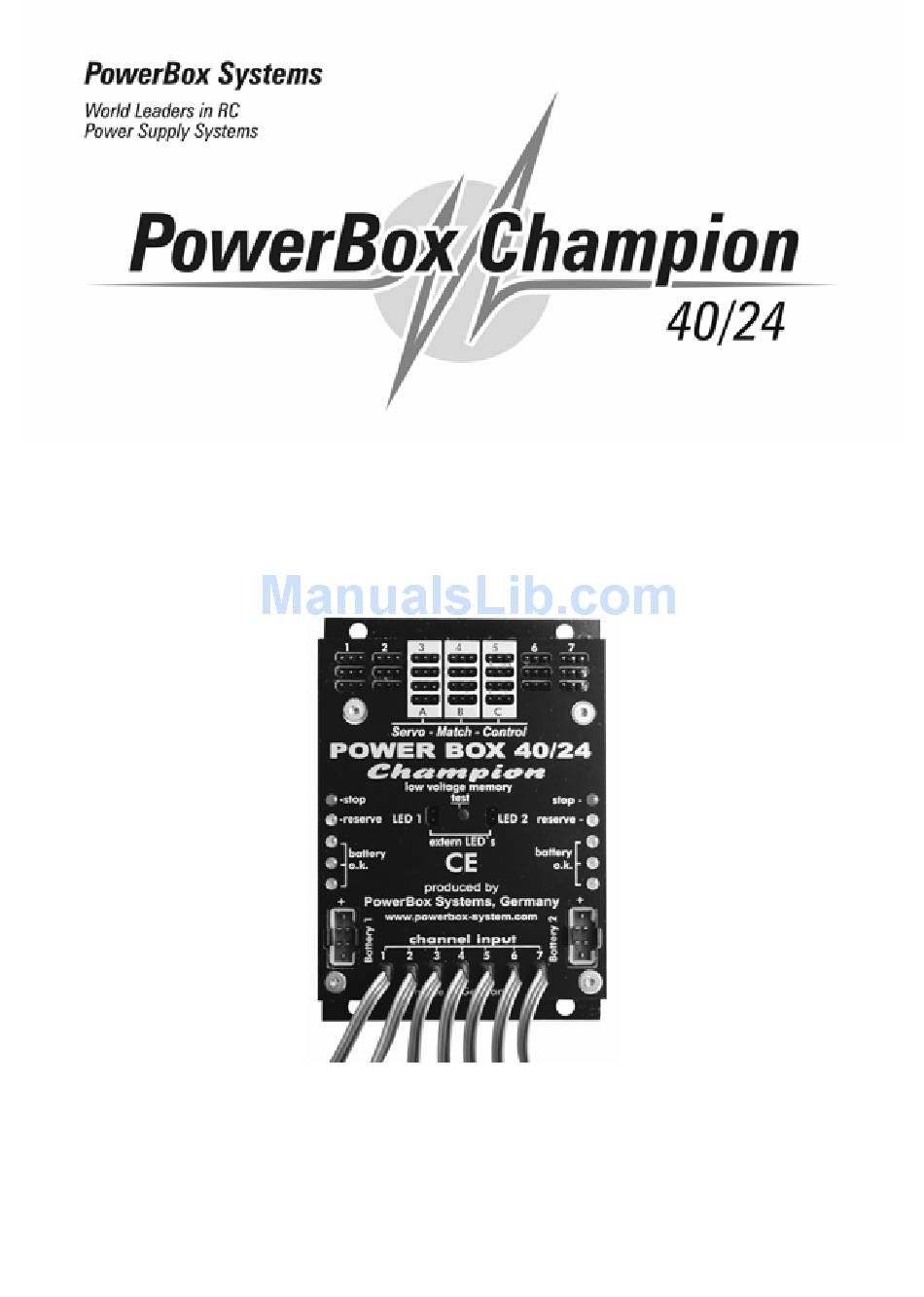

Page 1: Operating Instructions
Operating Instructions Operating Instructions Brief description of the PowerBox 40/24 Champion Petty patent No.: 203 13 420.6... - Page 2 This power supply system, based on the PowerBox Competition, offers a range of new, valuable and practical features in addition to those of its predecessor, which will be of great advantage to many model applications. Naturally the unit features double voltage stabilisation of the battery voltage for servos and receiver at 5.9 Volts, as featured by the PowerBox Competition.
- Page 3 POWER BOX 40/24 The first time you use the backer you must start by initialising the unit. • Connect both receiving system batteries to the backer with correct polarity. • Connect all the servos to the PowerBox Champion in the appropriate se- quence.
- Page 4 POWER BOX 40/24 1. - Set the channel select switch to “B”. 2. - Set the servo select switch to “reset”. 3. - Stick neutral, trim central, press + button, yellow and red light up. 4. - Stick right, press + button. 5.
- Page 5 POWER BOX 40/24 It is possible to set any (!) servo travel that you wish, but please take care! In prin- ciple you can set up any servo to move through an angular travel of 180°. How- ever: not every servo is mechanically capable of such travels (gearbox end-stops). Check carefully that the servo pot and gearbox do not strike their mechanical end-stops.
- Page 6 After every set-up process the Adjustor Board should be disconnected from the PowerBox Champion. This avoids subjecting the controls to vibration, and saves the airborne weight of the extra unit. We wish you every success using your new PowerBox 40/24 Champion. Donauwoerth, Oct. 2001 - 5 -...
- Page 7 POWER BOX 40/24 PowerBox Systems Modellbau-Deutsch Hindenburgstraße 33 86609 Donauwörth Tel: +49-0906-22559 Fax: +49-0906-22459 info@PowerBox-Systems.com www.PowerBox-Systems.com - 6 -...
