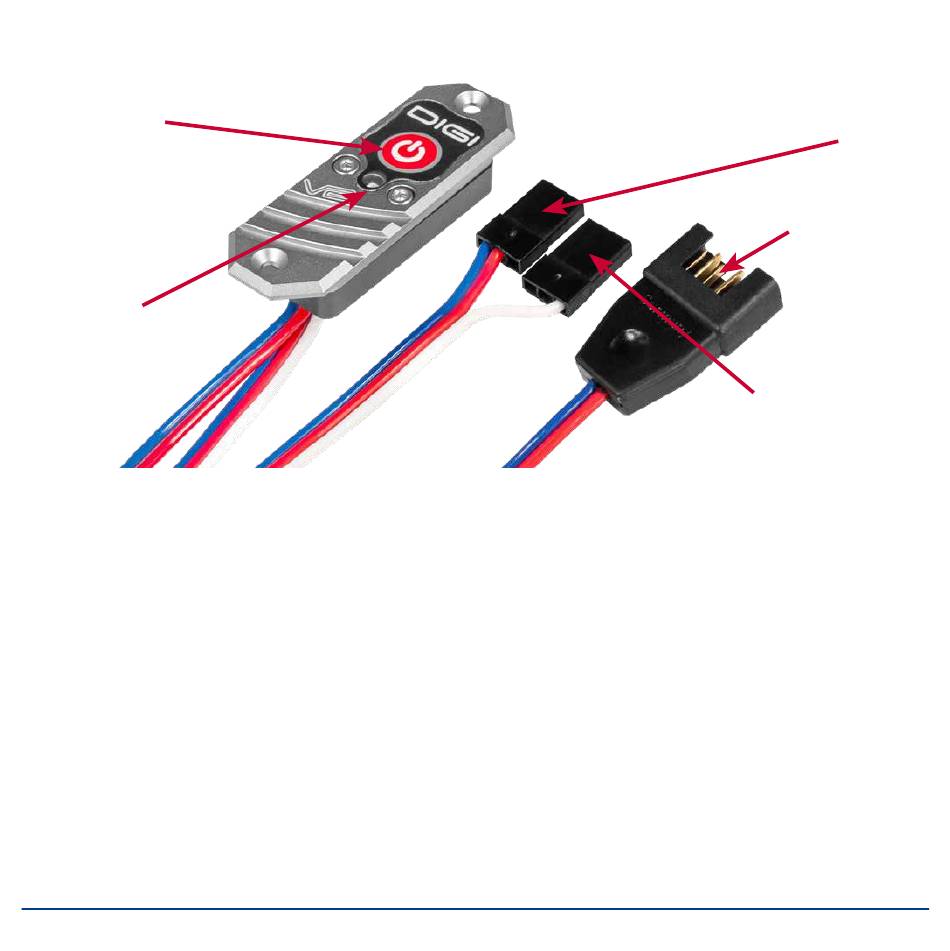

1. FEATURES AND CONNECTIONS

Push-button
RGB LED
voltage and status
indicators

2. INSTALLING AND CONNECTING THE BATTERIES

The PowerBox DigiSwitch V2 should be installed in the model in a position where
vibration levels are low. Solid GRP fuselage sides in a power model should be fitted
with an internal 3 – 4 mm thick plywood plate to minimise vibration, and to provide
'meat' for the retaining screws.
Connect the batterie of your choice – with correct polarity – to the battery input.
You can use either 2s LiPo or LiIon, two 2s LiFePo or two 5s NiMH batteries. We
recommend the use of PowerPak 2.5x2 Pro batteries, which are particularly safe
and simple to handle thanks to their integral charge circuitry.
