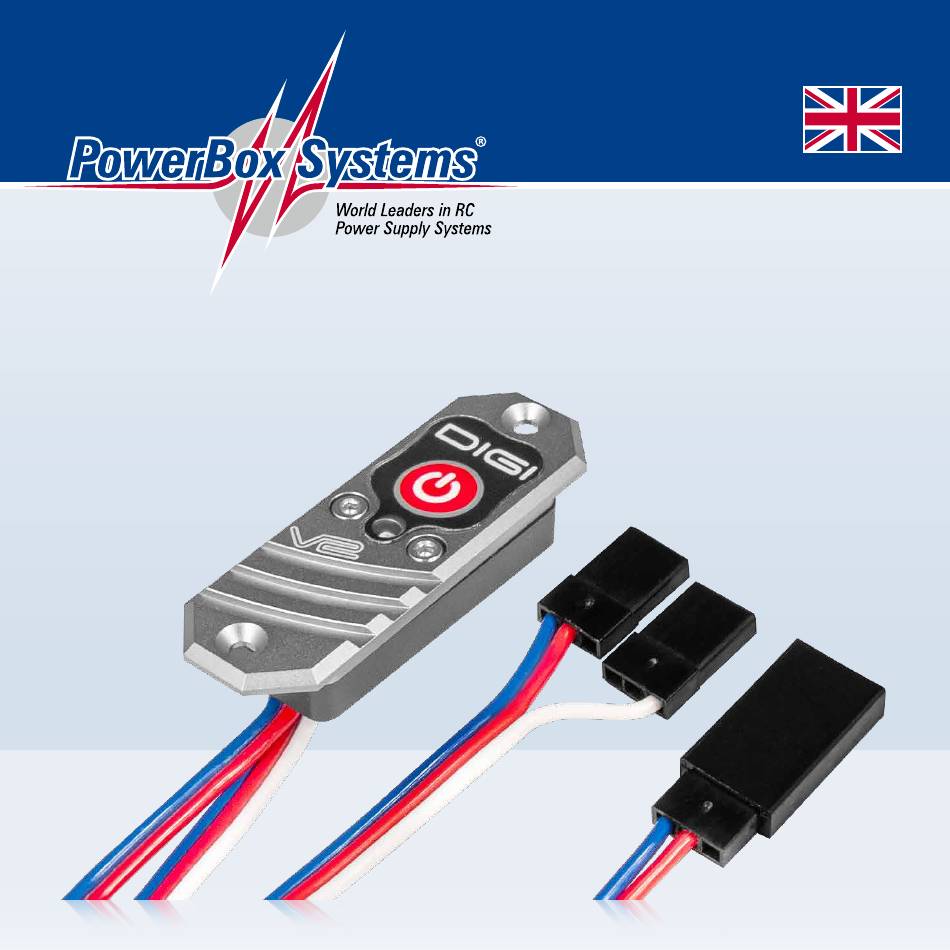

  • Page 1 Instruction Manual Digiswitch...

  • Page 2: Product Description

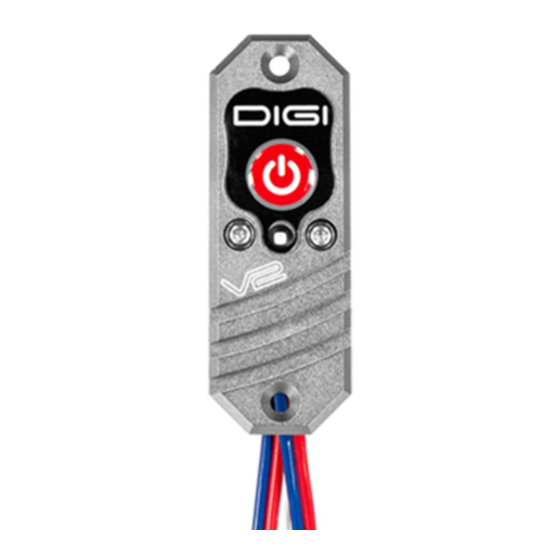

    We wish you many hours of pleasure and success with the PowerBox DigiSwitch V2! PRODUCT DESCRIPTION The PowerBox DigiSwitch V2 is the second generation of the PowerBox Digi- Switch, which is well-known throughout the world. For almost fifteen years the PowerBox DigiSwitch has represented the standard for small to medium-sized models thanks to its compact format and versatility.
  • Page 3 Power to the unit can be drawn from four different battery types: LiPo, LiIon, LiFePo, NiMH. Ultra-bright RGB LEDs are fitted to indicate battery voltage; they light up in various colours to display the charge status of the batteries. CORE users also benefit from one special additional feature: the battery voltage and regulator voltage can be displayed directly at the transmitter via telemetry! FEATURES + High-performance electronic switch...

  • Page 4: Features And Connections

    CORE P²BUS 2. INSTALLING AND CONNECTING THE BATTERIES The PowerBox DigiSwitch V2 should be installed in the model in a position where vibration levels are low. Solid GRP fuselage sides in a power model should be fitted with an internal 3 – 4 mm thick plywood plate to minimise vibration, and to provide ‘meat’...

  • Page 5: Switching On And Off

    P²BUS input. 3. SWITCHING ON AND OFF Like its predecessor, the DigiSwitch V2 only has one button, and this simplifies the procedure for switching on and off. As with other PowerBox devices with a single button, the sequence is as follows: Hold the button pressed in for one or two seconds until the LEDs light up violet.
  • Page 6 4. SETTING THE BATTERY DISPLAY It is essential to set the correct battery type to ensure that the LED battery indi- cators work correctly. The first step is to switch the PowerBox on, then hold the button pressed in again. After about five seconds the LEDs will go out, and a sequence of different colours begins.

  • Page 7: Setting The Output Voltage

    5. SETTING THE OUTPUT VOLTAGE The PowerBox DigiSwitch V2 can be set to either of two output voltages: 6.0 V for conventional servos, and 7.0 V, 7.6 V or non-regulated for HV servos. If you opt for the higher setting, please ensure that all the components connected to the system are approved for high-voltage use.
  • Page 8 - with the model on the ground – for about thirty seconds. If the DigiSwitch V2 becomes hot to the touch (more than 60°C), first check that the servos, pushrods and linkages are in good order.

  • Page 9: Specification

    6. REGULATOR ERRORS The unit constantly monitors the operation of the voltage regulators. If the output voltage strays outside the correct value, the LEDs indicate this by lighting up violet and flashing rapidly. Regulator errors typically occur when a battery is connected with reversed polarity.
  • Page 10 8. DIMENSIONS PowerBox-Systems − World Leaders in RC Power Supply Systems...

  • Page 11: Set Contents

    9. SET CONTENTS - PowerBox DigiSwitch V2 - 2x retaining screws - Operating instructions in English and German 10. SERVICE NOTE We are anxious to offer good service to our customers, and to this end we have set up a Support Forum which deals with all queries concerning our products. This relieves us of a great deal of work, as it eliminates the need to answer frequently asked questions time and again.

  • Page 12: Guarantee Conditions

    11. GUARANTEE CONDITIONS At PowerBox-Systems we insist on the highest possible quality standards in the development and manufacture of our products. They are guaranteed “Made in Germany”! That is why we are able to grant a 24 month guarantee on our PowerBox Digi- Switch V2 from the initial date of purchase.

  • Page 13: Liability Exclusion

    For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the PowerBox DigiSwitch V2, or which are connected with such use in any way. Regardless of the legal arguments employed, our obligation to pay compensation is limited to the invoice total of our products which were involved in the event, insofar as this is deemed legally permissible.
  • Page 14 11/2020 PowerBox-Systems GmbH certified according to DIN EN ISO 9001 Ludwig-Auer-Straße 5 D-86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
