Summary of Contents for PowerBox Systems Digi-Switch

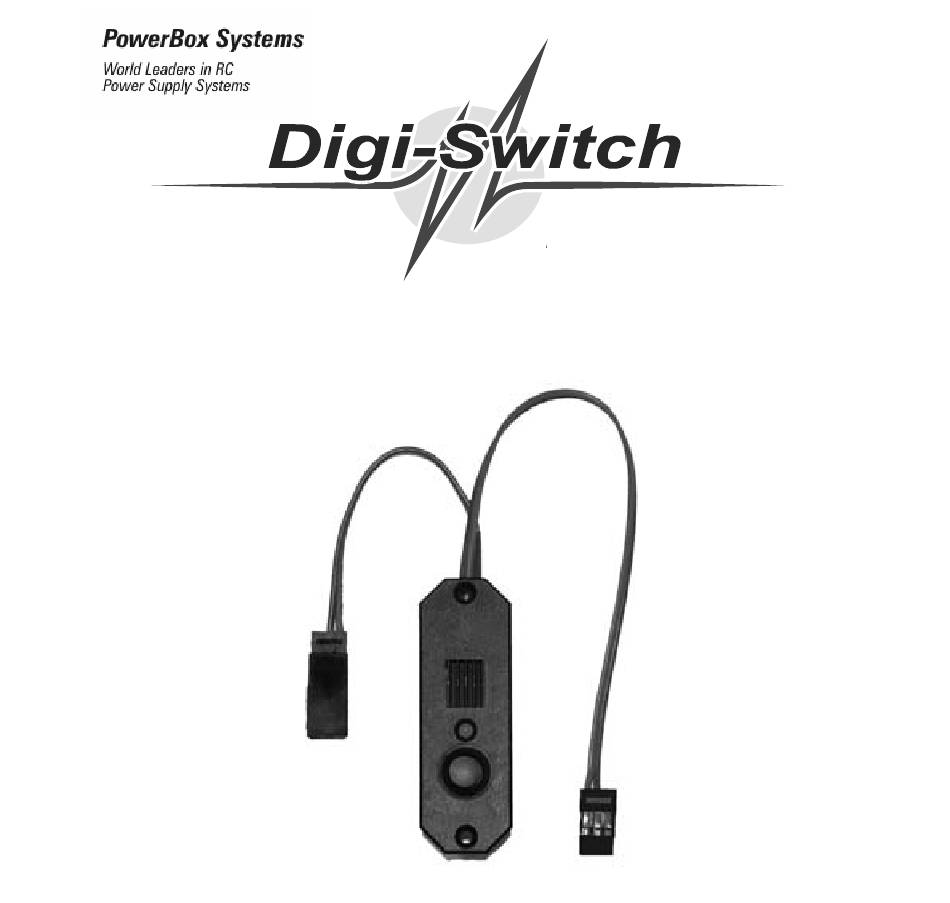

- Page 1 Operating Instructions...
- Page 3 (i.e. in a straight line) to extra-wide solder pads, where they are encased in a special support adhesive for additional protection from possible vibration damage. We recommend the Digi-Switch for the following applications and types of model: Small to medium-sized model aircraft with up to five standard-sized servos...
- Page 4 Digi-Switch Operation: The only control on the Digi-Switch is the push-button, which makes it extremely easy to use. All this button does is pass the switch signal to the electronic switch; the button itself has nothing to do with the actual switching of the current.
- Page 5 Digi-Switch will not switch on! If you leave the Digi-Switch connected to the LiPo battery when it is switched off, then the unit goes into “stand-by” mode. The idle current in this state is around 5.0 µA, which is lower than the battery’s natural rate of self-discharge.
- Page 6 Digi-Switch Even though our product is very well protected from the effects of vibration, the Digi- Switch should always be mounted in a part of the model where vibration levels are rela- tively low. Please note the following point: The GRP fuselage sides of a large power model are not suitable for mounting the Digi- Switch - nor any other type of switch - as they are always subject to considerable vibration.
- Page 7 Digi-Switch For your receiving system power supplies we particularly recommend our own make of batteries: the PowerBox Battery 2800 or PowerBox Battery 1500. These packs feature an integral electronic monitor / security circuit and charger (for 12 Volts and 110 / 220 Volts) to ensure reliable charging.
- Page 8 Digi-Switch We wish you every success using your new Digi-Switch, and hope you have loads of fun with it. Donauwörth, September 2005 PowerBox Systems Modellbau-Deutsch Hindenburgstraße 33 86609 Donauwörth Tel: +49-906-22559 Fax: +49-906-22459 info@PowerBox-Systems.com www.PowerBox-Systems.com - 8 -...
