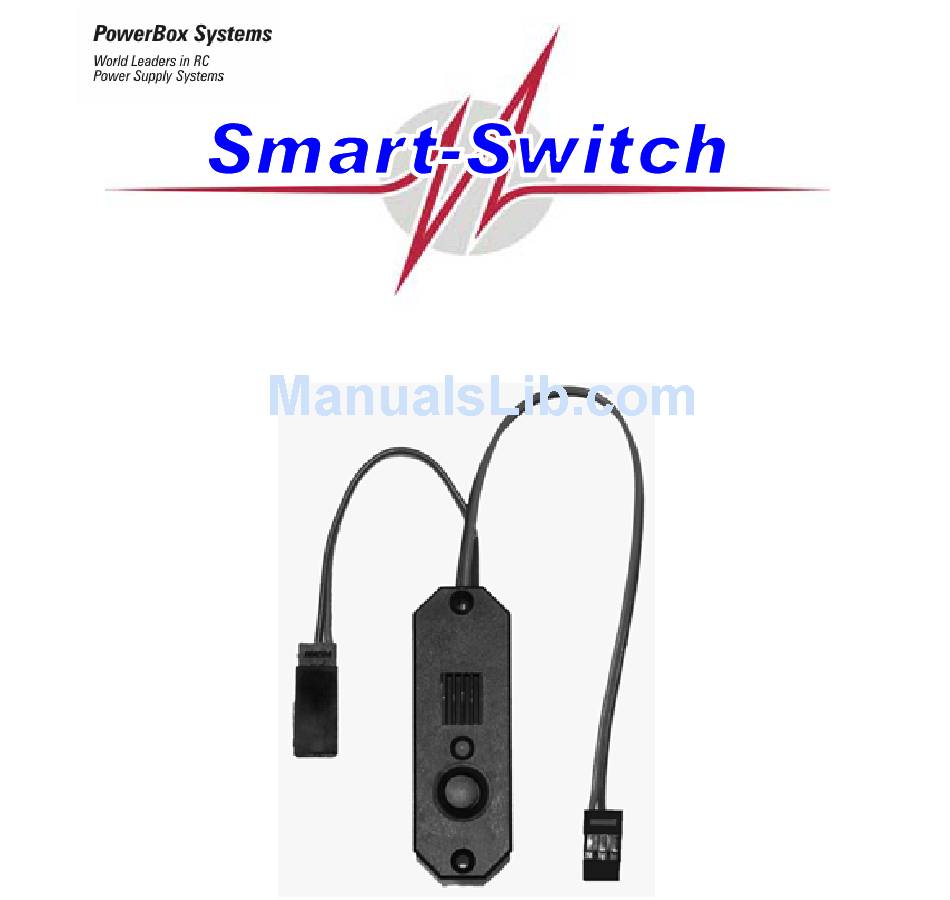

- Page 1 Operating Instructions...

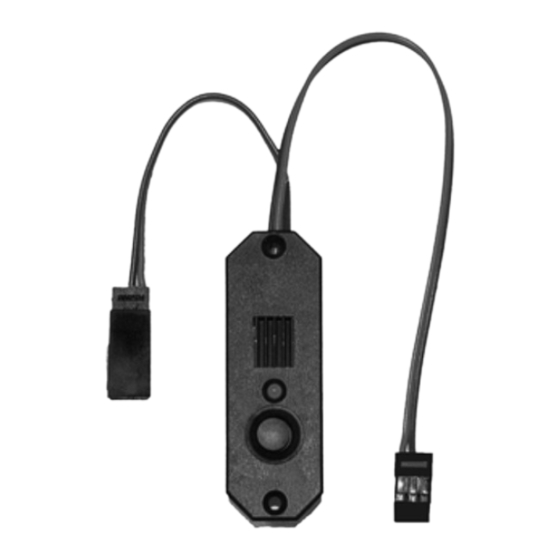

- Page 3 This innovative product is the world’s first electronic multi-function switch system, developed and produced by PowerBox Systems GmbH. The unit is designed to switch the receiving system on and off safely and reliably, and to monitor the airborne power supply.
- Page 4 Caution: the Smart-Switch does not feature a voltage stabilization circuit. If you wish to use a two-cell LiPo battery, you must not use the Smart-Switch in conjunction with a receiving system designed only for 6.0 Volts, i.e. the entire system - receiver and servos - must be designed to cope with this voltage.
- Page 5 Smart-Switch The voltage monitor setting is changed using the sensor button. You simply hold the button pressed in until the LED indicates the correct setting in setup mode: LED flashes green once = LiPo LED flashes green twice = five-cell battery...
- Page 6 If the Smart-Switch is left connected to a battery when it is switched off, the unit goes into “stand-by” mode. The idle current in this state is around 5.0 µA, which is lower than any battery’s natural rate of self-discharge.
- Page 7 Smart-Switch Even though our product is very well protected >from the effects of vibration, the Smart- Switch should always be mounted in a part of the model where vibration levels are relatively low. Please note the following point: The GRP fuselage sides of a large power model are not suitable for mounting the Smart- Switch - nor any other type of switch - as they are always subject to considerable vibration.
- Page 8 For this reason, if the Smart-Switch is connected to LiPo cells, it must not be used in conjunction with a receiving system which is designed for max.
- Page 9 Smart-Switch The guarantee covers proven material faults, which will be corrected by us at no charge to you. Misuse and maltreatment, such as reversed polarity connections, excessive voltage, damp, external mechanical influences or damage (crash damage) or inappropriate mounting (serious vibration) invalidate the guarantee.
- Page 10 Smart-Switch We wish you every success using your new Smart-Switch from the PowerBox Systems range, and hope you have loads of fun with it. Donauwörth, December 2006 PowerBox-Systems GmbH Ludwig-Auer-Strasse 5 86609 Donauwörth, Germany Tel: +49-906-22559 Fax: +49-906-22459 info@PowerBox-Systems.com www.PowerBox-Systems.com...
