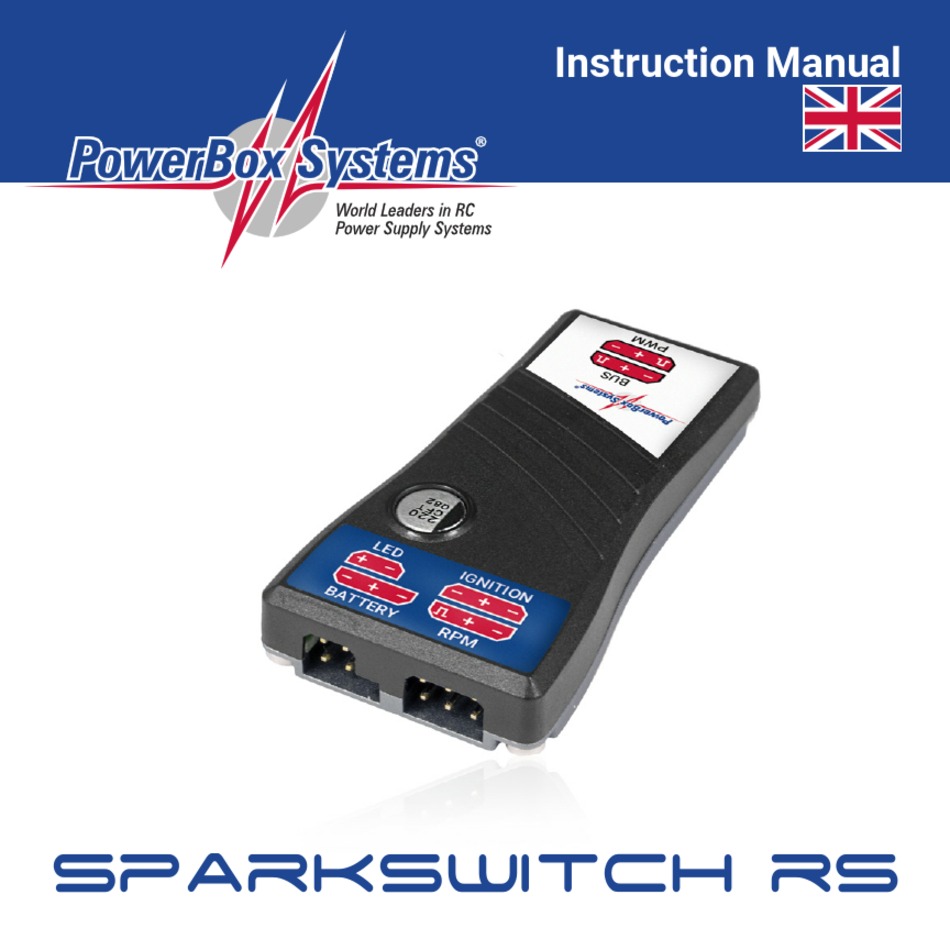

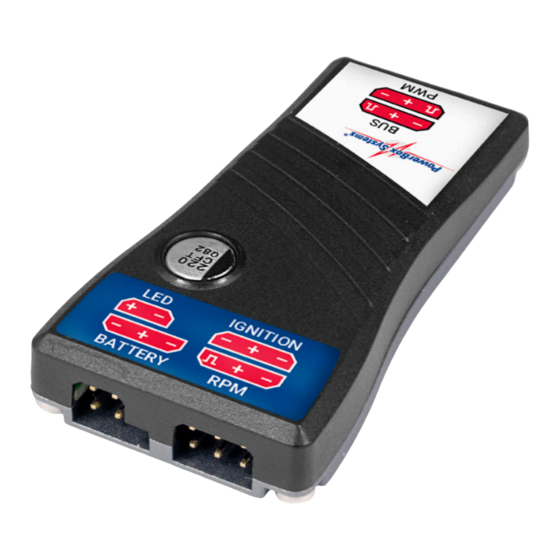

- Page 1 Instruction Manual sparkswItch RS...
- Page 2 SparkSwitch RS automatically detects the system in use, eliminating the need for adjustments using the USB interface. The SparkSwitch RS can be supplied in either of two variants: with or without vol- tage regulation. The regulated variant reliably reduces the input voltage (max. 9.0V) to 6.0V.
- Page 3 SparkSwitch RS receives its switching informa- tion directly via the telemetry servo bus. By default the SparkSwitch RS is set to channel 12 for switching the ignition on and off. With these systems all you have to do is connect the unit to the receiver using a patch lead.
- Page 4 • Spektrum SRXL2: connect the BUS input to SRXLS2 on the receiver • Graupner, Multiplex, JR and other systems: connect the PWM input of the SparkSwitch RS to a servo socket on the receiver. The BUS input of the SparkSwitch RS should also be connected to the receiver’s telemetry output.
-
Page 5: Installation
If you are using a Multiplex, Graupner or JR system, simply connect the PWM output to the assigned channel at the receiver. No other settings have to be changed, as the SparkSwitch RS detects the teleme- try system automatically. 3. INSTALLATION Install the SparkSwitch RS close to the ignition unit. - Page 6 Reversed polarity will destroy the electronics in the SparkSwitch The regulated version of the SparkSwitch RS incorporates an integral regulator which basically limits the voltage to 6.0V. This makes the SparkSwitch RS suitable for all ignition units whose label states 4.8V and 6.0V.
-
Page 7: Set Contents
6. SET CONTENTS • 1x SparkSwitch RS • 2x patch lead, 3-core • 1x external LED • 1x self-adhesive pad • 1x operating instructions 7. DIMENSIONS www.powerbox-systems.com... -
Page 8: Service Note
Please use the Support Forum before you telephone us. You will find the forum at the following address: www.forum.powerbox-systems.com 9. GUARANTEE CONDITIONS At PowerBox Systems we insist on the highest possible quality standards in the de- velopment and manufacture of our products. They are guaranteed “Made in Germany”! SERVICE ADDRESS... -
Page 9: Liability Exclusion
For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the SparkSwitch RS, or which are connected with such use in any way. Regardless of the legal arguments employed, our obligation to pay com- pensation is limited to the invoice total of our products which were involved in the event, insofar as this is deemed legally permissible. - Page 10 05/2023 PowerBox-Systems GmbH Ludwig-Auer-Straße 5 86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
