IDEAL Networks SignalTEK CT User Manual page 7

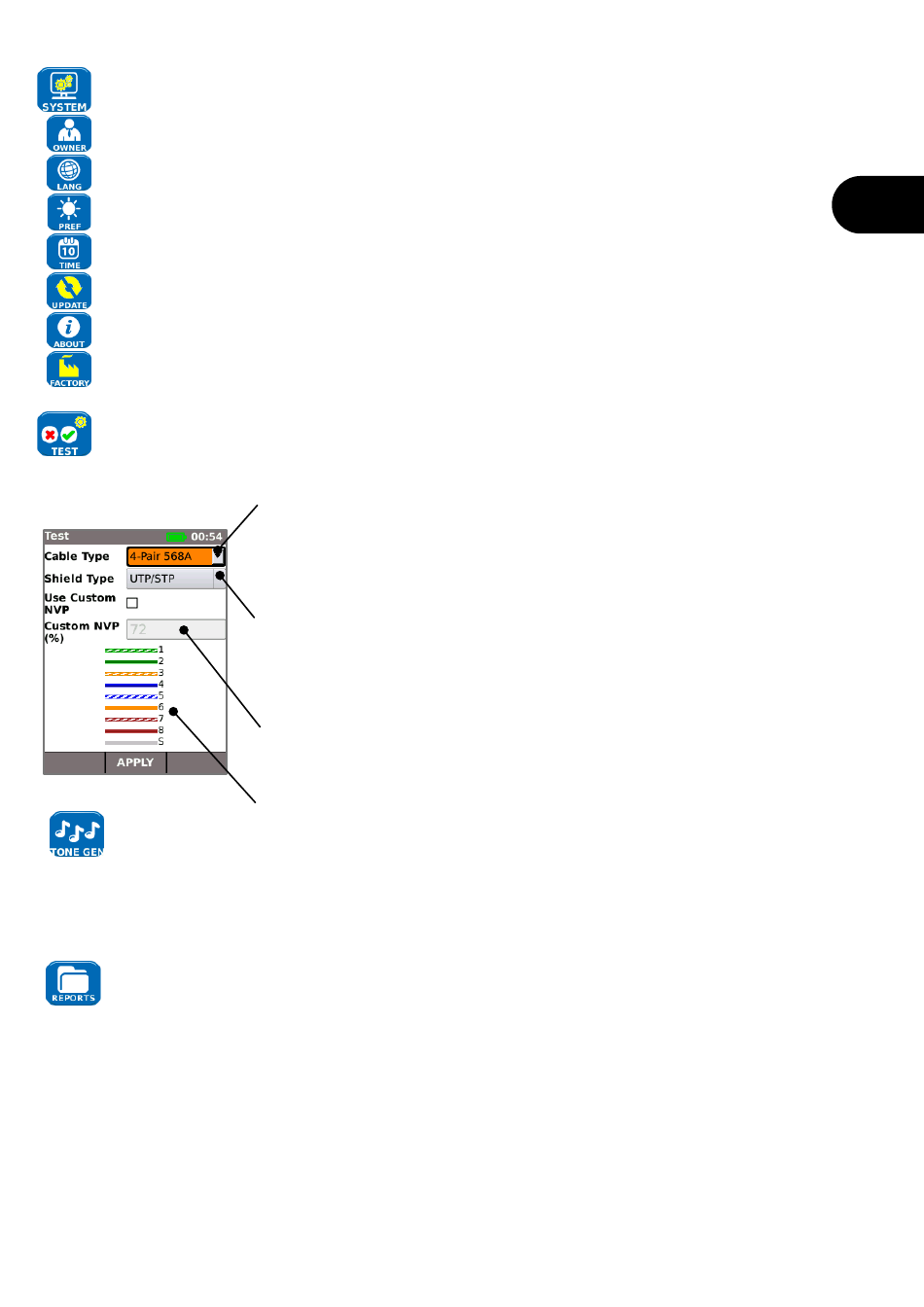

SETUP
Select SYSTEM to access the system setup:
Enter details of the test engineer and company for inclusion in the reports
Set the menu language
Set preferences for auto off, backlight, length units, date and time format
Set the date and time for inclusion in the reports
Update the software.
View details about the system
Reset to factory defaults.
Adjust the settings to be used in the tests:
SignalTEK CT can be used together with a compatible tone probe (available
from IDEAL) to identify and trace cables. SignalTEK CT can generate various types
of tone on various combinations of pins. Choice of tone type and pin connection is
best determined by experiment, to achieve the best results with a particular probe
type and in a particular cable situation.
Select the required report style:
• Format
• Size
• Include length measurement in the reports if required
156840.02
All settings and results will be lost. Save data to USB first.
All settings and results will be lost. Save data to USB first.
Cable Type
Select number of pairs and color scheme:
•
If 2-Pair is selected, the Data Test will run at 100Mb/s.
• If 4-Pair is selected, the Data Test will run at 1Gb/s
Shield Type
Select how the shield will affect the Wiremap Test:
• UTP – Wiremap Test will only pass if the cable shield is not connected
• STP– Wiremap Test will only pass if the cable shield is connected
•
UTP/STP – Shield will not affect the result of the Wiremap test
Nominal Velocity of Propagation (NVP)
Accurate length measurement relies on correct setting of the Nominal
Velocity of Propagation (NVP) for the cable to be tested.
Shows an illustration of the cable based on the selected cable type
o PDF for graphical reports that can be viewed or printed using a PDF
viewer
o CSV for editable reports that can be opened in a spreadsheet
o FULL to include all details (larger file, takes longer to upload)
o SUMMARY (smaller file, takes less time to upload)
SignalTEK CT
En
6
