INSTALLATION AND MAINTENANCE INSTRUCTIONS
CZ-6 Six Zone Interface Module
SPECIFICATIONS
Normal Operating Voltage:
Stand-By Current:
Alarm Current:
Temperature Range:
Humidity:
Dimensions:
Accessories:
Wire Gauge:
Maximum IDC Wiring Resistance:
External Power Supply Voltage:
Ripple Voltage:
IDC (supervised and power limited)
DC Voltage:
Frequency:
Current:
BEFORE INSTALLING
This information is included as a quick reference installation guide. Refer to
the appropriate control panel installation manual for detailed system informa-
tion. If the modules will be installed in an existing operational system, inform
the operator and local authority that the system will be temporarily out of ser-
vice. Disconnect the power to the control panel before installing the modules.
This system contains static sensitive components. Always ground yourself
with a proper wrist strap before handling any circuits so that static charges are
removed from the body. The module housing should also be grounded.
NOTICE: This manual should be left with the owner/user of this equipment.
GENERAL DESCRIPTION
The CZ-6 Six Zone Interface Module is intended for use in an intelligent alarm
system. Each module provides an interface between the intelligent alarm sys-
tem and a conventional alarm system loop. A common SLC input is used
for all modules, and the initiating device loops share a common supervisory
supply and ground. Otherwise, each monitor operates independently from the
others. Each module has its own unique address.
A pair of rotary code switches is used to set the address of the first module
from 01 to 94. The remaining modules are automatically assigned to the next
five higher addresses. Provisions are included for disabling a maximum of two
unused modules to release the addresses to be used elsewhere. Each mod-
ule also has panel controlled bicolor LED indicators. The panel can cause the
LEDs to blink, latch on, or latch off.
Included:
(5) 1 x 4 Terminal Blocks
(4) Machine Screws (2) Nuts
(6) 3.9k Ohm
End of Line Resistors
Shipped on Board:
(2) Shunts in Class A/B position
(Shipped in Class B position, remove shunts for Class A)
15-32 VDC
2.3 mA @ 24V
40 mA (assumes all six LEDs solid on)
32°F to 120°F (0°C to 49°C)
10 to 93% Non-condensing
6.8˝H x 5.8˝W x 1.25˝D
CH-6 Chassis; BB-2 Cabinet; BB-6 Cabinet
12-18 AWG
25 Ohms
Regulated 24VDC
0.1 volts RMS maximum
18-28 volts power limited
DC
90mA per circuit
(2) 11/4" Stand offs (3) Shunts
(1) Long Power Supply Jumper
COMPATIBILITY REQUIREMENTS
To ensure proper operation, this module shall be connected to a compatible
system control panel. Contact System Sensor for a list of compatible detectors.
COMPONENTS
Following are descriptions of the CZ-6 mounting frameworks. There are two
mounting options for CZ-6 modules:
• Up to six CZ-6 modules can be installed on a CH-6 in a BB-6 cabinet
• One or two CZ-6 modules can be installed in a BB-2 cabinet
Chassis
The CH-6 chassis is used to mount CZ-6 modules in a BB-6, cabinet. It accom-
modates up to six CZ-6 modules in a single cabinet row three modules wide
and two modules deep.

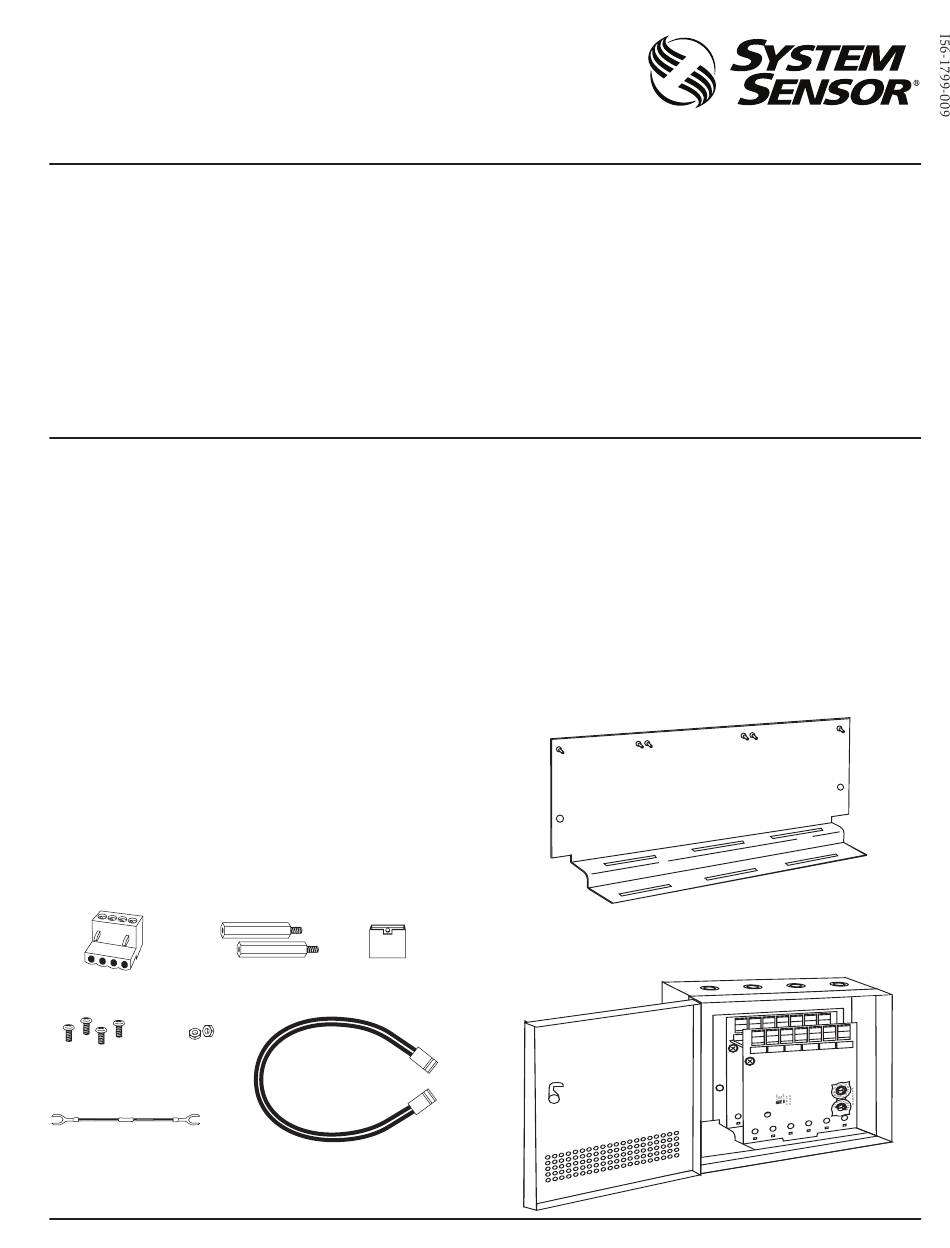

FIGURE 1. CH-6 CHASSIS:
The BB-2 cabinet has a built-in chassis that will accommodate one or two
CZ-6 modules.
FIGURE 2: BB-2 CABINET
C0202-00
1
