System Sensor Supervised Control Module M500S Installation And Maintenance Instructions

inSTaLLaTiOn and mainTenanCe inSTrUCTiOnS
m500S Supervised Control module

SpeCifiCaTiOnS

Normal Operating Voltage:
Maximum Current Draw:
Operating Current:
Maximum NAC Line Loss:
External Supply Voltage (between Terminals T10 and T11)
Maximum (NAC):
Maximum (Speakers):
Max. NAC Current Ratings:
Temperature Range:
Humidity:
Dimensions:
Accessories:

BefOre inSTaLLing

This information is included as a quick reference installation guide. Refer to
the control panel installation manual for detailed system information. If the
modules will be installed in an existing operational system, inform the opera-
tor and local authority that the system will be temporarily out of service. Dis-
connect power to the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.

generaL deSCripTiOn

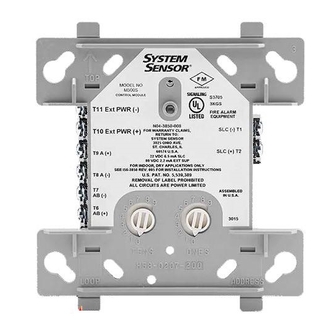

M500S Supervised Control Modules are intended for use in intelligent, two-
wire systems, where the individual address of each module is selected using
the built-in rotary decade switches. This module is used to switch an external
power supply, which can be a DC power supply or an audio amplifier (up
to 80 VRMS), to notification appliances. It also supervises the wiring to the
connected loads and reports their status to the panel as NORMAL, OPEN,
or SHORT CIRCUIT. The M500S has two pairs of output termination points
available for fault-tolerant wiring and a panel-controlled LED indicator. This
module can be used to replace an M500C module that has been configured for
supervised wiring operation.
COmpaTiBiLiTY reqUiremenTS
To ensure proper operation, these modules shall be connected to listed com-
patible system control panels only.

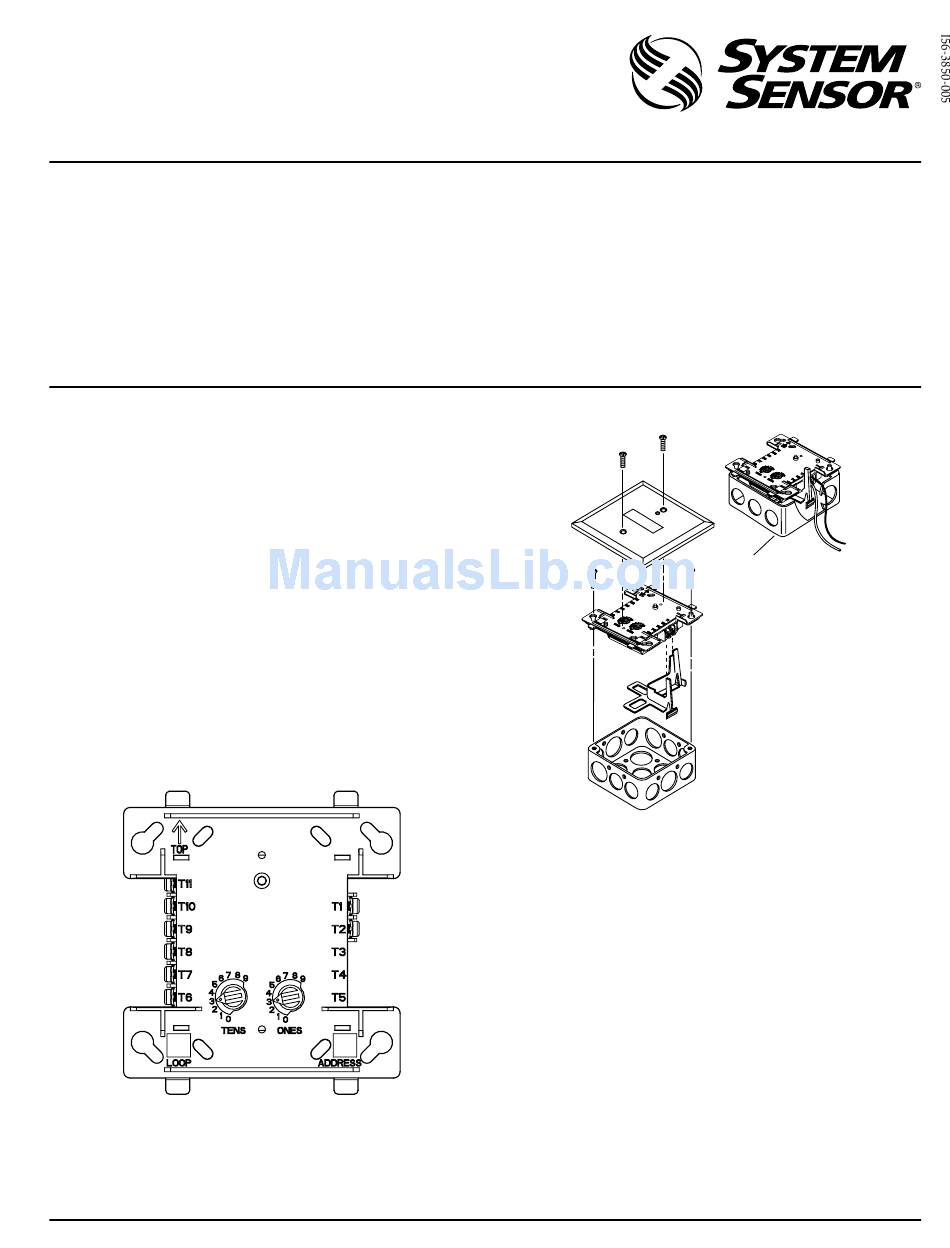

figUre 1. COnTrOLS and indiCaTOrS:
mOUnTing
The M500S mounts directly to 4-inch square electrical boxes (see Figure 2A).
The box must have a minimum depth of 2
cal boxes (SMB500) are available from System Sensor. The module can also
mount to the DNR(W) duct housing.
SS-460-001
15 to 32 VDC
6.5mA (LED On)
350 µA max., 1 communication every 5 seconds 47k EOL resistor; 485 µA max. (Communicating, NAC Shorted)
4 VDC
Regulated 24VDC
70.07 V RMS, 50 W
For class B wiring system, the current rating is 3A; For class A wiring system, the current rating is 2A
32˚F to 120˚F (0˚C to 49˚C)
10% to 93% Non-condensing
4.675˝ H x 4.275˝ W x 1.4˝ D (Mounts to a 4˝ square by 2
SMB500 Electrical Box; CB500 Barrier
C0909-01
1 / inches. Surface mounted electri-
8
1 / ˝ deep box.)
8
figUre 2a. mOdULe mOUnTing
WiTh Barrier:

Wiring

NOTE: All wiring must conform to applicable local codes, ordinances, and reg-
ulations. When using control modules in nonpower limited applications, the
System Sensor CB500 Module Barrier must be used to meet UL requirements
for the separation of power-limited and nonpower-limited terminals and wir-
ing. The barrier must be inserted into a 4˝×4˝×2
control module must be placed into the barrier and attached to the junction
box (Figure 2A). The power-limited wiring must be placed into the isolated
quadrant of the module barrier (Figure 2B).
1. Install module wiring in accordance with the job drawings and appropri-
ate wiring diagrams.
2. Set the address on the module per job drawings.
3. Secure module to electrical box (supplied by installer), as shown in
Figure 2A.
Wire should be stripped to the appropriate length (recommended strip length
is 1 / " to 3 / "). Exposed conductor should be secured under the clamping plate
4 8
and should not protrude beyond the terminal block area. Caution: Do not loop
wire under terminals. Break wire run to provide supervision of connections.
1
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
www.systemsensor.com
figUre 2B:
ISOLATED
QUADRANT
1 / ˝ junction box, and the
8
I56-3850-005
C1050-00
