INSTALLATION AND MAINTENANCE INSTRUCTIONS
IM-10
Ten Input Monitor Module
SPECIFICATIONS
Normal Operating Voltage:
Stand-By Current:
Alarm Current:
Temperature Range:
Humidity:
Dimensions:
Accessories:
Wire Gauge:
Maximum IDC Wiring Resistance:
Maximum IDC Voltage:
Maximum IDC Current:
BEFORE INSTALLING
This information is included as a quick reference installation guide. Refer to
the appropriate control panel installation manual for detailed system infor-
mation. If the modules will be installed in an existing operational system,
inform the operator and local authority that the system will be temporarily
out of service. Disconnect the power to the control panel before installing the
modules. This system contains static sensitive components. Always ground
yourself with a proper wrist strap before handling any circuits so that static
charges are removed from the body. The housing cabinet should be metallic
and suitably grounded.
NOTICE: This manual should be left with the owner/user of this equipment.
GENERAL DESCRIPTION
The IM-10 Ten Input Monitor Module is intended for use in an intelligent
alarm system. Each monitor module is intended to interface between a control
panel and normally open contact devices, such as pull stations. A common
SLC input is used for all modules, and the initiating device loops share a
common supervisory supply and ground. Otherwise, each monitor operates
independently from the others. Each module has its own unique address.
A pair of rotary code switches is used to set the address of the first module
from 01 to 90. The remaining modules are automatically assigned to the next
nine higher addresses. Provisions are included for disabling a maximum of
two unused modules to release the addresses to be used elsewhere. Each mod-
ule also has panel controlled green LED indicators. The panel can cause the
LEDs to blink, latch on, or latch off.
INCLUDED:
(6) 1 x 4 Terminal Blocks (2) 1¼" (32mm) Stand offs
(4) Machine Screws (2) Nuts (3) Shunts
Shipped on Board:
(1) Shunt in Class A/B position
(Shipped in Class B position, remove shunt for Class A)
COMPATIBILITY REQUIREMENTS
To ensure proper operation, this module shall be connected to a listed compat-
ible system control panel.
15–32 VDC
3.75 mA @ 24V
60 mA (assumes all ten LEDs solid on)
32°F to 120°F (0°C to 49°C)
10 to 93% Non-condensing
6.8˝H x 5.8˝W x 1.25˝D
CH-6 Chassis; BB-6 Cabinet; BB-2 Cabinet
12-18 AWG
40 Ohms
12 VDC
1 mA
(10) 47k Ohm
End of Line Resistors
C0202-00
COMPONENTS
Following are descriptions of the IM-10 mounting frameworks. There are two
mounting options for IM-10 modules:
• Up to six IM-10 modules can be installed on a CH-6 in a BB-6 cabinet
• One or two IM-10 modules can be installed in a BB-2 cabinet
CHASSIS
The CH-6 chassis is used to mount IM-10 modules in a BB-6 cabinet. It accom-
modates up to six IM-10 modules in a single cabinet row three modules wide
and two modules deep.

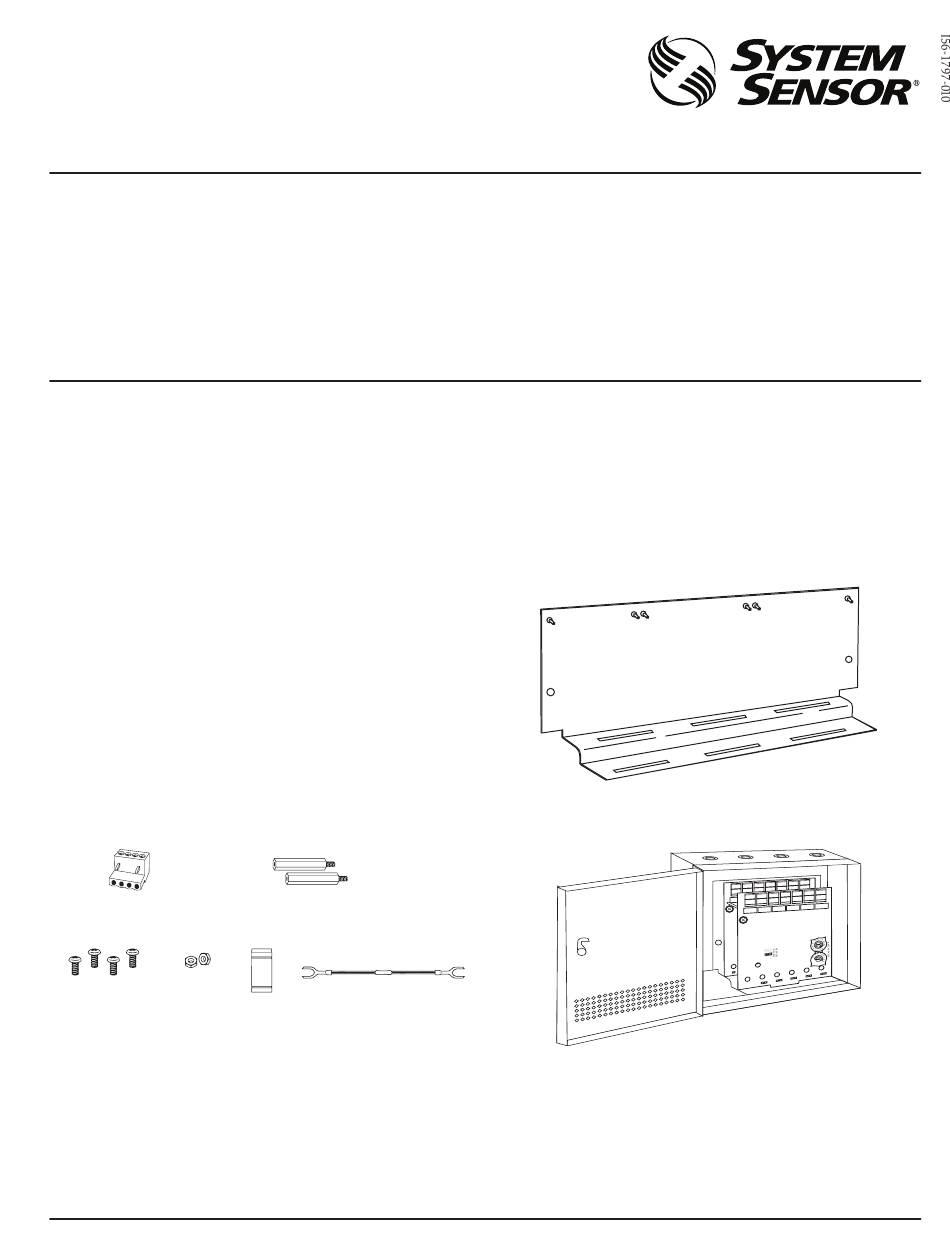

FIGURE 1. CH-6 CHASSIS:
The BB-2 cabinet has a built-in chassis that will accommodate one or two
IM-10 modules.
FIGURE 2. BB-2 CABINET:
The front IM-10 module positions of each chassis are offset below the rear IM-
10 module positions so that all of the status indicators are visible.
CABINETS
A BB-6 cabinet will house the CH-6 chassis with up to six IM-10 modules in-
stalled on it. Refer to cabinet installation documents for dimensions.
The BB-2 cabinet houses one or two IM-10 modules on the internal chassis
that is part of the cabinet. Refer to cabinet installation documents for dimen-
sions.
