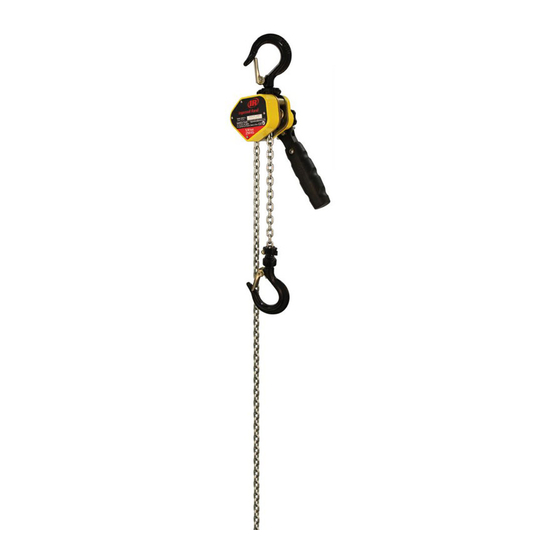

- Page 1 Product Maintenance Information Lever Chain Hoists KX Series (Dwg. MHP3275) Save These Instructions Form 48496376 Edition 1 September 2012 2012 Ingersoll-Rand ©...
- Page 2 Only allow trained technicians to perform maintenance on this product. For additional information contact factory or nearest Ingersoll Rand Ingersoll Rand Distributor. For additional supporting documentation refer to Table 1 ‘Product Information Manuals’ on page 2. Manuals can be downloaded from http://www.ingersollrandproducts.com. The use of other than genuine Ingersoll Rand replacement parts may result in safety hazards, decreased performance and increased maintenance and will invalidate all warranties.
- Page 3 Table 5: Periodic Maintenance/Inspection Interval Conditions Item Normal Heavy Severe Requirements of frequent inspection Annually Semi-annually Quarterly Evidence of loose bolts, nuts, rivets, snap Annually Semi-annually Quarterly rings Evidence of worn corroded, distorted, or cracked parts such as load blocks, suspension housing, levers, chain Annually Semi-annually...
- Page 4 INSPECTION REPORT Ingersoll Rand Lever Chain Hoist Model Number: Date: Serial Number: Inspected by: Reason for Inspection: (Check Applicable Box) 1. Scheduled Periodic Inspection ( ___ Quarterly ___ Semiannually ___ Yearly) 2. Discrepancy(s) noted during Frequent Inspection Operating Environment: Normal ___ Heavy ___ Severe ___ 3.
- Page 5 MAINTENANCE • Never perform maintenance on the hoist while it is supporting a load. CAUTION Before performing maintenance, tag controls: • Do not distort link in any manner. Link must be able to pass over the chain sprocket and idler wheels without binding. WARNING - DO NOT OPERATE EQUIPMENT BEING REPAIRED.
- Page 6 Brake End Disassembly 1. Remove snap ring I (4) (only for 0.25 ton hoist). 2. Remove change over gear (9) and bushing (10) from brake plate (11). 3. Remove screw & washer (12) from lever cover (13). 4. Remove lever cover (13). 5.
- Page 7 2. Apply grease to pinion shaft (35), disc gear A (36) and disc gear B (50). Insert pinion shaft (35) from side plate B (34) side through load sheave (26) or load sheave assembly (25). And then install disc gear A (36) and disc gear B (50). 3.
