Air Chain Hoist
MLK Series
(Dwg. MHP0456)
Save These Instructions
Form 47112677
Edition 2
January 2014
2014 Ingersoll Rand
©
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ingersoll-Rand MLK Series

  • Page 1 Product Information Air Chain Hoist MLK Series (Dwg. MHP0456) Save These Instructions Form 47112677 Edition 2 January 2014 2014 Ingersoll Rand ©...
  • Page 2: Product Description

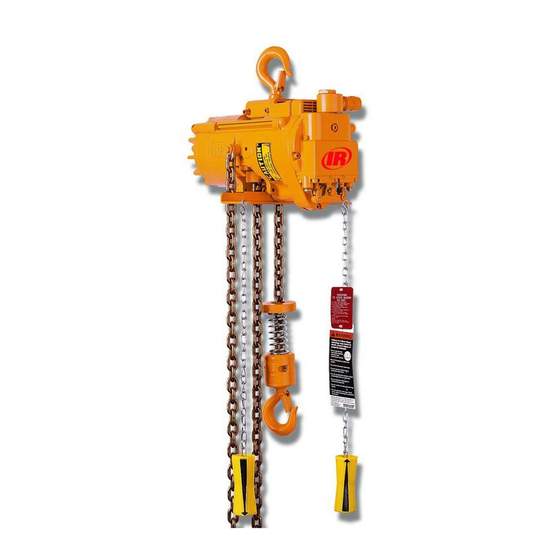

    The MLK Series hoists are suitable for A5 (ASME HST-5), severe duty use in the 0.25 to 1 metric ton range. The MLK series is designed to be used as a high speed production hoist. The MLKS is designed with reduced chain speed for optimal control .
  • Page 3: Specifications

    SPECIFICATIONS Table 2: MODEL CODE Example: 500K 10 - Series: Link Chain Type: Hoist Capacity: 250K = 250 kg - 1/4 metric ton (550 lb) 500K = 500 kg - 1/2 metric ton (1100 lb) 1000K = 1000 kg - 1 metric ton (2200 lb) Base Model Option †: = Spark Resistant (ML250K and ML500K Only) = Slow Speed Spotting...
  • Page 4: Installation

    Table 3: Speed with Rated Load Speed with Half Load Speed with No Load Rated Hoist Model No. Capacity Chain (kg) Falls down down down down down down ML250KS 12.2 27.4 16.1 21.6 21.6 16.1 ML250K 30.8 35.7 44.2 33.8 52.1 30.1 ML250KR...
  • Page 5: Operation

    Adjustment of Bleed Screws on Pendent Control Models CAUTION For maximum performance and control, adjust the bleed screws (35 or 336) as • Shut off air supply before filling air line lubricator. follows: • Lubricator must be located no more than 10 ft (3 m) from the motor. 1.
  • Page 6: Hoists Not In Regular Use

    Table 4: NOTICE Throat Opening • The full extent of chain wear cannot be determined by visual inspection. At Hoist Model New Hook Discard Hook any indication of wear inspect chain in accordance with instructions in the “Periodic Inspection”. Refer to Product Maintenance Information Manual. MLK250K, ML250KS, 9.
  • Page 7: Product Information Graphics

    PRODUCT INFORMATION GRAPHICS (Dwg. MHP0102) Minimum of One Spacer Required (Dwg. MHP0866) Air Out Regulator Air In Raise Load B Lubricator Filter Lower Load (Dwg. MHP0191) Throat Width (Dwg. MHP0427) (Dwg. MHP0040) (Dwg. MHP0111) Form 47112677 Edition 2...
