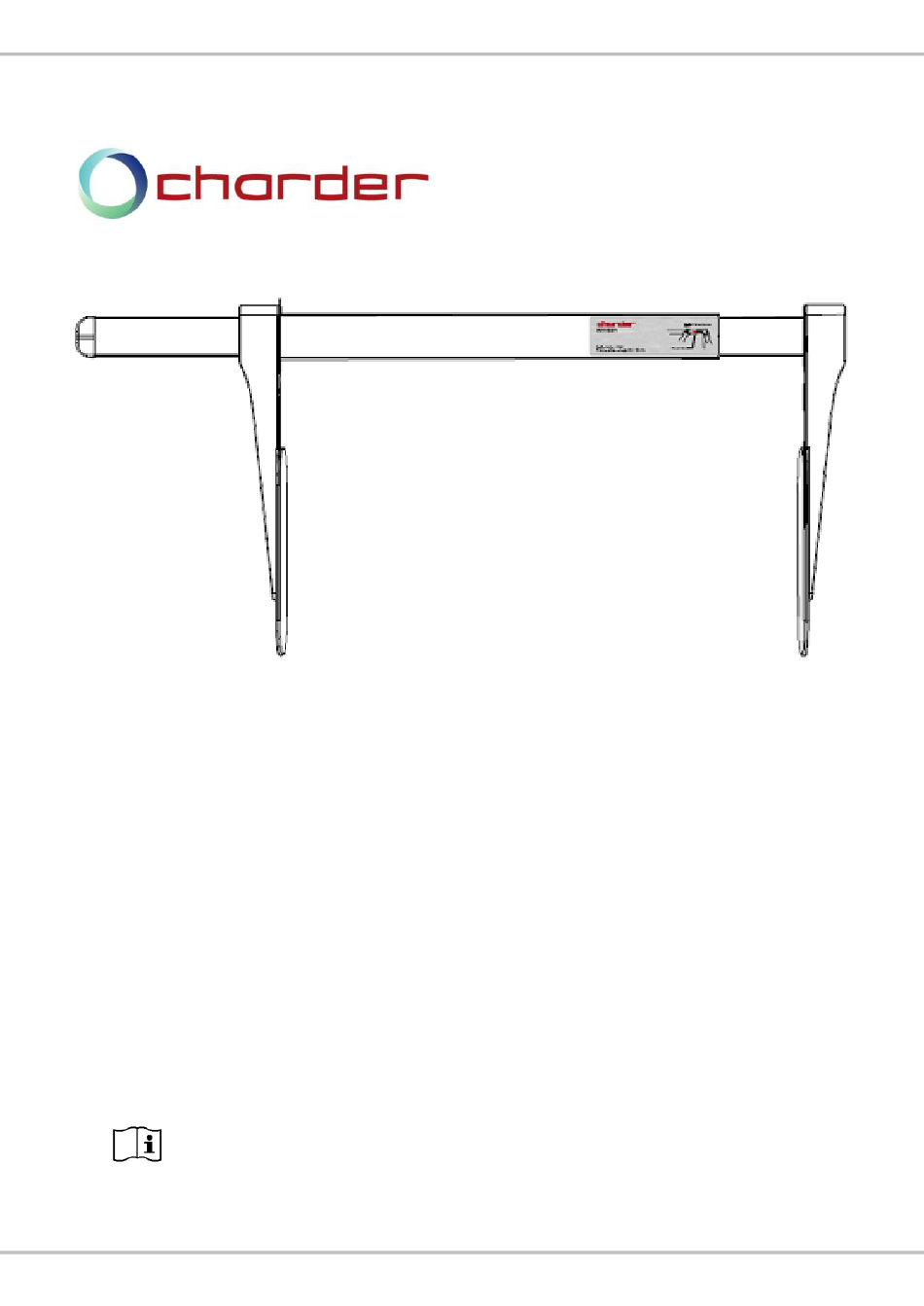

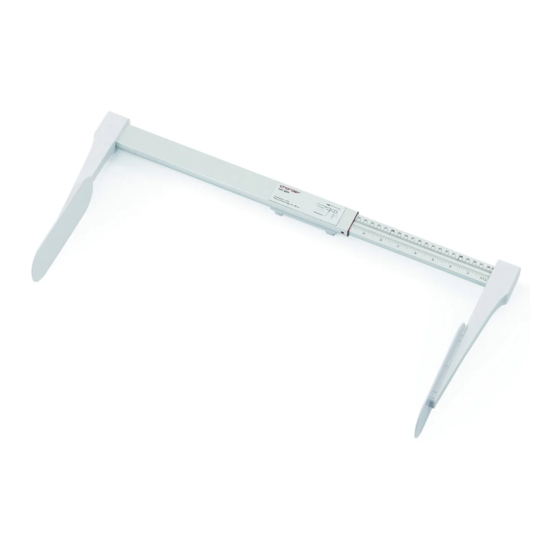

USER MANUAL
HM80M
Portable Height Meter
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM80M and is the answer not in the manual?

Questions and answers

Related Manuals for Charder HM80M

Summary of Contents for Charder HM80M

  • Page 1 USER MANUAL HM80M Portable Height Meter Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Authorized accompanying documents representative in the before use European Community Manufacturer of medical Indicates that device device conforms to Regulation (EU) 2017/745. Four digit number refers to Notified Body. Manufacturing year of Indicates that device is medical device a medical device...
  • Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 A. General Information ............. 5 II. Installation ................7 A. Attaching head stopper ............7 B. Assembly with Infant Scale (removable measurement tray) ..7 C. Assembly with MS5900 Infant Scale ........8 D. Assembly with MS2400 Infant Scale ........11 III.

  • Page 5: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 Warranty/Liability If Charder is responsible for a fault or defect present upon receipt of  the unit, Charder shall either repair the fault, or supply a replacement unit. Should the repairs or replacement delivery fail, statutory provisions shall be valid. The period of warranty shall be two years, beginning on the date of purchase.

  • Page 7: Installation

    A. Attaching head stopper If head stopper is loose, please assemble as seen below: B. Assembly with Infant Scale (removable measurement tray) 1. Attach bracket to tray using bracket screws*2 SS-5611 bracket 2. Slide HM80M onto bracket, and press buckle to secure...

  • Page 8: Assembly With Ms5900 Infant Scale

    C. Assembly with MS5900 Infant Scale 1. Remove bracket holder cover. 2. Attach bracket to device with two screws.
  • Page 9 3. Attach height rod to bracket carefully until a click noise is heard. (HM80D used as example, same procedure for HM80M) 4. Install bracket holder cover.
  • Page 10 5. Disassembling height rod Locate buckle at bottom of height rod. Press down on buckle and slid out height rod.

  • Page 11: Assembly With Ms2400 Infant Scale

    1. Attach bracket to device, and fasten screws using screwdriver. Version with rubber head pad rubber head pad Attach bracket here rubber head pad Version without rubber head pad Attach bracket here 2. Connect height measure attachment (HM80D or HM80M) to bracket. A clicking noise will be heard.
  • Page 12 3. To detach height measure, find the latch located at the rear of the attachment. Press down on the buckle, and gently remove the attachment from bracket.

  • Page 13: Using Device

    III. Using Device A. Performing measurement 1. Lay infant on flat platform, with head touching head stopper. Straighten infant’s feet. 2. Use right hand to push foot stopper until it touches soles of infant's feet. Read measurement result.

  • Page 14: Product Specifications

    1 mm 1/16 in Accuracy ± 10 mm Dimensions Overall 870(W) x 290(D) x 70(H) mm Device 0.5 kg Weight Operation Temperature & 5℃~35℃ Humidity Optional Accessories Bracket set for installation on compatible Charder Infant Scale Standard Accessories User manual x1...
  • Page 15 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...

  • Page 16: Declaration Of Conformity

    93/42/EEC as amended by 2007/47/EC Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 412 Taiwan (R.O.C.) CD-IN-1576 REV XXX 07/2020...
