DMP Electronics 736P Radionics Installation Manual

736P Radionics™ POPIT Interface Module
Description
The Model 736P Radionics™ POPIT Interface Module allows a Radionics™ POPIT System to interface to a DMP panel,
while maintaining the existing Radionics™ wiring.
The 736P is supervised and connects to either the DMP Keypad bus or LX-Bus™ and supports up to 32 Keypad bus
zones and up to 100 LX-Bus zones.
• For XR100 Series, connect directly to the on‑board LX‑Bus.
• For XR500 Series, connect directly to the on‑board LX‑Bus or to an interface card.
• For an XR150/XR350/XR550 Series, connect directly to the LX500 ‑ LX900 connectors on the panel.
All fire device installations must be in accordance with the manufacturer's instructions, NFPA standards, and the
Authority Having Jurisdiction (AHJ) requirements.
Wiring Distance
The maximum wire distance between any 736P and the DMP Keypad bus or LX-Bus circuit is 10 feet. To increase the
wiring distance, install an auxiliary power supply, such as a DMP Model 505‑12. For listed installations, the power
supply must be listed for fire protective signaling systems, regulated, and power limited. Refer to the 710 Bus
Splitter/Repeater Module Installation Guide (LT‑0310) for complete information.
Radionics™ Terminology
The Radionics™ ZONEX (Zone Expansion system) is the zone expansion bus, much like the DMP LX-Bus. A POPEX
(Point Of Protection Expander) is the device that provides the ZONEX, similar to a DMP 481 Zone Expansion Interface
Card that provides an LX-Bus.
The POPIT (Point Of Protection Input Transponder) is a device on the ZONEX that provides a point to connect a
protection device to, much like a DMP 711 Single Point Zone Expander Module. Finally, the OctoPOPIT is a ZONEX
device that provides several points to connect protection devices to, similar to a DMP 714‑8 Zone Expander and a
481 combined. A POPEX is not required when using an OctoPOPIT.
Compatible Radionics™ Devices
The 736P Module supports the following Radionics™ POPEX and OctoPOPIT devices:
• D8125 POPEX Zone Expander
• D8128A OctoPOPIT for 63‑point bus
• D8128C OctoPOPIT for 63‑point or 119‑point bus
Mounting to Walls
The 736P ships installed in a decorative high impact plastic case that mounts directly to walls, backboards or
other flat surfaces. Wire entrances on the case back and front make installation easy. The plastic case bottom half
contains two screw holes for mounting the case on single-gang switch boxes or rings.
Mounting in Panel Enclosures
The 736P Module can also be installed in DMP enclosures using the standard 3-hole
pattern.
1. Mount the plastic standoffs to the enclosure using the three included Phillips head
screws.
2. Insert the screws from the outside of the enclosure through the holes and into the
plastic standoff which mounts on the inside of the enclosure and tighten.
3. After the securing the standoffs onto the enclosure, snap the 736P onto the
standoffs.
INST ALLA TION GUIDE
736P

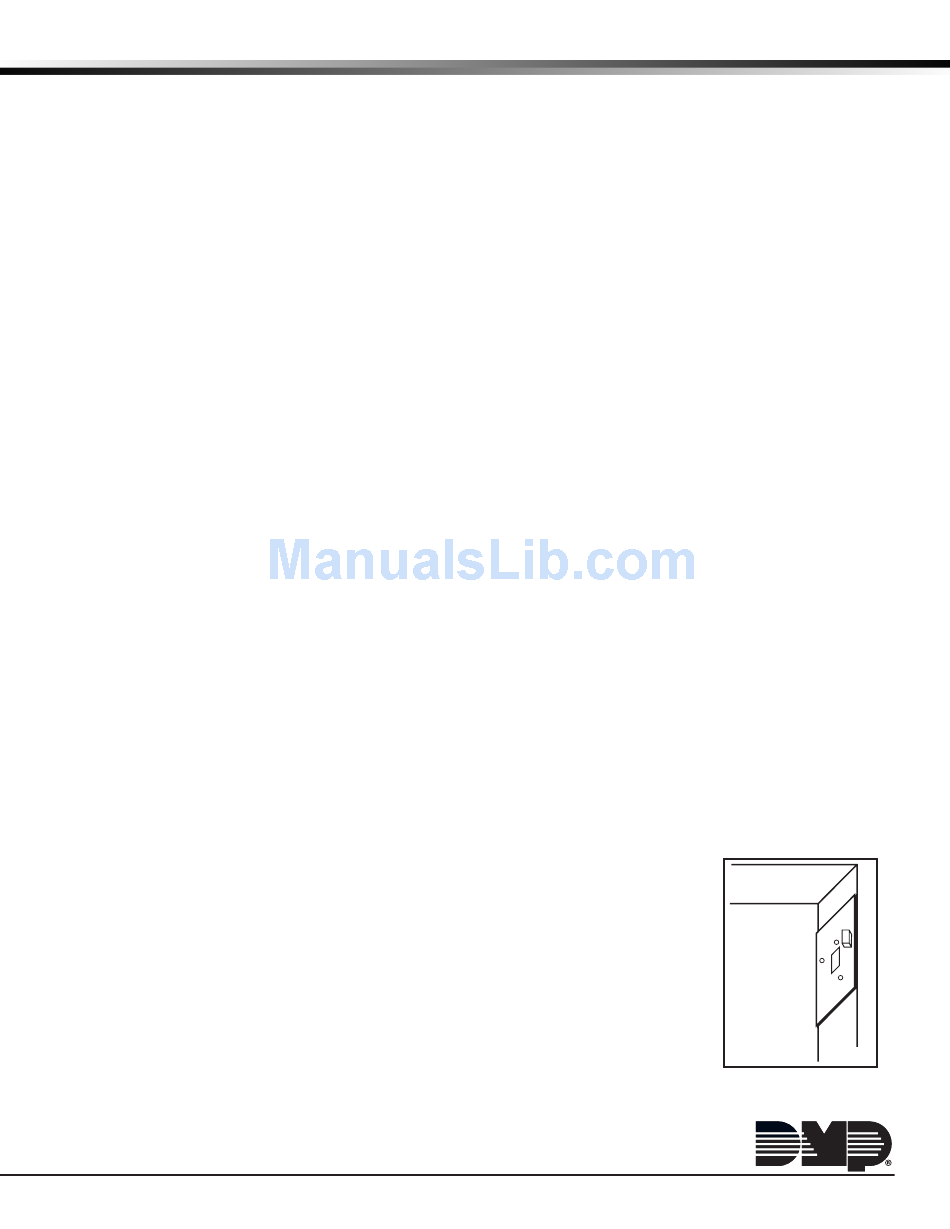

Figure 1: 736P Mounting
