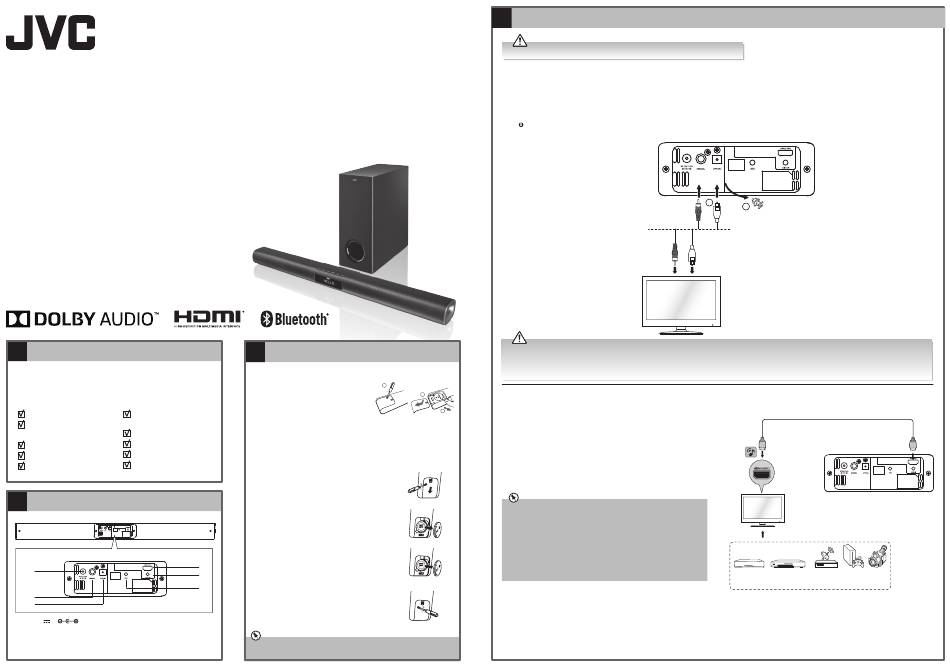

JVC TH-WL515B Quick Start Manual

Quick Start Guide

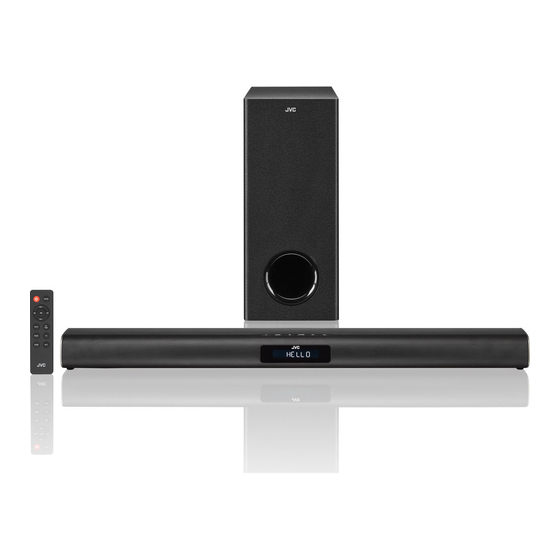

2.1Ch Soundbar with
Subwoofer
TH-WL515B
Thank you
for purchasing your new JVC Soundbar.
We recommend that you spend some time reading this Quick Start
Guide in order that you fully understand how to connect your
Soundbar to your TV.
Use your Soundbar instruction manual and TV instruction manual to
choose the best way to connect your Soundbar and TV together.
•
Unpacking
Remove all packaging from the unit. Retain the packaging. If you
dispose of it please do so according to any local regulations.
To get the most from this product, you may need to buy an
Optical cable.
Main Unit 3.5 mm to 3.5 mm
Stereo Audio Cable
Remote Control
Coaxial Cable
(battery included)
Wall Mount x 2
Subwoofer
Instruction Manual
Adapter for Main Unit
Quick Start Guide
Mains Cable x 2
•
Soundbar Sockets Overview
1
2
3
1. DC 21V 3A Socket 4. HDMI (ARC) Socket
2. COAXIAL Socket 5. LINE IN Socket
3. OPTICAL Socket 6. AUX Socket
•
Operating Your Remote Control
Remove the Plastic Strip from the Remote Control
The unit has a pre-installed
lithium CR2032 battery. Remove
the protective tab to activate the
remote control battery.
Battery Replacement for the Remote Control
The remote control requires a CR2032, 3V Lithium battery.
1. Remove the screw with a screwdriver
and then remove the back cover battery
compartment of the remote control.
2. Remove the old battery.
3. Replace with a new
battery
4
5
6
4. Close the battery compartment cover and
tighten the screw with the screwdriver.
Install the battery correctly in the battery compartment. Normally the
battery's positive polarity (+) will face up.
•
Connecting Your Soundbar to the TV
Ensure the unit is disconnected from the mains socket before connecting it to other devices.
Connecting to the TV
Method 1: Optical / Coaxial Connection
Use an optical cable (not included) / coaxial cable (included) to connect the soundbar's OPTICAL / COAXIAL socket to the OPTICAL OUT /
COAXIAL OUT socket of the external device. The simplest option is to connect your soundbar directly to your TV. If you connect the soundbar
to another external device (e.g. Blu-Ray player), you will hear the sound from that device through the soundbar.
on the unit or remote control and then press SOURCE repeatedly to select Optical or Coaxial mode.
Press
• If there is no sound output, the display will show "PLEASE CHANGE YOUR SOURCE DEVICE TO PCM MODE UNDER AUDIO OUTPUT SETTING". Ensure the
audio setting of the input source (e.g. TV, games console, DVD player, etc.) is set to PCM or Dolby Digital Signal (Refer to the user manual of the input source
device for its audio setting details) with optical / coaxial output.
• Before connecting the optical cable, remove the protective cap of the OPTICAL socket.
1
Method 2: HDMI Hub Connection
2
Using Your TV as a hub
3
The ARC (Audio Return Channel) function allows sound to travel to and
from your ARC-compliant TV to your soundbar through a single HDMI
connection. To enjoy the ARC function, please ensure that your TV is both
HDMI-CEC and ARC compliant and set up accordingly. When correctly set
up, the CEC feature allows you to adjust the volume output (VOL +/– and
MUTE) of the soundbar with the TV remote control. When you switch your
TV on/off with your remote control, you soundbar will also be switched
on/off. Be patient that it might take a few seconds for your TV to tell your
Soundbar to switch on or off.
• Ensure to use an HDMI cables that can support the ARC function.
• HDMI-CEC will be called different names by different manufacturers
– please refer to your owner's manual for details on setting up
HDMI-CEC and ARC.
• While using an HDMI cable for ARC function, CEC (Consumer
Electronics Control) provides interoperability between the unit
and various devices (e.g. TV). However, this unit is not guaranteed
to fully operate with all HDMI-CEC enabled devices. This is NOT a
defect.
Use this method to connect all your devices into your TV.
Connect an HDMI cable (not included) from your soundbar's HDMI (ARC)
socket to the HDMI (ARC) socket on your ARC-compliant TV.
After connection, press SOURCE on the unit or remote control repeatedly to
select TV ARC to play audio from your input device.
Rear View of the Soundbar
2
1
Coaxial cable (included) Optical cable (not included)
TV
TV
Set-top Box Blu-ray Player / DVD
HDMI cable (not included)
Rear View of the Soundbar
Satellite Game Video
Player / Recorder Receiver Console Camera
