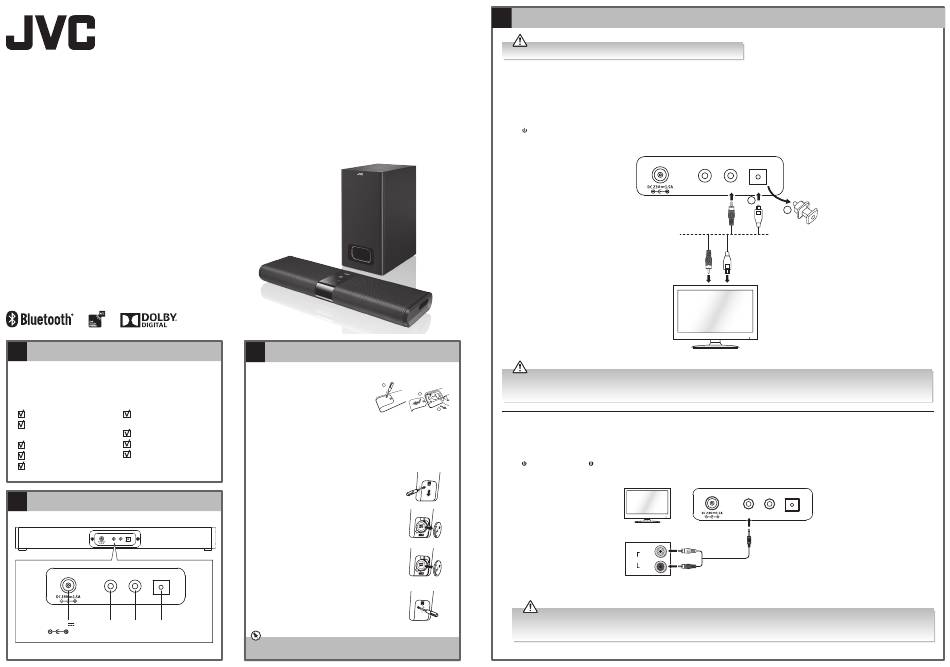

Quick Start Guide
Compact 2.2Ch
Wireless Soundbar
TH-WL315B
Thank you
for purchasing your new JVC Soundbar.
We recommend that you spend some time reading this Quick Start
Guide in order that you fully understand how to connect your
Soundbar to your TV.
Use your Soundbar instruction manual and TV instruction manual to
choose the best way to connect your Soundbar and TV together.
•
Unpacking
Remove all packaging from the unit. Retain the packaging. If you
dispose of it please do so according to any local regulations.
To get the most from this product, you may need to buy an
Optical cable.
Main Unit 3.5mm to 3.5mm
Stereo Audio Cable
Remote Control
Coaxial Cable
(battery included)
Instruction Manual
Subwoofer
Quick Start Guide
Adapter for Main Unit
Mains Cable for Subwoofer
•
Soundbar Sockets Overview
AUX COAXIAL OPTICAL
AUX COAXIAL OPTICAL
DC 23V 1.5A AUX COAXIAL OPTICAL
Socket Socket Socket Socket
•
Operating Your Remote Control
Remove the Plastic Strip from the Remote Control
The unit has a pre-installed
1
lithium CR2032 battery. Remove
2
the protective tab to activate the
remote control battery.
Battery Replacement for the Remote Control
The remote control requires a CR2032, 3V Lithium battery.
1. Remove the screw with a screwdrvier
and then remove the back cover battery
compartment of the remote control.
2. Remove the old battery.
3. Replace with a new
battery
4. Close the battery compartment cover and
tighten the screw with the screwdriver.
Install the battery correctly in the battery compartment. Normally the
battery's positive polarity (+) will face up.
•
Connecting Your Soundbar to the TV
Ensure the unit is disconnected from the mains socket before connecting it to other devices.
Method 1: Connecting to the TV
Method 1: Optical / Coaxial Connection
Use an optical cable (not included) / coaxial cable (included) to connect the soundbar's OPTICAL / COAXIAL socket to the OPTICAL OUT /
COAXIAL OUT socket of the external device. The simplest option is to connect your soundbar directly to your TV. If you connect the soundbar
to another external device (e.g. Blu-Ray player), you will hear the sound from that device through the soundbar.
Touch on the unit or remote control and then press SOURCE repeatedly to select Optical or Coaxial mode.
Coaxial cable (included)
• If there is no sound output, ensure the audio setting of the input source (e.g. TV, games console, DVD player, etc) is set to PCM or Dolby Digital Signal (Refer to
the user manual of the input source device for its audio setting details) with optical / coaxial input.
• Before connecting the optical cable, remove the protective cap of the OPTICAL socket.
3
Method 2: AUX Connection
This is a basic connection for connecting your TV to your soundbar.
Connect a RCA to 3.5mm stereo audio cable (not included) to AUX socket on your soundbar and the AUDIO OUT L / R (white / red) sockets on
your TV.
Touch on the unit or press on the remote control and then press SOURCE repeatedly to select AUX mode.
• Some TVs will have more than one AUDIO L / R sockets, ensure you use the sockets marked OUT. If you don't have an AUDIO OUT socket, this connection
won't allow sound to your soundbar.
• Ensure to match the colours on the cable plugs to the colours on the output sockets.
Rear View of the Soundbar
AUX COAXIAL OPTICAL
2
1
Optical cable (not included)
TV
Rear View of the Soundbar
AUX COAXIAL OPTICAL
TV
L
(WHITE)
AUDIO OUT
RCA stereo audio cable (not included)
R
(RED)
